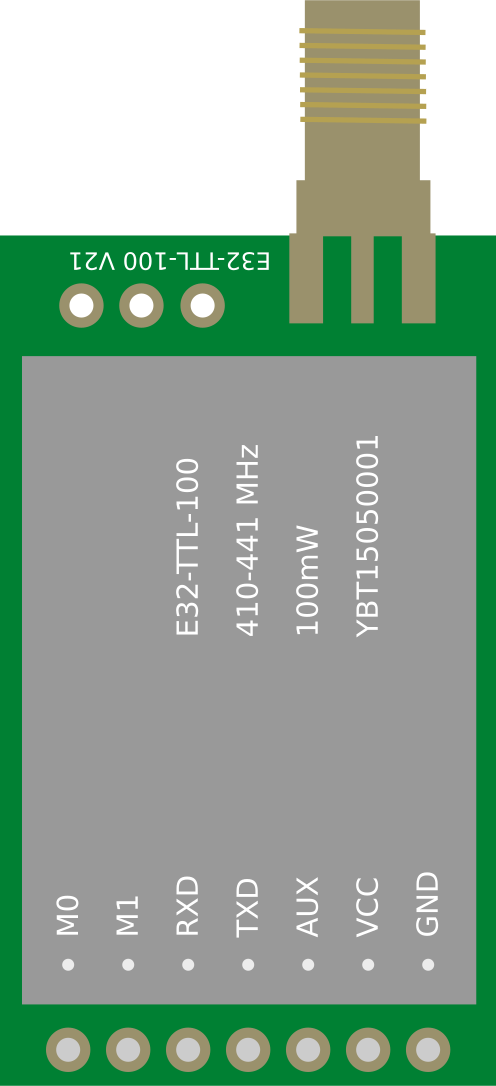

Image of SX1278 LoRa Module
Cirkit Designer LogoDesign with SX1278 LoRa Module in Cirkit Designer

Introduction

The SX1278 LoRa Module is a long-range, low-power wireless communication module that leverages LoRa (Long Range) technology to transmit data over significant distances. It operates in the sub-GHz frequency bands (typically 433 MHz or 868 MHz) and is designed for applications requiring robust, low-power, and long-distance communication. The module is widely used in Internet of Things (IoT) applications, including remote sensing, telemetry, smart agriculture, and industrial automation.

Explore Projects Built with SX1278 LoRa Module

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP8266 and LoRa SX1278 Based Wireless Communication Module
Image of Receiver: A project utilizing SX1278 LoRa Module in a practical application
This circuit integrates a LoRa Ra-02 SX1278 module with an ESP8266 NodeMCU to enable long-range wireless communication. The ESP8266 NodeMCU handles the control and data processing, while the LoRa module provides the capability to transmit and receive data over long distances using LoRa technology.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 and LoRa SX1278 Based Wireless Communication Module
Image of Esp 32 as Receiver or Sender: A project utilizing SX1278 LoRa Module in a practical application
This circuit integrates an ESP32 microcontroller with a LoRa Ra-02 SX1278 module to enable long-range wireless communication. The ESP32 handles the control and data processing, while the LoRa module provides the communication link. The connections include SPI interface and control signals between the ESP32 and the LoRa module, as well as shared power and ground lines.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP8266 NodeMCU with GPS and LoRa Connectivity
Image of Copy of lora based gps traking: A project utilizing SX1278 LoRa Module in a practical application
This circuit comprises an ESP8266 NodeMCU microcontroller interfaced with a LoRa Ra-02 SX1278 module for long-range communication and a GPS NEO 6M module for location tracking. The ESP8266 reads GPS data via UART and transmits it using the LoRa module, which is connected via SPI. A 3.7v battery powers the system, making it suitable for remote tracking applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO and LoRa SX1278 Wireless Communication Module
Image of LoRa_wiring: A project utilizing SX1278 LoRa Module in a practical application
This circuit connects an Arduino UNO with a LoRa Ra-02 SX1278 module to enable long-range communication capabilities. The Arduino is configured to interface with the LoRa module via SPI (Serial Peripheral Interface), using digital pins D13 (SCK), D12 (MISO), D11 (MOSI), and D10 (NSS) for the clock, master-in-slave-out, master-out-slave-in, and slave select functions, respectively. Additional connections include a reset line to D9 and an interrupt line to D4, which are typically used for module reset and interrupt-driven event handling.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with SX1278 LoRa Module

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Receiver: A project utilizing SX1278 LoRa Module in a practical application
ESP8266 and LoRa SX1278 Based Wireless Communication Module
This circuit integrates a LoRa Ra-02 SX1278 module with an ESP8266 NodeMCU to enable long-range wireless communication. The ESP8266 NodeMCU handles the control and data processing, while the LoRa module provides the capability to transmit and receive data over long distances using LoRa technology.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Esp 32 as Receiver or Sender: A project utilizing SX1278 LoRa Module in a practical application
ESP32 and LoRa SX1278 Based Wireless Communication Module
This circuit integrates an ESP32 microcontroller with a LoRa Ra-02 SX1278 module to enable long-range wireless communication. The ESP32 handles the control and data processing, while the LoRa module provides the communication link. The connections include SPI interface and control signals between the ESP32 and the LoRa module, as well as shared power and ground lines.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of lora based gps traking: A project utilizing SX1278 LoRa Module in a practical application
ESP8266 NodeMCU with GPS and LoRa Connectivity
This circuit comprises an ESP8266 NodeMCU microcontroller interfaced with a LoRa Ra-02 SX1278 module for long-range communication and a GPS NEO 6M module for location tracking. The ESP8266 reads GPS data via UART and transmits it using the LoRa module, which is connected via SPI. A 3.7v battery powers the system, making it suitable for remote tracking applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of LoRa_wiring: A project utilizing SX1278 LoRa Module in a practical application
Arduino UNO and LoRa SX1278 Wireless Communication Module
This circuit connects an Arduino UNO with a LoRa Ra-02 SX1278 module to enable long-range communication capabilities. The Arduino is configured to interface with the LoRa module via SPI (Serial Peripheral Interface), using digital pins D13 (SCK), D12 (MISO), D11 (MOSI), and D10 (NSS) for the clock, master-in-slave-out, master-out-slave-in, and slave select functions, respectively. Additional connections include a reset line to D9 and an interrupt line to D4, which are typically used for module reset and interrupt-driven event handling.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Remote monitoring and control systems
  • Smart agriculture (e.g., soil moisture sensors, weather stations)
  • Industrial IoT (e.g., machine monitoring, predictive maintenance)
  • Smart cities (e.g., parking sensors, environmental monitoring)
  • Home automation and security systems

Technical Specifications

Key Technical Details

Parameter Value
Frequency Range 137 MHz to 525 MHz
Modulation Technique LoRa, FSK, GFSK, MSK, GMSK, OOK
Maximum Output Power +20 dBm
Sensitivity -148 dBm
Data Rate 0.018 kbps to 37.5 kbps (LoRa mode)
Supply Voltage 1.8 V to 3.7 V
Operating Current 10.8 mA (transmit mode at +10 dBm)
Sleep Current < 1 µA
Communication Interface SPI
Operating Temperature -40°C to +85°C
Range Up to 15 km (rural), 2-5 km (urban)

Pin Configuration and Descriptions

The SX1278 LoRa Module typically comes with 16 pins. Below is the pinout and description:

Pin Number Pin Name Description
1 GND Ground connection
2 DIO0 Digital I/O pin 0 (used for interrupts)
3 DIO1 Digital I/O pin 1 (used for interrupts)
4 DIO2 Digital I/O pin 2 (used for interrupts)
5 DIO3 Digital I/O pin 3 (used for interrupts)
6 DIO4 Digital I/O pin 4 (used for interrupts)
7 DIO5 Digital I/O pin 5 (used for interrupts)
8 GND Ground connection
9 MISO SPI Master-In-Slave-Out (data output from module)
10 MOSI SPI Master-Out-Slave-In (data input to module)
11 SCK SPI Clock
12 NSS SPI Chip Select (active low)
13 RESET Reset pin (active low)
14 3.3V Power supply (3.3V input)
15 ANT Antenna connection
16 GND Ground connection

Usage Instructions

How to Use the SX1278 LoRa Module in a Circuit

  1. Power Supply: Connect the 3.3V pin to a regulated 3.3V power source and the GND pins to the ground.
  2. SPI Communication: Connect the MISO, MOSI, SCK, and NSS pins to the corresponding SPI pins of your microcontroller.
  3. Antenna: Attach a suitable antenna to the ANT pin for optimal signal transmission and reception.
  4. Interrupts: Use the DIO pins for handling interrupts, depending on your application requirements.
  5. Reset: Connect the RESET pin to a GPIO pin on your microcontroller for resetting the module when needed.

Important Considerations

  • Antenna Selection: Use an antenna tuned to the operating frequency (e.g., 433 MHz or 868 MHz) for maximum range and performance.
  • Power Supply: Ensure a stable 3.3V power supply to avoid communication issues.
  • SPI Configuration: Configure the SPI interface on your microcontroller with the correct settings (e.g., clock polarity and phase).
  • Regulatory Compliance: Ensure compliance with local regulations for operating in the sub-GHz frequency bands.

Example: Connecting SX1278 to Arduino UNO

Below is an example of how to connect the SX1278 module to an Arduino UNO and send data using the LoRa library.

Wiring Diagram

SX1278 Pin Arduino UNO Pin
3.3V 3.3V
GND GND
MISO Pin 12
MOSI Pin 11
SCK Pin 13
NSS Pin 10
RESET Pin 9
DIO0 Pin 2

Arduino Code Example

#include <SPI.h>
#include <LoRa.h>

// Define pins for SX1278
#define NSS 10
#define RESET 9
#define DIO0 2

void setup() {
  // Initialize serial communication
  Serial.begin(9600);
  while (!Serial);

  // Initialize LoRa module
  Serial.println("Initializing LoRa...");
  LoRa.setPins(NSS, RESET, DIO0); // Set SPI pins for SX1278

  if (!LoRa.begin(433E6)) { // Set frequency to 433 MHz
    Serial.println("LoRa initialization failed!");
    while (1);
  }

  Serial.println("LoRa initialized successfully!");
}

void loop() {
  // Send a test message
  Serial.println("Sending packet...");
  LoRa.beginPacket();
  LoRa.print("Hello, LoRa!");
  LoRa.endPacket();

  delay(5000); // Wait 5 seconds before sending the next packet
}

Notes

  • Install the LoRa library in the Arduino IDE before uploading the code.
  • Adjust the frequency in the LoRa.begin() function to match your module's operating frequency.

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Communication Between Devices

    • Ensure both devices are operating on the same frequency and spreading factor.
    • Verify the SPI connections and ensure the correct pin assignments in the code.
  2. Short Communication Range

    • Check the antenna connection and ensure it is tuned to the correct frequency.
    • Avoid obstacles and interference sources between the transmitter and receiver.
  3. Module Not Initializing

    • Verify the power supply voltage (3.3V) and ensure it is stable.
    • Check the RESET pin connection and ensure it is not floating.
  4. High Power Consumption

    • Ensure the module enters sleep mode when not transmitting or receiving.
    • Use a low-power microcontroller to reduce overall power consumption.

FAQs

  1. Can the SX1278 module operate at 5V?

    • No, the SX1278 module requires a 3.3V power supply. Use a level shifter for 5V microcontrollers.
  2. What is the maximum data rate of the SX1278?

    • The maximum data rate in LoRa mode is 37.5 kbps.
  3. Can I use the SX1278 module without an antenna?

    • No, operating the module without an antenna can damage the RF circuitry.
  4. How do I increase the communication range?

    • Use a high-gain antenna, reduce the data rate, and ensure a clear line of sight between devices.

By following this documentation, you can effectively integrate and troubleshoot the SX1278 LoRa Module in your projects.
