How to Use stepdown 24v to 5v: Examples, Pinouts, and Specs

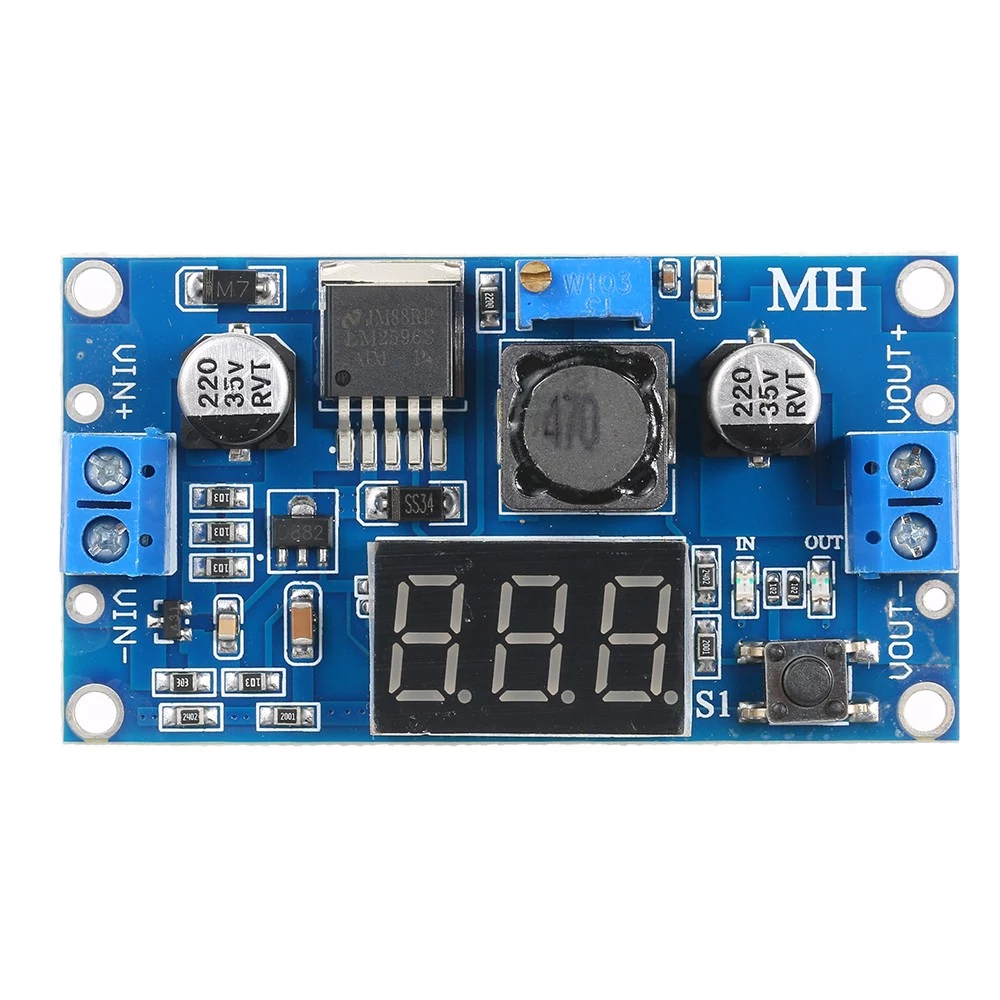

Image of stepdown 24v to 5v
Cirkit Designer LogoDesign with stepdown 24v to 5v in Cirkit Designer

Introduction

A stepdown converter, also known as a buck converter, reduces the voltage from 24 volts to 5 volts, allowing for efficient power supply to devices that require a lower voltage. This component is widely used in electronics to power low-voltage devices from higher-voltage sources, ensuring energy efficiency and stable operation.

Explore Projects Built with stepdown 24v to 5v

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
24V to 5V Power Supply Using 7805 and Bridge Rectifier
Image of evs transmitter: A project utilizing stepdown 24v to 5v in a practical application
This circuit converts a 220V AC input to a regulated 5V DC output. It uses a power transformer to step down the voltage to 24V AC, which is then rectified by a bridge rectifier and regulated by a 7805 voltage regulator.
Cirkit Designer LogoOpen Project in Cirkit Designer
24V to 5V Power Supply with 7805 Voltage Regulator and Bridge Rectifier
Image of convert AC to DC: A project utilizing stepdown 24v to 5v in a practical application
This circuit converts 220V AC to 5V DC using a power transformer, a bridge rectifier, and a 7805 voltage regulator. The transformer steps down the voltage to 24V AC, which is then rectified to DC by the bridge rectifier. The 7805 regulator further stabilizes the output to 5V DC, with additional filtering provided by capacitors and a resistor.
Cirkit Designer LogoOpen Project in Cirkit Designer
LED Array with Push Switch Control and Voltage Regulation
Image of Transformer safty device complete: A project utilizing stepdown 24v to 5v in a practical application
This circuit is a power supply and control system that steps down 220V AC to 24V AC using a transformer, rectifies it to DC using a bridge rectifier, and regulates it to 5V DC. It includes multiple LEDs controlled by push switches and a relay, with a capacitor for smoothing the output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered UPS with Step-Down Buck Converter and BMS
Image of Mini ups: A project utilizing stepdown 24v to 5v in a practical application
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with stepdown 24v to 5v

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of evs transmitter: A project utilizing stepdown 24v to 5v in a practical application
24V to 5V Power Supply Using 7805 and Bridge Rectifier
This circuit converts a 220V AC input to a regulated 5V DC output. It uses a power transformer to step down the voltage to 24V AC, which is then rectified by a bridge rectifier and regulated by a 7805 voltage regulator.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of convert AC to DC: A project utilizing stepdown 24v to 5v in a practical application
24V to 5V Power Supply with 7805 Voltage Regulator and Bridge Rectifier
This circuit converts 220V AC to 5V DC using a power transformer, a bridge rectifier, and a 7805 voltage regulator. The transformer steps down the voltage to 24V AC, which is then rectified to DC by the bridge rectifier. The 7805 regulator further stabilizes the output to 5V DC, with additional filtering provided by capacitors and a resistor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Transformer safty device complete: A project utilizing stepdown 24v to 5v in a practical application
LED Array with Push Switch Control and Voltage Regulation
This circuit is a power supply and control system that steps down 220V AC to 24V AC using a transformer, rectifies it to DC using a bridge rectifier, and regulates it to 5V DC. It includes multiple LEDs controlled by push switches and a relay, with a capacitor for smoothing the output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Mini ups: A project utilizing stepdown 24v to 5v in a practical application
Battery-Powered UPS with Step-Down Buck Converter and BMS
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Powering microcontrollers (e.g., Arduino, Raspberry Pi) from a 24V power source.
  • Supplying 5V to USB-powered devices in industrial or automotive environments.
  • Voltage regulation in battery-powered systems.
  • Powering sensors, relays, and other low-voltage components in automation systems.

Technical Specifications

Below are the key technical details for a typical stepdown 24V to 5V converter:

Parameter Value
Input Voltage Range 6V to 24V
Output Voltage 5V ± 0.1V
Maximum Output Current 3A (varies by model)
Efficiency Up to 95%
Switching Frequency 150 kHz to 300 kHz
Operating Temperature -40°C to +85°C
Protection Features Overcurrent, Overtemperature,
and Short-Circuit Protection

Pin Configuration and Descriptions

The stepdown converter typically has the following pin configuration:

Pin Name Description
VIN Input voltage pin (connect to 24V source).
GND Ground pin (common ground for input/output).
VOUT Output voltage pin (provides 5V output).
EN (optional) Enable pin (used to turn the module on/off).

Usage Instructions

How to Use the Component in a Circuit

  1. Connect the Input Voltage (VIN):
    Attach the VIN pin to a 24V DC power source. Ensure the input voltage is within the specified range (6V to 24V).

  2. Connect the Ground (GND):
    Connect the GND pin to the ground of your circuit. This serves as the common reference point for both input and output.

  3. Connect the Output Voltage (VOUT):
    Attach the VOUT pin to the device or circuit requiring 5V. Verify that the connected load does not exceed the maximum output current rating.

  4. Optional Enable Pin (EN):
    If the module includes an EN pin, connect it to a logic HIGH (e.g., 5V) to enable the converter. Pulling it LOW (e.g., GND) disables the output.

Important Considerations and Best Practices

  • Heat Dissipation: Ensure proper ventilation or heat sinking if the converter operates near its maximum current rating.
  • Input Voltage Range: Do not exceed the maximum input voltage (24V) to avoid damaging the module.
  • Load Requirements: Verify that the connected load does not draw more current than the converter's maximum output rating.
  • Filtering Capacitors: For improved stability, consider adding input and output capacitors (e.g., 100 µF electrolytic capacitors) close to the module.

Example: Connecting to an Arduino UNO

To power an Arduino UNO using a stepdown converter, follow these steps:

  1. Connect the VIN pin of the converter to a 24V DC power source.
  2. Connect the GND pin of the converter to the ground of the power source and the Arduino.
  3. Connect the VOUT pin of the converter to the 5V pin of the Arduino UNO.

Sample Arduino Code

If you are using the enable (EN) pin to control the converter, you can use the following code to toggle the converter on and off:

// Define the enable pin for the stepdown converter
const int enablePin = 7;

void setup() {
  pinMode(enablePin, OUTPUT); // Set the enable pin as an output
  digitalWrite(enablePin, HIGH); // Turn on the stepdown converter
}

void loop() {
  // Example: Toggle the converter every 5 seconds
  digitalWrite(enablePin, LOW); // Turn off the converter
  delay(5000); // Wait for 5 seconds
  digitalWrite(enablePin, HIGH); // Turn on the converter
  delay(5000); // Wait for 5 seconds
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Cause: The input voltage is too low or disconnected.

    • Solution: Verify that the input voltage is within the specified range (6V to 24V).

    • Cause: The enable pin (EN) is not connected or set to LOW.

    • Solution: Connect the EN pin to a logic HIGH (e.g., 5V) or check the module's datasheet for default behavior.

  2. Overheating:

    • Cause: The load is drawing more current than the converter's maximum rating.
    • Solution: Reduce the load or use a converter with a higher current rating. Ensure proper heat dissipation.
  3. Output Voltage Fluctuations:

    • Cause: Insufficient filtering or unstable input voltage.
    • Solution: Add input and output capacitors (e.g., 100 µF electrolytic capacitors) close to the module.
  4. Short Circuit Protection Triggered:

    • Cause: A short circuit occurred on the output.
    • Solution: Disconnect the load, check for shorts, and reconnect after resolving the issue.

FAQs

Q: Can I use this converter to power a USB device?
A: Yes, as long as the device requires 5V and the current draw does not exceed the converter's maximum output rating.

Q: Is the output voltage adjustable?
A: Some stepdown converters include a potentiometer for adjusting the output voltage. Check your specific model's datasheet.

Q: Can I use this converter with an AC power source?
A: No, this converter is designed for DC input only. Use a rectifier and filter circuit to convert AC to DC before connecting.

Q: What happens if I exceed the input voltage range?
A: Exceeding the input voltage range can permanently damage the converter. Always ensure the input voltage is within the specified range.
