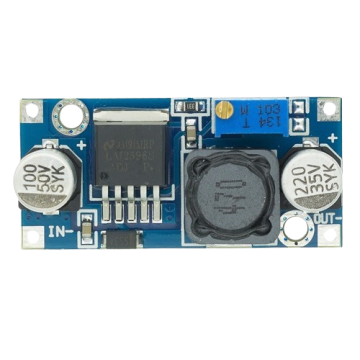

Image of step down
Cirkit Designer LogoDesign with step down in Cirkit Designer

Introduction

A step down converter, also known as a buck converter, is a type of DC-DC converter that reduces voltage from a higher level to a lower level while increasing current. It is widely used in electronic circuits to power devices that require a lower voltage than the input supply. The step down converter is highly efficient and is commonly found in battery-powered devices, power supplies, and embedded systems.

Explore Projects Built with step down

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered UPS with Step-Down Buck Converter and BMS
Image of Mini ups: A project utilizing step down in a practical application
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
USB Power Supply with Overcurrent Protection
Image of USB Charging port: A project utilizing step down in a practical application
This circuit is designed to step down voltage from a 12V battery to a lower voltage suitable for USB devices. It includes a buck converter connected to the battery through a fuse and fuse holder for overcurrent protection. The output of the buck converter is connected to a USB female port, providing a regulated power supply for USB-powered devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560-Based Robotic System with Stepper Motors and IR Sensors
Image of FYP: A project utilizing step down in a practical application
This circuit is a control system powered by a 12V to 5V step-down converter, featuring an Arduino Mega 2560 microcontroller that interfaces with various sensors (IR sensors, limit switch), actuators (servos, stepper motors), and a 20x4 LCD display. The system is designed to monitor inputs from sensors and control outputs to motors and display information, suitable for applications like automation or robotics.
Cirkit Designer LogoOpen Project in Cirkit Designer
AC to DC Power Supply with Transformer and Bridge Rectifier
Image of BRIDGE RECTIFIER: A project utilizing step down in a practical application
This circuit is a basic AC to DC power supply that steps down 220V AC to a lower voltage using a transformer, rectifies it to DC using a bridge rectifier made of diodes, and smooths the output with an electrolytic capacitor. A rocker switch is used to turn the power supply on and off.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with step down

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Mini ups: A project utilizing step down in a practical application
Battery-Powered UPS with Step-Down Buck Converter and BMS
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of USB Charging port: A project utilizing step down in a practical application
USB Power Supply with Overcurrent Protection
This circuit is designed to step down voltage from a 12V battery to a lower voltage suitable for USB devices. It includes a buck converter connected to the battery through a fuse and fuse holder for overcurrent protection. The output of the buck converter is connected to a USB female port, providing a regulated power supply for USB-powered devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of FYP: A project utilizing step down in a practical application
Arduino Mega 2560-Based Robotic System with Stepper Motors and IR Sensors
This circuit is a control system powered by a 12V to 5V step-down converter, featuring an Arduino Mega 2560 microcontroller that interfaces with various sensors (IR sensors, limit switch), actuators (servos, stepper motors), and a 20x4 LCD display. The system is designed to monitor inputs from sensors and control outputs to motors and display information, suitable for applications like automation or robotics.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of BRIDGE RECTIFIER: A project utilizing step down in a practical application
AC to DC Power Supply with Transformer and Bridge Rectifier
This circuit is a basic AC to DC power supply that steps down 220V AC to a lower voltage using a transformer, rectifies it to DC using a bridge rectifier made of diodes, and smooths the output with an electrolytic capacitor. A rocker switch is used to turn the power supply on and off.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Powering microcontrollers and sensors from higher voltage sources
  • Voltage regulation in battery-powered devices
  • Powering LEDs and other low-voltage components
  • Used in automotive electronics to step down 12V to 5V or 3.3V
  • Portable chargers and USB power supplies

Technical Specifications

Below are the general technical specifications for a typical step down converter. Specific values may vary depending on the model.

Key Technical Details

  • Input Voltage Range: 4.5V to 40V (varies by model)
  • Output Voltage Range: 1.2V to 37V (adjustable in most models)
  • Output Current: Up to 3A (depending on the design)
  • Efficiency: Up to 95% (depending on load and input/output voltage)
  • Switching Frequency: 150 kHz to 1 MHz
  • Operating Temperature: -40°C to +85°C

Pin Configuration and Descriptions

The pin configuration for a common step down converter module (e.g., LM2596-based) is as follows:

Pin Name Description
VIN Input voltage pin. Connect the higher voltage source here.
VOUT Output voltage pin. Provides the stepped-down voltage to the load.
GND Ground pin. Connect to the ground of the input and output circuits.
ADJ (optional) Adjustment pin. Used to set the output voltage (in adjustable models).

Usage Instructions

How to Use the Component in a Circuit

  1. Connect the Input Voltage:
    • Connect the positive terminal of the input voltage source to the VIN pin.
    • Connect the negative terminal of the input voltage source to the GND pin.
  2. Connect the Load:
    • Connect the positive terminal of the load to the VOUT pin.
    • Connect the negative terminal of the load to the GND pin.
  3. Adjust the Output Voltage (if applicable):
    • For adjustable step down converters, use a small screwdriver to turn the potentiometer.
    • Measure the output voltage with a multimeter and adjust until the desired voltage is achieved.
  4. Power On:
    • Turn on the input voltage source and verify the output voltage.

Important Considerations and Best Practices

  • Ensure the input voltage is within the specified range of the step down converter.
  • Do not exceed the maximum output current rating to avoid overheating or damage.
  • Use appropriate heat sinks or cooling mechanisms if the converter operates at high currents.
  • Place decoupling capacitors near the input and output pins to reduce noise and improve stability.
  • Double-check the polarity of connections to avoid damaging the module.

Example: Using a Step Down Converter with Arduino UNO

To power an Arduino UNO from a 12V source using a step down converter:

  1. Set the output voltage of the step down converter to 5V.
  2. Connect the VIN pin of the step down converter to the 12V source.
  3. Connect the VOUT pin of the step down converter to the 5V pin of the Arduino UNO.
  4. Connect the GND pin of the step down converter to the GND pin of the Arduino UNO.

Here is an example Arduino code to blink an LED while powered by the step down converter:

// Blink an LED connected to pin 13 of the Arduino UNO
void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Check the input voltage and ensure it is within the specified range.
    • Verify all connections, especially the polarity of the input and output.
    • Ensure the load is properly connected and not drawing excessive current.
  2. Overheating:

    • Ensure the output current does not exceed the maximum rating.
    • Use a heat sink or active cooling if necessary.
    • Check for short circuits in the load or wiring.
  3. Output Voltage Fluctuations:

    • Add decoupling capacitors (e.g., 10µF and 0.1µF) near the input and output pins.
    • Verify that the input voltage is stable and not fluctuating.
  4. Cannot Adjust Output Voltage:

    • Ensure the potentiometer is functional and not damaged.
    • Verify that the adjustment pin (ADJ) is properly connected in adjustable models.

FAQs

Q: Can I use a step down converter to power a Raspberry Pi?
A: Yes, you can use a step down converter to provide the required 5V to power a Raspberry Pi. Ensure the converter can supply at least 2.5A for stable operation.

Q: What happens if I reverse the input polarity?
A: Most step down converters do not have reverse polarity protection. Reversing the input polarity can damage the module. Always double-check connections before powering on.

Q: Can I use a step down converter with an AC input?
A: No, step down converters are designed for DC input only. Use a rectifier and filter circuit to convert AC to DC before using the step down converter.

Q: How do I calculate the efficiency of the step down converter?
A: Efficiency can be calculated using the formula:
[ \text{Efficiency} (%) = \left( \frac{\text{Output Power}}{\text{Input Power}} \right) \times 100 ]
Measure the input and output voltage and current to calculate power.

By following this documentation, you can effectively use a step down converter in your projects while avoiding common pitfalls.
