How to Use 74LVC138AD: Examples, Pinouts, and Specs

The 74LVC138AD is a low-voltage, high-speed 3-to-8 line decoder/demultiplexer. It takes three binary inputs (A, B, and C) and activates one of the eight outputs (Y0 to Y7) based on the input combination. The device also features three enable inputs (G1, G2A, and G2B), which allow for flexible control of the decoding operation. The outputs are active low, meaning the selected output will be pulled low while the others remain high.

This component is widely used in digital circuits for:

• Address decoding in memory systems
• Data routing in multiplexing/demultiplexing applications
• Logic signal decoding in microcontroller-based systems

The 74LVC138AD is designed for high-speed operation and low power consumption. Below are its key technical details:

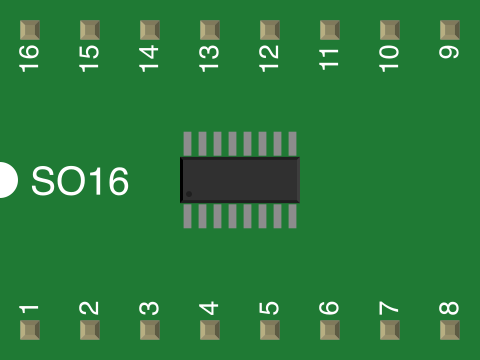

The 74LVC138AD comes in a 16-pin SOIC package. The pinout and descriptions are as follows:

1. Power Supply: Connect the Vcc pin to a supply voltage between 1.65 V and 3.6 V, and the GND pin to ground.
2. Enable Inputs:
   • G1 must be set high (logic 1) to enable the decoder.
   • Both G2A and G2B must be set low (logic 0) to enable the decoder.
3. Address Inputs: Provide a 3-bit binary input (A, B, C) to select one of the eight outputs.
4. Outputs: The selected output (Y0 to Y7) will be pulled low (active low), while the others remain high.

Below is an example of how to connect the 74LVC138AD to an Arduino UNO for address decoding:

// Arduino UNO example for controlling the 74LVC138AD
// Connect the 74LVC138AD pins as follows:
// A -> Pin 2, B -> Pin 3, C -> Pin 4
// G1 -> Pin 5 (HIGH), G2A -> GND, G2B -> GND
// Y0 to Y7 can be connected to LEDs or other devices

const int pinA = 2; // Address input A
const int pinB = 3; // Address input B
const int pinC = 4; // Address input C

void setup() {
  // Set address pins as outputs
  pinMode(pinA, OUTPUT);
  pinMode(pinB, OUTPUT);
  pinMode(pinC, OUTPUT);
}

void loop() {
  // Example: Cycle through all outputs (Y0 to Y7)
  for (int i = 0; i < 8; i++) {
    digitalWrite(pinA, i & 0x01); // Set LSB (A)
    digitalWrite(pinB, (i >> 1) & 0x01); // Set middle bit (B)
    digitalWrite(pinC, (i >> 2) & 0x01); // Set MSB (C)
    delay(500); // Wait 500 ms before changing output
  }
}

• Ensure that the enable inputs (G1, G2A, G2B) are correctly configured to avoid unexpected behavior.
• Use pull-up or pull-down resistors on unused inputs to prevent floating states.
• Avoid exceeding the maximum output current of ±24 mA to prevent damage to the device.

1. No Output Activation:

   • Verify that G1 is high and both G2A and G2B are low.
   • Check the power supply connections (Vcc and GND).
   • Ensure the address inputs (A, B, C) are receiving valid logic levels.

2. Incorrect Output Activation:

   • Confirm that the address inputs are correctly wired and not floating.
   • Check for short circuits or incorrect connections on the output pins.

3. Device Overheating:

   • Ensure the output current does not exceed the maximum rating of ±24 mA.
   • Verify that the supply voltage is within the specified range (1.65 V to 3.6 V).

Q: Can the 74LVC138AD operate at 5 V?
A: No, the maximum supply voltage for the 74LVC138AD is 3.6 V. Operating it at 5 V may damage the device.

Q: What happens if multiple enable inputs are active simultaneously?
A: The decoder will only function correctly if G1 is high and both G2A and G2B are low. Any other combination will disable the outputs.

Q: Can I use the 74LVC138AD for driving LEDs directly?
A: Yes, but ensure that the current through each output does not exceed ±24 mA. Use current-limiting resistors for the LEDs.
