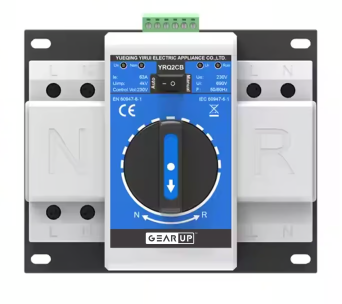

Image of ATS
Cirkit Designer LogoDesign with ATS in Cirkit Designer

Introduction

An Automatic Transfer Switch (ATS) is a critical device used in power management systems. It automatically transfers a power load between two power sources, typically switching between utility power and a backup generator. This ensures an uninterrupted power supply during outages or power failures. ATS devices are widely used in residential, commercial, and industrial applications where continuous power is essential.
