How to Use LCD I2C 16x2: Examples, Pinouts, and Specs

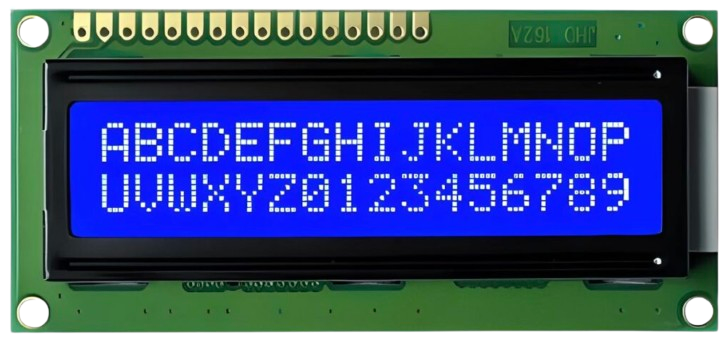

The LCD I2C 16x2 is a 16-character by 2-line Liquid Crystal Display module that utilizes I2C (Inter-Integrated Circuit) communication. This module simplifies the connection process by reducing the number of pins required to interface with microcontrollers, making it ideal for projects with limited GPIO availability. It is widely used for displaying text, numbers, and simple symbols in embedded systems and DIY electronics projects.

• Microcontroller-based projects (e.g., Arduino, Raspberry Pi)
• Home automation systems
• Industrial control panels
• Educational and prototyping purposes
• IoT devices requiring a simple user interface

• Display Type: 16x2 character LCD
• Communication Protocol: I2C
• Operating Voltage: 5V DC
• Backlight: LED (usually white or blue)
• Contrast Adjustment: Via onboard potentiometer
• I2C Address: Typically 0x27 or 0x3F (configurable)
• Current Consumption: ~20mA (with backlight on)
• Dimensions: 80mm x 36mm x 12mm (approx.)

The LCD I2C 16x2 module has a 4-pin interface for I2C communication. Below is the pinout:

1. Wiring the LCD I2C 16x2:

   • Connect the GND pin to the ground of your microcontroller.
   • Connect the VCC pin to the 5V power supply of your microcontroller.
   • Connect the SDA pin to the I2C data pin of your microcontroller (e.g., A4 on Arduino UNO).
   • Connect the SCL pin to the I2C clock pin of your microcontroller (e.g., A5 on Arduino UNO).

2. Install Required Libraries:

   • For Arduino, install the LiquidCrystal_I2C library from the Arduino Library Manager.

3. Write and Upload Code:

   • Use the example code below to display text on the LCD.

#include <Wire.h>                // Include the Wire library for I2C communication
#include <LiquidCrystal_I2C.h>   // Include the LiquidCrystal_I2C library

// Initialize the LCD with I2C address 0x27 and 16x2 dimensions
LiquidCrystal_I2C lcd(0x27, 16, 2);

void setup() {
  lcd.begin();                   // Initialize the LCD
  lcd.backlight();               // Turn on the backlight
  lcd.setCursor(0, 0);           // Set cursor to the first row, first column
  lcd.print("Hello, World!");    // Print text on the first row
  lcd.setCursor(0, 1);           // Set cursor to the second row, first column
  lcd.print("LCD I2C 16x2");     // Print text on the second row
}

void loop() {
  // No actions in the loop for this example
}

• I2C Address: Ensure the correct I2C address (e.g., 0x27 or 0x3F) is used in your code. If unsure, use an I2C scanner sketch to detect the address.
• Power Supply: Use a stable 5V power source to avoid flickering or malfunction.
• Contrast Adjustment: If the text is not visible, adjust the contrast using the onboard potentiometer.
• Pull-Up Resistors: Some I2C modules may require external pull-up resistors on the SDA and SCL lines. Check your module's datasheet.

1. No Display or Backlight:

   • Verify the wiring connections.
   • Ensure the power supply is 5V and stable.
   • Check if the backlight is enabled in the code (lcd.backlight()).

2. Incorrect or No Text Displayed:

   • Confirm the correct I2C address is used in the code.
   • Use an I2C scanner sketch to detect the module's address.
   • Ensure the LiquidCrystal_I2C library is installed and up to date.

3. Flickering or Unstable Display:

   • Check for loose connections or poor soldering.
   • Ensure the power supply can provide sufficient current.

4. Text Not Visible:

   • Adjust the contrast using the onboard potentiometer.

Q1: How do I find the I2C address of my LCD module?
A1: Use an I2C scanner sketch to detect the address. Upload the sketch to your microcontroller, and it will print the detected address in the Serial Monitor.

Q2: Can I use this module with a 3.3V microcontroller?
A2: While the module is designed for 5V, some may work with 3.3V logic. However, check the datasheet or use a logic level shifter for compatibility.

Q3: Can I connect multiple I2C devices to the same microcontroller?
A3: Yes, as long as each device has a unique I2C address. Use an I2C multiplexer if address conflicts occur.

Q4: What is the maximum cable length for I2C communication?
A4: The maximum length depends on the pull-up resistors and communication speed but is typically limited to 1 meter for reliable operation.
