How to Use ESP32 DevKitC: Examples, Pinouts, and Specs

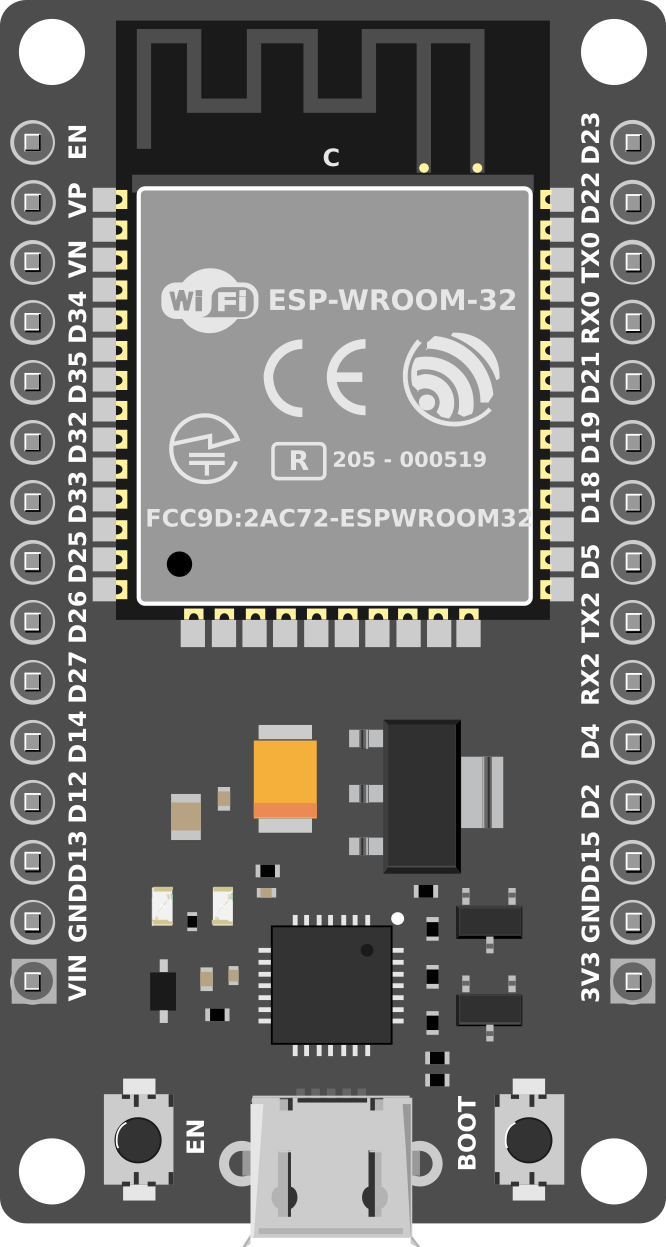

Image of ESP32 DevKitC
Cirkit Designer LogoDesign with ESP32 DevKitC in Cirkit Designer

Introduction

The ESP32 DevKitC is a versatile development board built around the ESP32 chip, which integrates Wi-Fi and Bluetooth capabilities. This board is widely used in Internet of Things (IoT) applications, home automation, wearable devices, and rapid prototyping. Its compact design, powerful processing capabilities, and extensive connectivity options make it a popular choice for developers and hobbyists alike.
