How to Use raspberry pi: Examples, Pinouts, and Specs

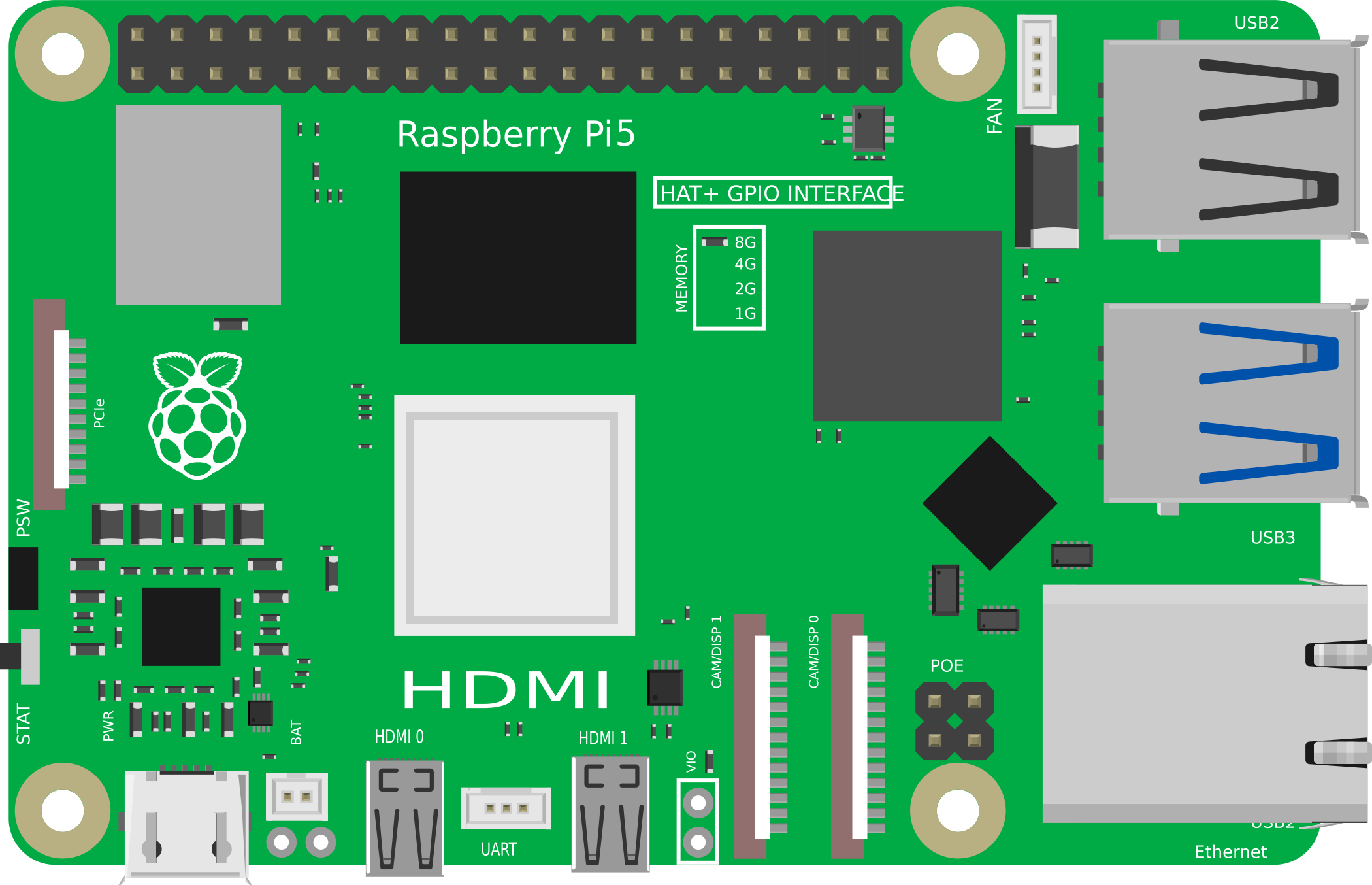

Image of raspberry pi
Cirkit Designer LogoDesign with raspberry pi in Cirkit Designer

Introduction

The Raspberry Pi is a small, affordable single-board computer designed for a wide range of applications, including programming, electronics, and Internet of Things (IoT) projects. It is widely used in education, prototyping, and hobbyist projects due to its versatility, low cost, and extensive community support. The Raspberry Pi can run a variety of operating systems, with Raspberry Pi OS (formerly Raspbian) being the most popular.

Common applications of the Raspberry Pi include:

  • Learning programming and computer science
  • Building IoT devices and smart home systems
  • Media centers and streaming devices
  • Robotics and automation projects
  • Network servers and security systems

Explore Projects Built with raspberry pi

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Raspberry Pi 5 Smart Weather Station with GPS and AI Integration
Image of Senior Design: A project utilizing raspberry pi in a practical application
This circuit integrates a Raspberry Pi 5 with various peripherals including an 8MP 3D stereo camera, an AI Hat, a BMP388 sensor, a 16x2 I2C LCD, and an Adafruit Ultimate GPS module. The Raspberry Pi serves as the central processing unit, interfacing with the camera for image capture, the AI Hat for AI processing, the BMP388 for environmental sensing, the LCD for display, and the GPS module for location tracking, with a USB Serial TTL for serial communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 4B-Based Smart Surveillance System with GPS and Ultrasonic Sensing
Image of VisionTool: A project utilizing raspberry pi in a practical application
This circuit features a Raspberry Pi 4B as the central processing unit, interfacing with an Arducam camera module, an HC-SR04 ultrasonic sensor, a GPS NEO 6M module, and a speaker. The Raspberry Pi manages image capture, distance measurement, GPS data reception, and audio output. Power is supplied to the components from a 2000mAh battery, and the Raspberry Pi facilitates communication and control over the I2C, GPIO, and serial interfaces.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 5 RFID Access Control System with LCD Feedback and Dual Motor Control
Image of SpeedyPiMVP: A project utilizing raspberry pi in a practical application
This circuit features a Raspberry Pi 5 as the central controller, interfaced with an RFID-RC522 module for RFID reading capabilities and a 16x2 LCD display for output visualization. The Raspberry Pi controls two DC motors via an L293D motor driver, with speed or direction potentially adjusted by a trimmer potentiometer. Power regulation is managed by an XL6009 voltage regulator, and multiple 9V batteries are used to supply power to the system.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 4B-Based Current Monitoring System with I2C OLED Display
Image of Virtual Energy Monitoring Circuit: A project utilizing raspberry pi in a practical application
This circuit features a Raspberry Pi 4B as the central processing unit, interfaced with an Adafruit ADS1115 16-bit I2C ADC for analog-to-digital conversion and a 0.96" OLED display for visual output. The ADS1115 is connected to a current sensor for measuring electrical current, with the sensor's output and burden pins connected to the ADC's analog input channels. The Raspberry Pi communicates with both the ADC and the OLED display over the I2C bus, using its GPIO2 and GPIO3 pins for data (SDA) and clock (SCL) lines, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with raspberry pi

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Senior Design: A project utilizing raspberry pi in a practical application
Raspberry Pi 5 Smart Weather Station with GPS and AI Integration
This circuit integrates a Raspberry Pi 5 with various peripherals including an 8MP 3D stereo camera, an AI Hat, a BMP388 sensor, a 16x2 I2C LCD, and an Adafruit Ultimate GPS module. The Raspberry Pi serves as the central processing unit, interfacing with the camera for image capture, the AI Hat for AI processing, the BMP388 for environmental sensing, the LCD for display, and the GPS module for location tracking, with a USB Serial TTL for serial communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of VisionTool: A project utilizing raspberry pi in a practical application
Raspberry Pi 4B-Based Smart Surveillance System with GPS and Ultrasonic Sensing
This circuit features a Raspberry Pi 4B as the central processing unit, interfacing with an Arducam camera module, an HC-SR04 ultrasonic sensor, a GPS NEO 6M module, and a speaker. The Raspberry Pi manages image capture, distance measurement, GPS data reception, and audio output. Power is supplied to the components from a 2000mAh battery, and the Raspberry Pi facilitates communication and control over the I2C, GPIO, and serial interfaces.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of SpeedyPiMVP: A project utilizing raspberry pi in a practical application
Raspberry Pi 5 RFID Access Control System with LCD Feedback and Dual Motor Control
This circuit features a Raspberry Pi 5 as the central controller, interfaced with an RFID-RC522 module for RFID reading capabilities and a 16x2 LCD display for output visualization. The Raspberry Pi controls two DC motors via an L293D motor driver, with speed or direction potentially adjusted by a trimmer potentiometer. Power regulation is managed by an XL6009 voltage regulator, and multiple 9V batteries are used to supply power to the system.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Virtual Energy Monitoring Circuit: A project utilizing raspberry pi in a practical application
Raspberry Pi 4B-Based Current Monitoring System with I2C OLED Display
This circuit features a Raspberry Pi 4B as the central processing unit, interfaced with an Adafruit ADS1115 16-bit I2C ADC for analog-to-digital conversion and a 0.96" OLED display for visual output. The ADS1115 is connected to a current sensor for measuring electrical current, with the sensor's output and burden pins connected to the ADC's analog input channels. The Raspberry Pi communicates with both the ADC and the OLED display over the I2C bus, using its GPIO2 and GPIO3 pins for data (SDA) and clock (SCL) lines, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

The Raspberry Pi comes in various models, such as the Raspberry Pi 4 Model B, Raspberry Pi 3 Model B+, and Raspberry Pi Zero. Below are the general technical specifications for the Raspberry Pi 4 Model B, one of the most popular models:

Key Technical Details

Specification Details
Processor Quad-core ARM Cortex-A72, 64-bit, 1.5 GHz
RAM 2 GB, 4 GB, or 8 GB LPDDR4 (depending on the model)
Storage MicroSD card slot for OS and data storage
USB Ports 2 × USB 3.0, 2 × USB 2.0
HDMI Ports 2 × Micro HDMI (supports up to 4K resolution)
Networking Gigabit Ethernet, 802.11ac Wi-Fi, Bluetooth 5.0
GPIO Pins 40-pin header (3.3V logic, supports I2C, SPI, UART, and more)
Power Supply 5V/3A via USB-C
Dimensions 85.6 mm × 56.5 mm × 17 mm

GPIO Pin Configuration

The Raspberry Pi features a 40-pin General Purpose Input/Output (GPIO) header. Below is a table summarizing the pin configuration:

Pin Number Pin Name Description
1 3.3V Power 3.3V power supply
2 5V Power 5V power supply
3 GPIO2 (SDA1) I2C Data
4 5V Power 5V power supply
5 GPIO3 (SCL1) I2C Clock
6 Ground Ground
7 GPIO4 General-purpose I/O
8 GPIO14 (TXD) UART Transmit
9 Ground Ground
10 GPIO15 (RXD) UART Receive
... ... ...
39 Ground Ground
40 GPIO21 General-purpose I/O

For a complete GPIO pinout, refer to the official Raspberry Pi documentation.

Usage Instructions

How to Use the Raspberry Pi in a Circuit

  1. Powering the Raspberry Pi: Use a 5V/3A USB-C power supply to power the Raspberry Pi. Ensure the power supply is reliable to avoid voltage drops.
  2. Connecting Peripherals: Attach a monitor via the micro HDMI port, a keyboard and mouse via USB, and a microSD card with the operating system installed.
  3. Using GPIO Pins: Connect external components (e.g., LEDs, sensors) to the GPIO pins. Use a breadboard and jumper wires for prototyping.
  4. Networking: Connect to the internet via Ethernet or Wi-Fi for software updates and remote access.

Important Considerations and Best Practices

  • Static Protection: Handle the Raspberry Pi carefully to avoid static discharge, which can damage the board.
  • Cooling: Use a heatsink or fan for cooling, especially when running resource-intensive applications.
  • OS Installation: Use the Raspberry Pi Imager tool to install an operating system on the microSD card.
  • GPIO Safety: Do not exceed the 3.3V logic level on GPIO pins to prevent damage.

Example: Blinking an LED with Raspberry Pi and Python

Below is an example of how to blink an LED connected to GPIO pin 17 using Python:


Import the necessary libraries

import RPi.GPIO as GPIO # Library to control GPIO pins import time # Library for time delays

Set up GPIO mode

GPIO.setmode(GPIO.BCM) # Use Broadcom pin numbering GPIO.setup(17, GPIO.OUT) # Set GPIO pin 17 as an output

try: while True: GPIO.output(17, GPIO.HIGH) # Turn the LED on time.sleep(1) # Wait for 1 second GPIO.output(17, GPIO.LOW) # Turn the LED off time.sleep(1) # Wait for 1 second except KeyboardInterrupt: # Clean up GPIO settings when the program is interrupted GPIO.cleanup()


**Note**: Connect the LED's anode (long leg) to GPIO pin 17 and the cathode (short leg) to a resistor (e.g., 330 ohms), which is then connected to a ground pin.

Troubleshooting and FAQs

Common Issues and Solutions

  1. The Raspberry Pi does not boot:

    • Ensure the microSD card is properly inserted and contains a valid operating system.
    • Check the power supply for sufficient voltage and current.
  2. No display on the monitor:

    • Verify the HDMI cable connection and ensure the monitor is powered on.
    • Use the correct micro HDMI port (HDMI0) for the primary display.
  3. GPIO pins not working:

    • Double-check the GPIO pin configuration and connections.
    • Ensure the GPIO library (e.g., RPi.GPIO) is installed and properly configured.
  4. Overheating:

    • Use a heatsink or fan to improve cooling.
    • Avoid running the Raspberry Pi in enclosed spaces without ventilation.

FAQs

  • Can I power the Raspberry Pi via GPIO pins? Yes, you can power the Raspberry Pi via the 5V and GND GPIO pins, but this bypasses the onboard voltage regulation and protection circuits. Use this method with caution.

  • What operating systems can I run on the Raspberry Pi? The Raspberry Pi supports Raspberry Pi OS, Ubuntu, and other Linux-based distributions. It can also run lightweight versions of Windows.

  • How do I enable SSH for remote access? Create an empty file named ssh (no file extension) in the boot partition of the microSD card before booting the Raspberry Pi.

By following this documentation, you can effectively use the Raspberry Pi for a variety of projects and troubleshoot common issues.
