How to Use TFT ILI9225: Examples, Pinouts, and Specs

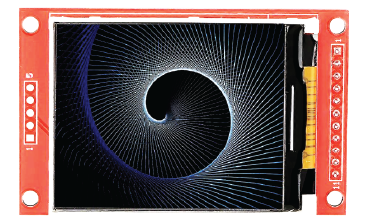

The TFT ILI9225 is a color display driver IC designed to control TFT LCD screens with a resolution of 176x220 pixels. It is widely used in embedded systems to create graphical user interfaces (GUIs) due to its ability to render vibrant colors and deliver fast response times. This component is ideal for applications requiring compact, high-quality displays, such as handheld devices, IoT projects, and DIY electronics.

• Embedded systems with graphical user interfaces
• Portable devices and handheld gadgets
• IoT dashboards and monitoring systems
• Educational and DIY electronics projects
• Arduino and microcontroller-based projects

The TFT ILI9225 module typically comes with a 10-pin interface. Below is the pinout description:

1. Power Supply: Connect the VCC pin to a 3.3V power source and the GND pin to ground. For the backlight, connect the LED pin to 3.3V or 5V, depending on your module's specifications.
2. SPI Communication: Connect the SCK, SDA, CS, and A0 pins to the corresponding SPI pins on your microcontroller. Ensure the RESET pin is also connected to a GPIO pin for proper initialization.
3. Interface Mode: Tie the IM0 pin to GND to enable SPI mode.
4. Initialization: Use the appropriate library or initialization sequence to configure the ILI9225 driver IC. This typically involves sending a series of commands over SPI to set up the display.

• Voltage Levels: Ensure all logic signals (SCK, SDA, CS, A0, RESET) are at 3.3V levels. If using a 5V microcontroller (e.g., Arduino UNO), use a level shifter to avoid damaging the display.
• Backlight Power: The backlight can be powered with 3.3V or 5V, but check your module's datasheet for specific requirements.
• SPI Speed: Use an SPI clock speed of up to 4 MHz for reliable communication.
• Library Support: Use libraries like Adafruit_ILI9225 or similar to simplify the initialization and drawing process.

Below is an example of how to use the TFT ILI9225 with an Arduino UNO. This code uses the Adafruit_ILI9225 library.

#include <Adafruit_ILI9225.h>
#include <SPI.h>

// Pin definitions for the TFT ILI9225
#define TFT_CS    10  // Chip Select pin
#define TFT_RST   9   // Reset pin
#define TFT_RS    8   // Register Select pin (A0)

// Create an instance of the display
Adafruit_ILI9225 tft = Adafruit_ILI9225(TFT_CS, TFT_RS, TFT_RST);

void setup() {
  // Initialize serial communication for debugging
  Serial.begin(9600);
  Serial.println("Initializing TFT ILI9225...");

  // Initialize the display
  if (!tft.begin()) {
    Serial.println("Failed to initialize the display!");
    while (1); // Halt execution if initialization fails
  }

  // Clear the screen with a black background
  tft.fillScreen(ILI9225_BLACK);

  // Display a message
  tft.setCursor(10, 10); // Set cursor position (x, y)
  tft.setTextColor(ILI9225_WHITE); // Set text color
  tft.setTextSize(2); // Set text size
  tft.print("Hello, World!");
}

void loop() {
  // Add your code here to update the display
}

1. Display Not Turning On

   • Cause: Incorrect power supply or loose connections.
   • Solution: Verify that VCC is connected to 3.3V and GND is properly grounded. Check all connections.

2. No Output on the Screen

   • Cause: Incorrect SPI wiring or initialization sequence.
   • Solution: Double-check the SPI connections (SCK, SDA, CS, A0, RESET) and ensure the correct pins are defined in your code.

3. Flickering or Artifacts on the Display

   • Cause: SPI clock speed too high or unstable power supply.
   • Solution: Reduce the SPI clock speed (e.g., to 2 MHz) and ensure a stable 3.3V power source.

4. Backlight Not Working

   • Cause: Backlight pin (LED) not connected or insufficient voltage.
   • Solution: Ensure the LED pin is connected to 3.3V or 5V as required by your module.

Q: Can I use the TFT ILI9225 with a 5V microcontroller like Arduino UNO?
A: Yes, but you must use level shifters to convert the 5V logic signals to 3.3V to avoid damaging the display.

Q: What is the maximum SPI clock speed supported by the ILI9225?
A: The ILI9225 typically supports SPI clock speeds up to 4 MHz.

Q: Is there a library available for the ILI9225?
A: Yes, libraries like Adafruit_ILI9225 are available and simplify the process of using the display.

Q: Can I use this display in outdoor environments?
A: The display is not sunlight-readable and is best suited for indoor use. However, it operates reliably within the temperature range of -20°C to +70°C.
