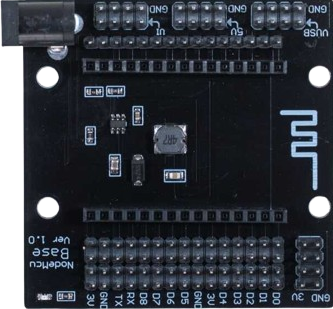

The NodeMCU8266 Lolin Baseboard, manufactured by ESP, is a development board based on the ESP8266 Wi-Fi module. It is designed for IoT (Internet of Things) applications, offering built-in Wi-Fi connectivity and a user-friendly programming environment. The board is compatible with the Arduino IDE and Lua scripting, making it an excellent choice for both beginners and experienced developers.
Explore Projects Built with nodemcu8266 lolin basboard
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit is designed for a 4-wheeled WiFi-controlled car with a basket, which uses an ESP8266 NodeMCU microcontroller for logic control. It features an IR sensor for basket full detection, a GPS module for location tracking, and a GSM module (Sim800l) for sending SMS notifications. The L298N motor driver controls four DC gearmotors for movement, and the system is powered by a Li-ion battery with a 7805 voltage regulator providing stable power to the GSM module.
This circuit features an ESP8266 NodeMCU microcontroller connected to a 0.96" OLED display and an RYLR896 LoRa module. The ESP8266 communicates with the OLED via I2C protocol and interfaces with the LoRa module using UART, enabling wireless data transmission and display capabilities.
This circuit features an ESP8266 NodeMCU microcontroller connected to a ULN2003A breakout board to drive a 28BYJ-48 stepper motor. The ESP8266 also interfaces with a DHT11 temperature and humidity sensor and an LDR (light-dependent resistor) module for environmental sensing. Power is supplied by a 5V DC source, which is distributed to the motor driver, sensors, and the microcontroller.
This circuit integrates an ESP8266 NodeMCU microcontroller with a SIM800L GSM module, a GPS NEO 6M module, and a 16x2 I2C LCD display for communication and location tracking. It also includes a pushbutton for user input, a piezo buzzer for audio alerts, and is powered by a 2x 18650 battery pack through an LM2596 step-down module.
Connect the board to a power source using the micro-USB port or the VIN and GND pins. Ensure the input voltage is within the specified range (4.5V - 10V).
Programming the Board:
Install the Arduino IDE and add the ESP8266 board package via the Boards Manager.
Select "NodeMCU 1.0 (ESP-12E Module)" as the board type in the Arduino IDE.
Connect the board to your computer using a micro-USB cable.
Connecting Peripherals:
Use the GPIO pins (D0-D8) for digital input/output operations.
Connect sensors or other analog devices to the A0 pin, ensuring the input voltage does not exceed 3.3V.
Uploading Code:
Write your code in the Arduino IDE and upload it to the board using the "Upload" button. Ensure the correct COM port is selected.
Important Considerations and Best Practices
Voltage Levels: The GPIO pins operate at 3.3V. Avoid applying 5V directly to these pins to prevent damage.
Wi-Fi Antenna: Ensure the onboard Wi-Fi antenna is not obstructed for optimal signal strength.
Power Supply: Use a stable power source to avoid unexpected resets or malfunctions.
Heat Management: The ESP8266 may heat up during operation. Ensure proper ventilation if used in enclosed spaces.
Example Code for Arduino UNO Integration
#include <ESP8266WiFi.h>
// Replace with your network credentials
const char* ssid = "Your_SSID";
const char* password = "Your_PASSWORD";
void setup() {
Serial.begin(115200); // Initialize serial communication at 115200 baud
delay(10);
// Connect to Wi-Fi network
Serial.println();
Serial.println("Connecting to Wi-Fi...");
WiFi.begin(ssid, password);
while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print("."); // Print dots while connecting
}
Serial.println();
Serial.println("Wi-Fi connected!");
Serial.print("IP Address: ");
Serial.println(WiFi.localIP()); // Print the assigned IP address
}
void loop() {
// Add your main code here
}
Troubleshooting and FAQs
Common Issues and Solutions
Board Not Detected by Computer:
Ensure the USB cable is functional and supports data transfer.
Install the necessary USB-to-serial drivers (e.g., CH340 or CP2102).
Wi-Fi Connection Fails:
Double-check the SSID and password in your code.
Ensure the Wi-Fi network is within range and not overloaded.
Code Upload Fails:
Verify the correct board and COM port are selected in the Arduino IDE.
Press and hold the "Flash" button on the board while uploading the code.
Random Resets or Instability:
Use a stable power source with sufficient current (at least 500mA).
Check for loose connections or short circuits in your circuit.
FAQs
Q: Can I use 5V sensors with the NodeMCU8266 Lolin Baseboard?
A: Yes, but you will need a voltage divider or level shifter to step down the signal to 3.3V.
Q: How do I reset the board?
A: Press the "RST" button on the board to perform a hardware reset.
Q: Can I use the board without Wi-Fi?
A: Yes, the board can function as a standalone microcontroller without using Wi-Fi features.
Q: What is the maximum range of the Wi-Fi module?
A: The range depends on environmental factors but typically extends up to 100 meters in open spaces.
This documentation provides a comprehensive guide to using the NodeMCU8266 Lolin Baseboard effectively. For further assistance, refer to the official ESP documentation or community forums.
