How to Use uBlox SAM-M10: Examples, Pinouts, and Specs

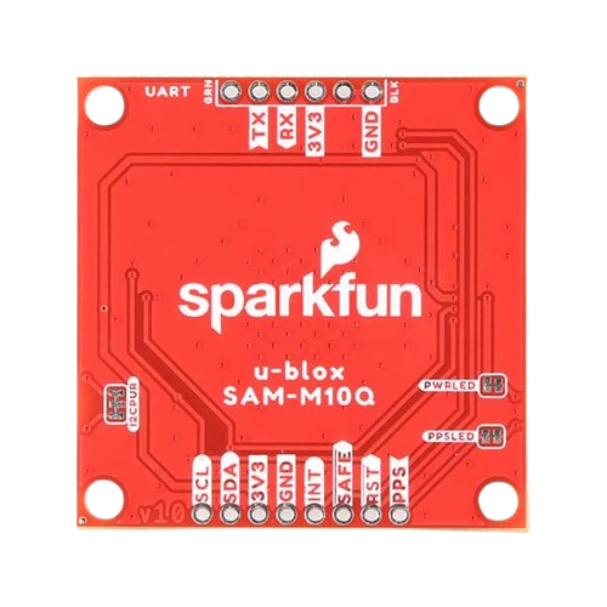

The uBlox SAM-M10 is a high-performance GNSS (Global Navigation Satellite System) module designed for precise positioning and navigation applications. It supports multiple satellite systems, including GPS, GLONASS, Galileo, and BeiDou, ensuring robust and reliable location tracking even in challenging environments. With its low power consumption, the SAM-M10 is ideal for battery-operated devices, such as IoT trackers, wearables, and portable navigation systems.

• Asset tracking and fleet management
• Wearable devices and fitness trackers
• Drones and unmanned aerial vehicles (UAVs)
• Automotive navigation systems
• IoT devices requiring precise location data

The uBlox SAM-M10 module is engineered for high accuracy and efficiency. Below are its key technical specifications:

The SAM-M10 module has a compact pinout for easy integration. Below is the pin configuration:

The uBlox SAM-M10 is straightforward to use in a circuit. Below are the steps and considerations for integrating it into your project:

1. Power Supply: Connect the VCC pin to a stable power source within the range of 1.8V to 3.6V. Ensure proper decoupling capacitors are used to minimize noise.
2. Ground Connection: Connect the GND pin to the ground of your circuit.
3. Communication Interface: Use either the UART (TXD and RXD) or I2C (SDA and SCL) interface for communication with a microcontroller or host device.
4. Antenna: The module includes an integrated patch antenna. For optimal performance, ensure the module has a clear view of the sky.
5. Reset: Optionally, connect the RESET_N pin to a microcontroller GPIO for manual reset functionality.

The SAM-M10 can be interfaced with an Arduino UNO using the UART interface. Below is an example code snippet to read GNSS data:

#include <SoftwareSerial.h>

// Define RX and TX pins for SoftwareSerial
SoftwareSerial GNSS(10, 11); // RX = Pin 10, TX = Pin 11

void setup() {
  Serial.begin(9600);        // Initialize Serial Monitor
  GNSS.begin(9600);          // Initialize GNSS module communication

  Serial.println("uBlox SAM-M10 GNSS Module Test");
}

void loop() {
  while (GNSS.available()) {
    char c = GNSS.read();    // Read data from GNSS module
    Serial.print(c);         // Print GNSS data to Serial Monitor
  }
}

• Place the module in an open area for better satellite visibility.
• Avoid placing the module near high-frequency noise sources.
• Use proper decoupling capacitors to stabilize the power supply.
• If using I2C, ensure pull-up resistors are connected to SDA and SCL lines.

1. No GNSS Fix:

   • Cause: Poor satellite visibility or interference.
   • Solution: Move the module to an open area with a clear view of the sky. Ensure no metallic objects are obstructing the antenna.

2. No Data Output:

   • Cause: Incorrect communication interface or baud rate.
   • Solution: Verify the UART or I2C connections and ensure the baud rate matches the module's default (9600 bps for UART).

3. High Power Consumption:

   • Cause: Module not in power-saving mode.
   • Solution: Configure the module for low-power operation using uBlox's u-center software or appropriate commands.

4. Intermittent Data:

   • Cause: Power supply instability.
   • Solution: Use low ESR capacitors near the VCC pin to stabilize the power supply.

Q1: Can the SAM-M10 operate indoors?
A1: While the SAM-M10 can operate indoors, its performance may degrade due to limited satellite visibility. For best results, use it in open areas.

Q2: How do I configure the module for power-saving mode?
A2: Use uBlox's u-center software to send configuration commands to the module. Refer to the SAM-M10 datasheet for specific power-saving commands.

Q3: What is the default baud rate for UART communication?
A3: The default baud rate is 9600 bps.

Q4: Can I use an external antenna with the SAM-M10?
A4: No, the SAM-M10 has an integrated patch antenna and does not support external antennas.

By following this documentation, you can effectively integrate and utilize the uBlox SAM-M10 GNSS module in your projects.
