Introduction

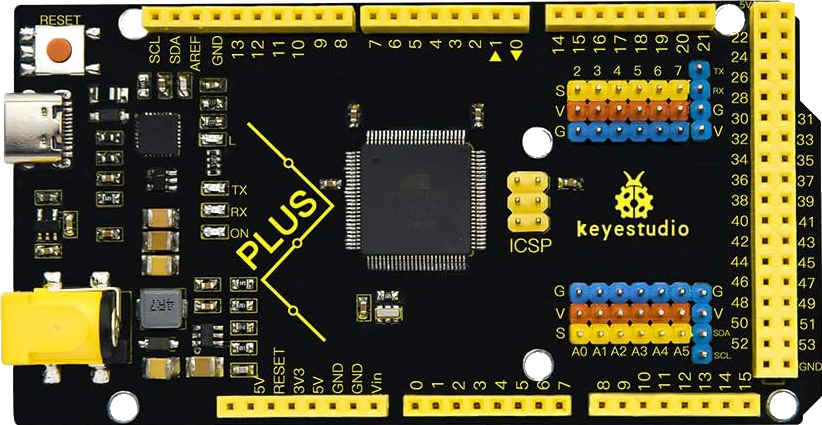

The Mega 2560 R3 Plus by KEYESTUDIO is a powerful microcontroller board based on the ATmega2560. It is designed for advanced projects and prototyping, offering a wide range of input/output options and robust processing capabilities. With 54 digital input/output pins, 16 analog inputs, and a variety of communication interfaces, the Mega 2560 R3 Plus is ideal for applications requiring high pin counts and complex functionality.

Explore Projects Built with Mega 2560 R3 Plus

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

Multi-Functional Robotic Control System with Sensor Integration and Display Interface

This circuit includes an Arduino Mega 2560 and an Arduino UNO microcontroller, both of which are connected to various sensors, actuators, and a power supply. The Mega 2560 controls stepper motors via drivers, servos, and an LED light strip, while the UNO interfaces with ultrasonic sensors, a motion sensor, and a load cell through an HX711 interface. Additionally, a Raspberry Pi 5 is connected to an LCD and peripherals, and a logic level converter is used for voltage level translation between devices.

Open Project in Cirkit Designer

Arduino Mega 2560-Based RFID and Stepper Motor Control System with I2C LCD Display

This circuit features an Arduino Mega 2560 microcontroller interfacing with multiple components including four 28BYJ-48 stepper motors controlled via ULN 2003 drivers, a 16x2 I2C LCD for display, an RFID-RC522 module for RFID reading, and a 4x4 membrane matrix keypad for user input. The setup is designed for applications requiring motor control, user interaction, and RFID-based identification.

Open Project in Cirkit Designer

Arduino Mega 2560-Based Access Control Panel with RFID and Keypad

This circuit is designed to interact with users through a keypad and display information on an LCD screen, control two stepper motors, read RFID tags, and provide audio feedback with a buzzer. It is powered by a breadboard power supply module and the contrast of the LCD can be adjusted with a potentiometer. The Arduino Mega 2560 serves as the central controller, although the user code for operation is not yet provided.

Open Project in Cirkit Designer

Arduino and Raspberry Pi Controlled Robotic System with Stepper Motors and Sensors

This circuit integrates an Arduino Mega 2560 and an Arduino UNO to control multiple stepper motors, servos, and sensors, including ultrasonic and motion sensors. It also interfaces with a Raspberry Pi 5 for additional processing and display capabilities, utilizing a variety of components such as a load cell, LED light strips, and a logic level converter.

Open Project in Cirkit Designer

Common Applications and Use Cases

• Robotics and automation systems
• IoT (Internet of Things) projects
• Data acquisition and logging
• Complex sensor networks
• Prototyping for industrial and academic research
• Advanced Arduino-based projects requiring multiple peripherals

Technical Specifications

The following table outlines the key technical details of the Mega 2560 R3 Plus:

Pin Configuration and Descriptions

The Mega 2560 R3 Plus features a variety of pins for different functionalities. Below is a summary of the pin configuration:

Digital Pins

Analog Pins

Power Pins

Usage Instructions

How to Use the Mega 2560 R3 Plus in a Circuit

1. Powering the Board:

   • Connect the board to your computer via the USB cable for programming and power.
   • Alternatively, use an external power supply (7-12V) through the VIN pin or DC power jack.

2. Programming:

   • Use the Arduino IDE to write and upload code to the board.
   • Select "Arduino/Genuino Mega or Mega 2560" as the board type in the IDE.
   • Choose the correct COM port for the board.

3. Connecting Components:

   • Use the digital pins for controlling LEDs, relays, or other digital devices.
   • Use the analog pins to read sensor data (e.g., temperature, light intensity).
   • Utilize communication interfaces (UART, SPI, I2C) for connecting peripherals like displays or modules.

Important Considerations and Best Practices

• Avoid exceeding the maximum current rating (20 mA) for each I/O pin to prevent damage.
• Use appropriate resistors when connecting LEDs or other components to limit current.
• Ensure the input voltage does not exceed the recommended range (7-12V) to avoid overheating.
• Use decoupling capacitors for noise-sensitive applications.

Example Code for Arduino UNO

The following example demonstrates how to blink an LED connected to pin 13:

// This example code blinks an LED connected to pin 13 on the Mega 2560 R3 Plus.
// The LED will turn on for 1 second and off for 1 second in a loop.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

1. Board Not Recognized by Computer:

   • Ensure the USB cable is properly connected and functional.
   • Install the correct USB driver for the Mega 2560 R3 Plus.
   • Check if the correct COM port is selected in the Arduino IDE.

2. Code Upload Fails:

   • Verify that the correct board type ("Arduino/Genuino Mega or Mega 2560") is selected.
   • Ensure no other application is using the COM port.
   • Press the reset button on the board before uploading.

3. Components Not Working as Expected:

   • Double-check wiring and connections.
   • Ensure components are compatible with the board's voltage levels.
   • Use a multimeter to verify power supply and signal integrity.

FAQs

Q: Can I power the board with a 9V battery?
A: Yes, you can connect a 9V battery to the DC power jack or VIN pin. Ensure the battery voltage is within the recommended range (7-12V).

Q: How do I reset the board?
A: Press the reset button on the board to restart the microcontroller.

Q: Can I use the Mega 2560 R3 Plus with shields designed for the Arduino UNO?
A: Yes, the Mega 2560 R3 Plus is compatible with most Arduino UNO shields, but ensure the shield does not rely on specific pin mappings unique to the UNO.

Q: What is the maximum current the board can supply?
A: The 5V pin can supply up to 500 mA when powered via USB or up to 1A when using an external power source.
