How to Use Arduino Uno R3: Examples, Pinouts, and Specs

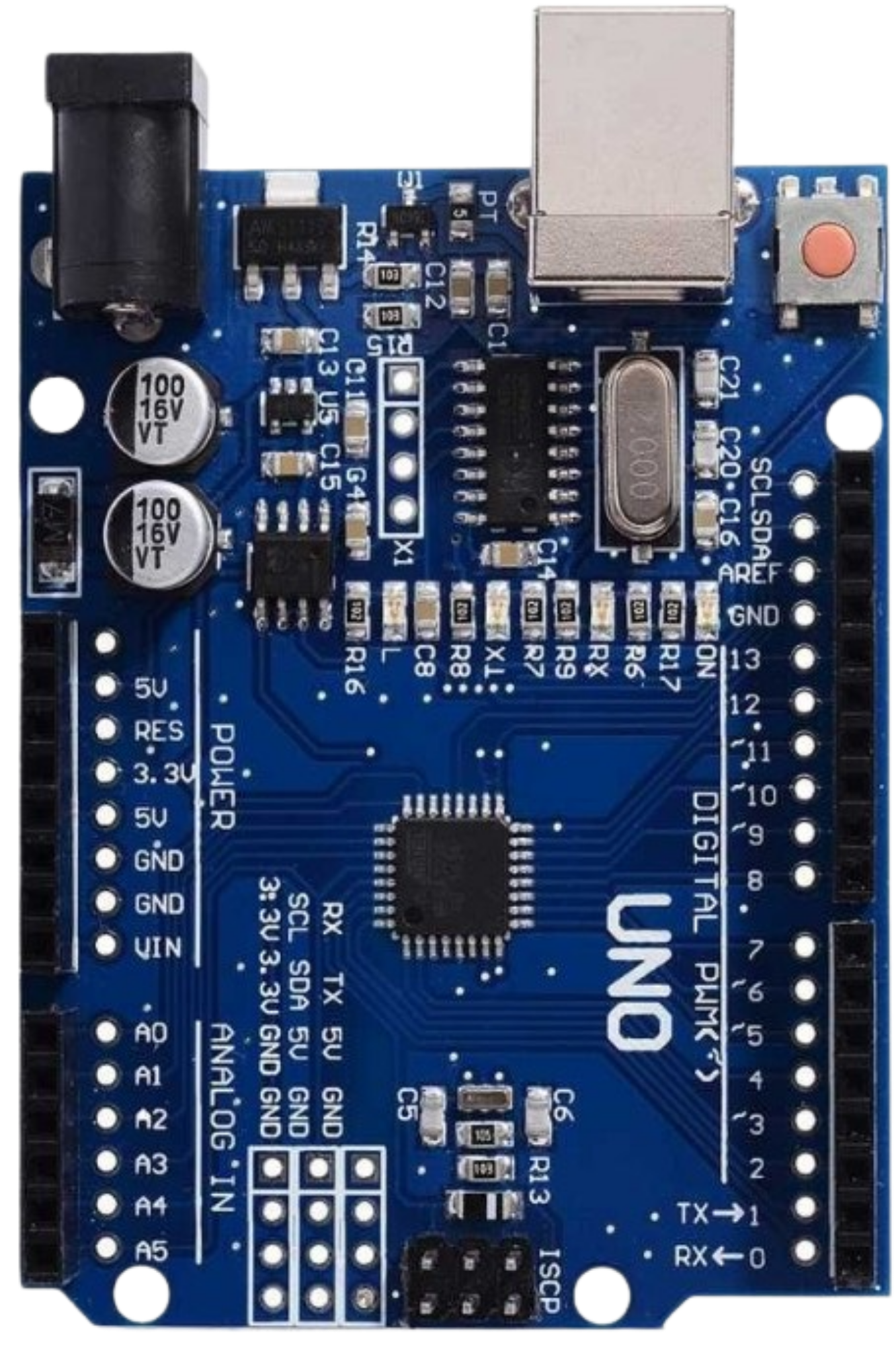

Image of Arduino Uno R3
Cirkit Designer LogoDesign with Arduino Uno R3 in Cirkit Designer

Introduction

The Arduino Uno R3 is a microcontroller board developed by Arduino, based on the ATmega328P microcontroller. It is one of the most popular and versatile boards in the Arduino ecosystem, designed for beginners and professionals alike. The board features 14 digital input/output pins, 6 analog inputs, a USB connection for programming, and a power jack for external power supply. Its simplicity and extensive community support make it ideal for prototyping, learning electronics, and building interactive projects.

Explore Projects Built with Arduino Uno R3

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino-Based Smart Water Level Monitoring and Control System
Image of Circuit: A project utilizing Arduino Uno R3 in a practical application
This circuit features multiple Arduino Uno R3 boards interfaced with various sensors, actuators, and modules. It includes ultrasonic sensors (HC-SR04) for distance measurement, a servo motor (MG996R) for actuation, a real-time clock (RTC DS3231), a GSM module (SIM 800L V2.0) for cellular communication, and an I2C LCD display for user interface. Additionally, the circuit controls a bilge pump via a 12V relay, powered by a 12V power supply, with AC mains integration for the pump.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Uno R3-Based Voice-Controlled Robot with Servo Actuation and SD Logging
Image of wheel: A project utilizing Arduino Uno R3 in a practical application
This circuit features an Arduino Uno R3 as the central microcontroller, interfaced with a variety of components. It includes a voice recognition module for audio input commands, an analog thumbstick for manual control, and multiple servos for actuation. Additionally, the circuit integrates an I2C LCD screen for display purposes, an infrared proximity sensor for distance measurement, and a micro SD card module for data storage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Uno R3-Based Voice-Controlled Robotic Interface with LCD Feedback
Image of Copy of wheel: A project utilizing Arduino Uno R3 in a practical application
This circuit features an Arduino Uno R3 as the central controller, interfaced with a voice recognition module for audio input commands, an Adafruit Mini Analog Thumbstick for manual control input, and multiple servos for actuation. The Arduino also connects to an I2C LCD 16x2 Screen for display output and an Infrared Proximity Sensor for distance measurement. The circuit is designed for interactive control of servos with both voice and joystick inputs, while providing visual feedback and proximity sensing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Uno R3 with MQ Gas Sensors and I2C LCD Display
Image of O.M.C MACHINE CKT DIAGRAM: A project utilizing Arduino Uno R3 in a practical application
This circuit is designed to monitor gas levels using MQ-5 and MQ-4 gas sensors, with the capability to provide both digital and analog readings. The Arduino Uno R3 serves as the central processing unit, reading sensor outputs and controlling an MKE-M07 LCD1602 I2C display to provide a user interface for real-time gas concentration data. The sensors and display are powered by the Arduino's 5V output, and the ground connections are shared across all components.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino Uno R3

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Circuit: A project utilizing Arduino Uno R3 in a practical application
Arduino-Based Smart Water Level Monitoring and Control System
This circuit features multiple Arduino Uno R3 boards interfaced with various sensors, actuators, and modules. It includes ultrasonic sensors (HC-SR04) for distance measurement, a servo motor (MG996R) for actuation, a real-time clock (RTC DS3231), a GSM module (SIM 800L V2.0) for cellular communication, and an I2C LCD display for user interface. Additionally, the circuit controls a bilge pump via a 12V relay, powered by a 12V power supply, with AC mains integration for the pump.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of wheel: A project utilizing Arduino Uno R3 in a practical application
Arduino Uno R3-Based Voice-Controlled Robot with Servo Actuation and SD Logging
This circuit features an Arduino Uno R3 as the central microcontroller, interfaced with a variety of components. It includes a voice recognition module for audio input commands, an analog thumbstick for manual control, and multiple servos for actuation. Additionally, the circuit integrates an I2C LCD screen for display purposes, an infrared proximity sensor for distance measurement, and a micro SD card module for data storage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of wheel: A project utilizing Arduino Uno R3 in a practical application
Arduino Uno R3-Based Voice-Controlled Robotic Interface with LCD Feedback
This circuit features an Arduino Uno R3 as the central controller, interfaced with a voice recognition module for audio input commands, an Adafruit Mini Analog Thumbstick for manual control input, and multiple servos for actuation. The Arduino also connects to an I2C LCD 16x2 Screen for display output and an Infrared Proximity Sensor for distance measurement. The circuit is designed for interactive control of servos with both voice and joystick inputs, while providing visual feedback and proximity sensing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of O.M.C MACHINE CKT DIAGRAM: A project utilizing Arduino Uno R3 in a practical application
Arduino Uno R3 with MQ Gas Sensors and I2C LCD Display
This circuit is designed to monitor gas levels using MQ-5 and MQ-4 gas sensors, with the capability to provide both digital and analog readings. The Arduino Uno R3 serves as the central processing unit, reading sensor outputs and controlling an MKE-M07 LCD1602 I2C display to provide a user interface for real-time gas concentration data. The sensors and display are powered by the Arduino's 5V output, and the ground connections are shared across all components.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Robotics and automation
  • IoT (Internet of Things) devices
  • Sensor-based systems
  • LED control and lighting projects
  • Educational tools for learning programming and electronics

Technical Specifications

Key Technical Details

Parameter Specification
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 14 (6 provide PWM output)
Analog Input Pins 6
DC Current per I/O Pin 20 mA
Flash Memory 32 KB (0.5 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
USB Connector Type-B
Dimensions 68.6 mm x 53.4 mm
Weight 25 g

Pin Configuration and Descriptions

Pin Number Pin Name Description
1-14 Digital Pins General-purpose digital I/O pins. Pins 3, 5, 6, 9, 10, and 11 support PWM.
A0-A5 Analog Pins Analog input pins for reading sensor data (0-5V range).
VIN VIN Input voltage to the board when using an external power source (7-12V).
GND Ground Ground pins for completing the circuit.
5V 5V Regulated 5V output for powering external components.
3.3V 3.3V Regulated 3.3V output for low-voltage components.
RESET Reset Resets the microcontroller.
IOREF IO Reference Provides the voltage reference for the I/O pins.
USB USB Connector Used for programming and serial communication.

Usage Instructions

How to Use the Arduino Uno R3 in a Circuit

  1. Powering the Board:

    • Connect the board to your computer using a USB Type-B cable for programming and power.
    • Alternatively, use an external power supply (7-12V) via the VIN pin or the DC power jack.
  2. Programming:

    • Install the Arduino IDE from the official Arduino website.
    • Connect the board to your computer via USB.
    • Select the correct board (Arduino Uno) and port in the Arduino IDE.
    • Write your code and upload it to the board.
  3. Connecting Components:

    • Use the digital pins for digital input/output operations (e.g., controlling LEDs, reading buttons).
    • Use the analog pins for reading sensor data (e.g., temperature sensors, potentiometers).
    • Ensure components are connected to the appropriate voltage levels (5V or 3.3V).

Important Considerations and Best Practices

  • Avoid drawing more than 20 mA from any single I/O pin to prevent damage.
  • Use external resistors with LEDs to limit current and protect the pins.
  • When using motors or high-power devices, use a separate power supply and appropriate driver circuits.
  • Always double-check connections to avoid short circuits or incorrect wiring.

Example Code for Arduino Uno R3

The following example demonstrates how to blink an LED connected to pin 13:

// This example code blinks an LED connected to digital pin 13.
// The LED will turn on for 1 second, then off for 1 second, repeatedly.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not detected by the computer:

    • Ensure the USB cable is properly connected and functional.
    • Install the necessary drivers for the Arduino Uno R3.
    • Check if the correct port is selected in the Arduino IDE.
  2. Code does not upload to the board:

    • Verify that the correct board and port are selected in the Arduino IDE.
    • Press the RESET button on the board before uploading.
    • Ensure no external components are interfering with the RX/TX pins.
  3. The board is overheating:

    • Check for short circuits or excessive current draw from the I/O pins.
    • Use an appropriate power supply within the recommended voltage range (7-12V).
  4. Analog readings are unstable:

    • Ensure proper grounding of all components in the circuit.
    • Use capacitors to filter noise from the power supply.

FAQs

Q: Can I power the Arduino Uno R3 with a battery?
A: Yes, you can use a 9V battery connected to the DC power jack or the VIN pin.

Q: What is the maximum current the board can supply?
A: The 5V pin can supply up to 500 mA when powered via USB, or up to 1A when using an external power supply.

Q: Can I use the Arduino Uno R3 for wireless communication?
A: Yes, you can use external modules like Bluetooth, Wi-Fi (e.g., ESP8266), or RF modules for wireless communication.

Q: Is the Arduino Uno R3 compatible with shields?
A: Yes, the Arduino Uno R3 is compatible with a wide range of shields designed for the Uno form factor.


This concludes the documentation for the Arduino Uno R3. For further details, visit the official Arduino website.
