How to Use Arduino Mega 2560: Examples, Pinouts, and Specs

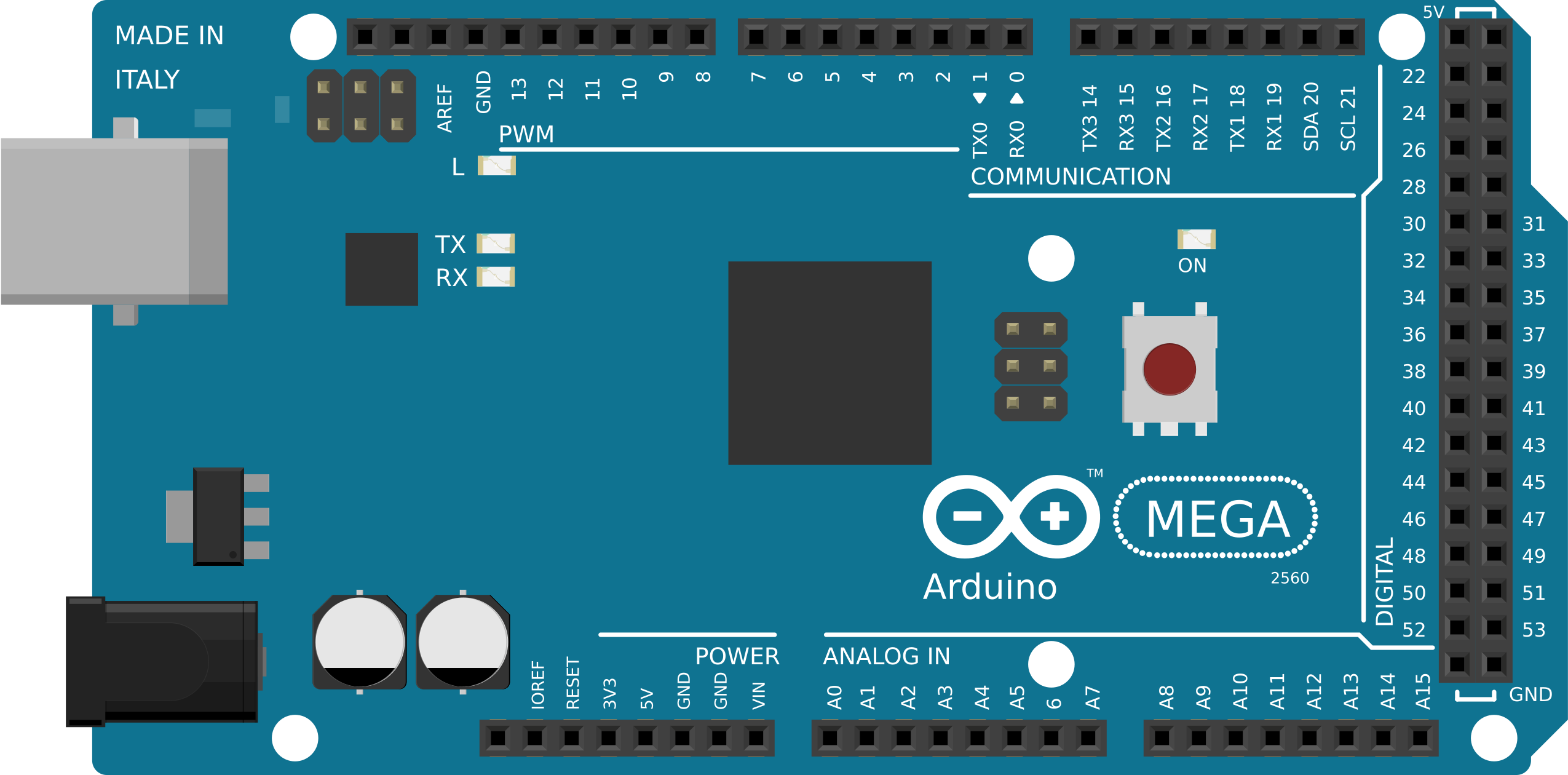

Image of Arduino Mega 2560
Cirkit Designer LogoDesign with Arduino Mega 2560 in Cirkit Designer

Introduction

The Arduino Mega 2560 is a powerful microcontroller board based on the ATmega2560. It is designed for complex projects and prototyping, offering a wide range of input/output capabilities. With 54 digital input/output pins (15 of which can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), and a USB connection for programming, the Mega 2560 is ideal for applications requiring extensive I/O and processing power.

Explore Projects Built with Arduino Mega 2560

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Mega 2560-Based Smart Home Automation System with LCD Display and Sensor Integration
Image of newfinal: A project utilizing Arduino Mega 2560 in a practical application
This circuit is a multi-functional system controlled by an Arduino Mega 2560, featuring an LCD display for output, multiple LEDs for status indication, and sensors for water level and temperature/humidity monitoring. It also includes a motor driver to control a DC motor and a stepper motor, with user input facilitated by pushbuttons and a rotary potentiometer.
Cirkit Designer LogoOpen Project in Cirkit Designer
Multi-Functional Robotic Control System with Sensor Integration and Display Interface
Image of GP2: A project utilizing Arduino Mega 2560 in a practical application
This circuit includes an Arduino Mega 2560 and an Arduino UNO microcontroller, both of which are connected to various sensors, actuators, and a power supply. The Mega 2560 controls stepper motors via drivers, servos, and an LED light strip, while the UNO interfaces with ultrasonic sensors, a motion sensor, and a load cell through an HX711 interface. Additionally, a Raspberry Pi 5 is connected to an LCD and peripherals, and a logic level converter is used for voltage level translation between devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560 Controlled Lighting and Display System with Rotary Encoder and Dual Servos
Image of inseg: A project utilizing Arduino Mega 2560 in a practical application
This circuit features an Arduino Mega 2560 microcontroller as its central processing unit, interfacing with a variety of peripherals. It includes a BH1750 light sensor and an OLED display connected via I2C for light intensity measurement and data display, respectively. Additionally, two SG92R servomotors are controlled by PWM signals for actuation, a rotary encoder is used for user input, and an LED is provided for visual output or status indication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560-Based Robotic Hand with OLED Display and Joystick Control
Image of PROTO ARM: A project utilizing Arduino Mega 2560 in a practical application
This circuit features an Arduino Mega 2560 microcontroller interfaced with various sensors and actuators, including a DHT11 temperature and humidity sensor, a 0.96" OLED display, a dual-axis joystick, and multiple MG90S servos controlled via a 16-channel PWM driver. The circuit is powered by a combination of 9V and LiPo batteries, with a DC buck converter providing regulated power to the components.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino Mega 2560

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of newfinal: A project utilizing Arduino Mega 2560 in a practical application
Arduino Mega 2560-Based Smart Home Automation System with LCD Display and Sensor Integration
This circuit is a multi-functional system controlled by an Arduino Mega 2560, featuring an LCD display for output, multiple LEDs for status indication, and sensors for water level and temperature/humidity monitoring. It also includes a motor driver to control a DC motor and a stepper motor, with user input facilitated by pushbuttons and a rotary potentiometer.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of GP2: A project utilizing Arduino Mega 2560 in a practical application
Multi-Functional Robotic Control System with Sensor Integration and Display Interface
This circuit includes an Arduino Mega 2560 and an Arduino UNO microcontroller, both of which are connected to various sensors, actuators, and a power supply. The Mega 2560 controls stepper motors via drivers, servos, and an LED light strip, while the UNO interfaces with ultrasonic sensors, a motion sensor, and a load cell through an HX711 interface. Additionally, a Raspberry Pi 5 is connected to an LCD and peripherals, and a logic level converter is used for voltage level translation between devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of inseg: A project utilizing Arduino Mega 2560 in a practical application
Arduino Mega 2560 Controlled Lighting and Display System with Rotary Encoder and Dual Servos
This circuit features an Arduino Mega 2560 microcontroller as its central processing unit, interfacing with a variety of peripherals. It includes a BH1750 light sensor and an OLED display connected via I2C for light intensity measurement and data display, respectively. Additionally, two SG92R servomotors are controlled by PWM signals for actuation, a rotary encoder is used for user input, and an LED is provided for visual output or status indication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of PROTO ARM: A project utilizing Arduino Mega 2560 in a practical application
Arduino Mega 2560-Based Robotic Hand with OLED Display and Joystick Control
This circuit features an Arduino Mega 2560 microcontroller interfaced with various sensors and actuators, including a DHT11 temperature and humidity sensor, a 0.96" OLED display, a dual-axis joystick, and multiple MG90S servos controlled via a 16-channel PWM driver. The circuit is powered by a combination of 9V and LiPo batteries, with a DC buck converter providing regulated power to the components.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Robotics and automation systems
  • IoT (Internet of Things) projects
  • Data acquisition and logging
  • Complex sensor networks
  • Prototyping for embedded systems
  • Educational purposes in electronics and programming

Technical Specifications

Key Technical Details

Specification Value
Microcontroller ATmega2560
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 54 (15 PWM outputs)
Analog Input Pins 16
DC Current per I/O Pin 20 mA
Flash Memory 256 KB (8 KB used by bootloader)
SRAM 8 KB
EEPROM 4 KB
Clock Speed 16 MHz
USB Connection Type-B USB
Communication Interfaces UART, SPI, I2C
Dimensions 101.52 mm x 53.3 mm
Weight 37 g

Pin Configuration and Descriptions

Digital Pins

Pin Number Functionality
0-1 UART0 (Serial communication)
2-13 General-purpose digital I/O, PWM (2-13)
14-21 UART1, UART2, UART3 (Serial ports)
22-53 General-purpose digital I/O

Analog Pins

Pin Number Functionality
A0-A15 Analog inputs (10-bit resolution)

Power Pins

Pin Name Description
VIN Input voltage to the board (7-12V)
5V Regulated 5V output
3.3V Regulated 3.3V output
GND Ground
IOREF Voltage reference for I/O pins

Usage Instructions

How to Use the Arduino Mega 2560 in a Circuit

  1. Powering the Board:

    • Connect the board to your computer via the USB Type-B cable for programming and power.
    • Alternatively, use the VIN pin or DC barrel jack to supply 7-12V for standalone operation.
  2. Programming the Board:

    • Install the Arduino IDE from the official website.
    • Select "Arduino Mega 2560" as the board type and the correct COM port in the IDE.
    • Write your code in the IDE and upload it to the board using the "Upload" button.
  3. Connecting Components:

    • Use the digital pins for controlling LEDs, relays, or other digital devices.
    • Use the analog pins to read sensor data (e.g., temperature, light).
    • Utilize the UART, SPI, or I2C interfaces for communication with other devices.

Important Considerations and Best Practices

  • Avoid exceeding the maximum current rating (20 mA per I/O pin) to prevent damage.
  • Use external pull-up or pull-down resistors for stable digital input signals.
  • When using motors or high-power devices, use external power supplies and protection circuits.
  • Ensure proper grounding between the Arduino and external components.

Example Code for Arduino Mega 2560

The following example demonstrates how to blink an LED connected to digital pin 13:

// Blink an LED connected to pin 13
// This example toggles the LED on and off every second.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Example Code for Reading an Analog Sensor

The following example reads a value from an analog sensor connected to pin A0:

// Read an analog sensor connected to pin A0
// Prints the sensor value to the Serial Monitor.

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
}

void loop() {
  int sensorValue = analogRead(A0); // Read the analog value from pin A0
  Serial.println(sensorValue);      // Print the value to the Serial Monitor
  delay(500);                       // Wait for 500 milliseconds
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not detected by the computer:

    • Ensure the USB cable is properly connected and functional.
    • Install the necessary drivers for the Arduino Mega 2560.
    • Check if the correct COM port is selected in the Arduino IDE.
  2. Code does not upload to the board:

    • Verify that "Arduino Mega 2560" is selected as the board type in the IDE.
    • Ensure no other application is using the COM port.
    • Press the reset button on the board and try uploading again.
  3. Components connected to the board are not working:

    • Double-check the wiring and connections.
    • Ensure the components are compatible with the Arduino's voltage and current ratings.
    • Use a multimeter to verify power supply and signal levels.

FAQs

Q: Can I power the Arduino Mega 2560 with a battery?
A: Yes, you can use a 9V battery connected to the DC barrel jack or VIN pin. Ensure the voltage is within the recommended range (7-12V).

Q: How do I expand the number of I/O pins?
A: Use I/O expanders like the MCP23017 (I2C) or shift registers like the 74HC595 to increase the number of available pins.

Q: Can I use the Arduino Mega 2560 for wireless communication?
A: Yes, you can connect wireless modules like the ESP8266 (Wi-Fi) or HC-05 (Bluetooth) via UART, SPI, or I2C.

Q: Is the Arduino Mega 2560 compatible with Arduino shields?
A: Yes, it is compatible with most Arduino shields designed for the Uno, as it shares the same pin layout for the first 14 pins.
