How to Use Inductors: Examples, Pinouts, and Specs

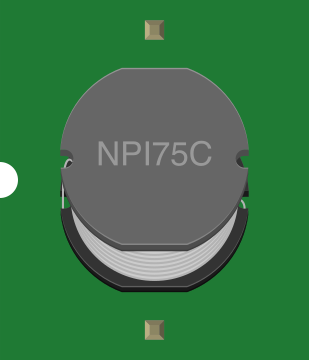

Inductors are passive electrical components that store energy in a magnetic field when electrical current flows through them. They are typically made of a coil of wire wound around a core, which can be air, ferrite, or another magnetic material. Inductors are widely used in electronic circuits for their ability to resist changes in current, making them essential in filtering, energy storage, and tuning applications.

• Power Supplies: Used in DC-DC converters and voltage regulators for energy storage and smoothing.
• Filters: Employed in low-pass, high-pass, and band-pass filters to block or pass specific frequency ranges.
• RF Circuits: Used in tuning circuits for radios, oscillators, and antennas.
• Transformers: Inductors are a key component in transformer designs for voltage step-up or step-down.
• Energy Storage: Found in inductive energy storage systems and flyback converters.

Inductors come in various shapes, sizes, and specifications depending on their intended application. Below are the key technical parameters to consider:

• Inductance (L): Measured in henries (H), it indicates the inductor's ability to store energy.
• Current Rating: Maximum current the inductor can handle without overheating or saturating.
• Saturation Current: The current at which the core material saturates, reducing inductance.
• DC Resistance (DCR): The resistance of the wire used in the coil, measured in ohms (Ω).
• Self-Resonant Frequency (SRF): The frequency at which the inductor's inductive and capacitive reactances cancel each other out.
• Core Material: Determines the inductor's efficiency and frequency range (e.g., air, ferrite, iron).

Inductors typically have two terminals, but their physical configuration can vary. Below is a general description:

For surface-mount inductors, the pins are often labeled as A and B, while through-hole inductors have wire leads.

1. Determine the Required Inductance: Calculate the inductance value needed for your application using circuit design equations (e.g., LC filter or resonance formulas).
2. Select an Appropriate Inductor: Choose an inductor with the correct inductance, current rating, and core material for your circuit.
3. Connect the Inductor: Place the inductor in series or parallel as required by the circuit design. Ensure proper orientation if the inductor has polarity markings (rare but possible in some designs).
4. Avoid Saturation: Ensure the current through the inductor does not exceed its saturation current rating.
5. Minimize Parasitics: Place the inductor close to other components in high-frequency circuits to reduce parasitic inductance and resistance.

• Core Selection: Use ferrite cores for high-frequency applications and iron cores for low-frequency, high-power circuits.
• Shielding: Use shielded inductors in sensitive circuits to minimize electromagnetic interference (EMI).
• Heat Dissipation: Ensure adequate ventilation or heat sinking if the inductor operates at high currents.
• Testing: Use an LCR meter to verify the inductance and quality factor (Q) of the inductor before use.

Inductors are often used in conjunction with microcontrollers like the Arduino UNO for tasks such as filtering or energy storage. Below is an example of using an inductor in a simple LC filter circuit to smooth a PWM signal:

/*
  Example: Using an LC Filter with Arduino PWM Output
  This code generates a PWM signal on pin 9, which can be smoothed
  using an LC filter to produce an analog-like voltage output.
*/

const int pwmPin = 9; // PWM output pin

void setup() {
  pinMode(pwmPin, OUTPUT); // Set pin 9 as an output
}

void loop() {
  // Generate a PWM signal with 50% duty cycle
  analogWrite(pwmPin, 128); // 128/255 = 50% duty cycle
  delay(1000); // Wait for 1 second
}

Circuit Setup:

• Connect the Arduino's PWM pin (e.g., pin 9) to one terminal of the inductor.
• Connect the other terminal of the inductor to the input of a capacitor.
• Connect the capacitor's other terminal to ground.
• The output voltage can be measured across the capacitor.

1. Inductor Overheating:

   • Cause: Exceeding the current rating or poor ventilation.
   • Solution: Use an inductor with a higher current rating or improve cooling.

2. Low Inductance Value:

   • Cause: Incorrect inductor selection or damaged component.
   • Solution: Verify the inductance with an LCR meter and replace if necessary.

3. Circuit Noise or EMI:

   • Cause: Unshielded inductor or poor PCB layout.
   • Solution: Use shielded inductors and optimize PCB design to minimize noise.

4. Saturation of Inductor:

   • Cause: Current exceeds the saturation current rating.
   • Solution: Select an inductor with a higher saturation current.

• Q: Can I use any inductor for high-frequency applications?
  A: No, you need to select an inductor with a core material suitable for high frequencies, such as ferrite.

• Q: How do I calculate the required inductance for a filter?
  A: Use the formula ( L = \frac{1}{(2\pi f)^2 C} ), where ( f ) is the cutoff frequency and ( C ) is the capacitance.

• Q: What happens if I reverse the inductor's connections?
  A: Inductors are generally non-polarized, so reversing the connections will not affect their operation.

• Q: Can I use multiple inductors in parallel?
  A: Yes, but the total inductance will decrease according to the formula for parallel inductors:
  ( \frac{1}{L_{total}} = \frac{1}{L_1} + \frac{1}{L_2} + \dots ).

By following this documentation, you can effectively integrate inductors into your electronic designs and troubleshoot common issues.
