How to Use SERVO: Examples, Pinouts, and Specs

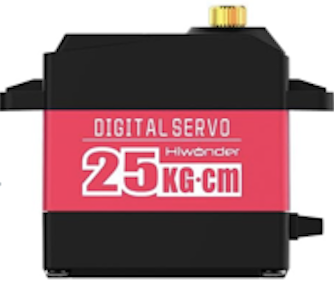

Image of SERVO
Cirkit Designer LogoDesign with SERVO in Cirkit Designer

Introduction

A servo is a rotary actuator that allows for precise control of angular position, velocity, and acceleration. It consists of a motor coupled to a sensor for position feedback, along with a control circuit. Servos are widely used in robotics, automation, remote-controlled vehicles, and industrial machinery due to their ability to provide accurate and repeatable motion.

Explore Projects Built with SERVO

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered ESP32-S3 Controlled Servo System with gForceJoint UART
Image of Copy of Oymotion: A project utilizing SERVO in a practical application
This circuit is a servo control system powered by a 4 x AAA battery pack, regulated by a step-down DC regulator. An ESP32-S3 microcontroller controls five servos and communicates with a gForceJoint UART sensor, enabling precise servo movements based on sensor inputs.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-S3 Controlled Servo Robot with Battery Power
Image of Oymotion: A project utilizing SERVO in a practical application
This circuit is designed to control five servos using an ESP32-S3 microcontroller, powered by a 4 x AAA battery pack through a step-down regulator. The ESP32-S3 also interfaces with a gForceJoint UART 111 sensor for additional input.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560 Controlled Multi-Servo Random Positioning System
Image of robotic: A project utilizing SERVO in a practical application
This circuit consists of an Arduino Mega 2560 microcontroller connected to twelve servo motors, each individually controlled by a distinct PWM pin on the Arduino. The servos are powered by a single Polymer Lithium Ion Battery, with all servos sharing a common power (VCC) and ground (GND) connection. The embedded code on the Arduino is designed to randomly position each servo within a 0 to 180-degree range, with a random delay between movements, demonstrating a multi-servo control system possibly for applications like robotics or animatronics.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Controlled Servo and IR Sensor Array
Image of mini project bsi: A project utilizing SERVO in a practical application
This circuit is designed to control servos and read inputs from IR sensors using an ESP32 Devkit V1 microcontroller. It features a step-down converter for voltage regulation, an I2C LCD for display purposes, and a red LED as an indicator. The system is likely used for automation tasks that require object detection and actuator control.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with SERVO

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Copy of Oymotion: A project utilizing SERVO in a practical application
Battery-Powered ESP32-S3 Controlled Servo System with gForceJoint UART
This circuit is a servo control system powered by a 4 x AAA battery pack, regulated by a step-down DC regulator. An ESP32-S3 microcontroller controls five servos and communicates with a gForceJoint UART sensor, enabling precise servo movements based on sensor inputs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Oymotion: A project utilizing SERVO in a practical application
ESP32-S3 Controlled Servo Robot with Battery Power
This circuit is designed to control five servos using an ESP32-S3 microcontroller, powered by a 4 x AAA battery pack through a step-down regulator. The ESP32-S3 also interfaces with a gForceJoint UART 111 sensor for additional input.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of robotic: A project utilizing SERVO in a practical application
Arduino Mega 2560 Controlled Multi-Servo Random Positioning System
This circuit consists of an Arduino Mega 2560 microcontroller connected to twelve servo motors, each individually controlled by a distinct PWM pin on the Arduino. The servos are powered by a single Polymer Lithium Ion Battery, with all servos sharing a common power (VCC) and ground (GND) connection. The embedded code on the Arduino is designed to randomly position each servo within a 0 to 180-degree range, with a random delay between movements, demonstrating a multi-servo control system possibly for applications like robotics or animatronics.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of mini project bsi: A project utilizing SERVO in a practical application
ESP32-Controlled Servo and IR Sensor Array
This circuit is designed to control servos and read inputs from IR sensors using an ESP32 Devkit V1 microcontroller. It features a step-down converter for voltage regulation, an I2C LCD for display purposes, and a red LED as an indicator. The system is likely used for automation tasks that require object detection and actuator control.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Robotics: Controlling robotic arms, grippers, and joints.
  • Remote-controlled vehicles: Steering systems and throttle control.
  • Automation: Conveyor belts, sorting systems, and automated doors.
  • Hobby projects: Model airplanes, boats, and cars.
  • Camera gimbals: Stabilizing and positioning cameras.

Technical Specifications

Below are the general technical specifications for a standard hobby servo. Note that specifications may vary depending on the specific model and manufacturer.

Key Technical Details

  • Operating Voltage: 4.8V to 6V (typical range)
  • Operating Current: 100mA to 1A (depending on load)
  • Torque: 1.5 kg·cm to 25 kg·cm (varies by model)
  • Rotation Range: 0° to 180° (standard), 360° for continuous rotation servos
  • Control Signal: Pulse Width Modulation (PWM)
    • Pulse width: 1ms (0°), 1.5ms (90°), 2ms (180°)
    • Frequency: 50Hz (20ms period)
  • Connector: 3-pin (Signal, VCC, GND)

Pin Configuration and Descriptions

The servo typically has a 3-pin connector with the following configuration:

Pin Number Name Description
1 Signal PWM input for position control
2 VCC Power supply (4.8V to 6V)
3 GND Ground connection

Usage Instructions

How to Use the Servo in a Circuit

  1. Power the Servo:

    • Connect the VCC pin to a 5V power source (or as specified by the servo's datasheet).
    • Connect the GND pin to the ground of the power source.
    • Ensure the power supply can handle the servo's current requirements, especially under load.
  2. Control the Servo:

    • Use a microcontroller (e.g., Arduino UNO) to generate a PWM signal on the Signal pin.
    • Adjust the pulse width to set the desired angular position (e.g., 1ms for 0°, 1.5ms for 90°, 2ms for 180°).
  3. Circuit Example:

    • Connect the Signal pin to a PWM-capable pin on the microcontroller.
    • Use a decoupling capacitor near the servo to stabilize the power supply.

Arduino UNO Example Code

Below is an example code to control a servo using an Arduino UNO:

#include <Servo.h> // Include the Servo library

Servo myServo; // Create a Servo object to control the servo

void setup() {
  myServo.attach(9); // Attach the servo to pin 9 on the Arduino
}

void loop() {
  myServo.write(0); // Move the servo to 0 degrees
  delay(1000); // Wait for 1 second

  myServo.write(90); // Move the servo to 90 degrees
  delay(1000); // Wait for 1 second

  myServo.write(180); // Move the servo to 180 degrees
  delay(1000); // Wait for 1 second
}

Important Considerations and Best Practices

  • Power Supply: Use a separate power supply for the servo if it draws significant current, as powering it directly from the Arduino may cause instability.
  • PWM Signal: Ensure the PWM signal is stable and within the servo's specifications.
  • Mechanical Load: Avoid overloading the servo, as this can cause overheating or damage.
  • Mounting: Securely mount the servo to prevent vibrations or misalignment during operation.

Troubleshooting and FAQs

Common Issues and Solutions

  1. Servo Not Moving:

    • Cause: Incorrect wiring or insufficient power supply.
    • Solution: Double-check the connections and ensure the power supply meets the servo's voltage and current requirements.
  2. Servo Jittering:

    • Cause: Unstable PWM signal or noisy power supply.
    • Solution: Use a decoupling capacitor near the servo and ensure the PWM signal is clean.
  3. Servo Overheating:

    • Cause: Excessive mechanical load or prolonged operation at high torque.
    • Solution: Reduce the load or allow the servo to cool down periodically.
  4. Limited Range of Motion:

    • Cause: Servo is physically restricted or receiving incorrect PWM signals.
    • Solution: Check for obstructions and verify the PWM pulse width range.

FAQs

  • Q: Can I use a servo with a 3.3V microcontroller?

    • A: Yes, but you may need a level shifter to ensure the PWM signal is compatible with the servo's input requirements.
  • Q: What is the difference between a standard servo and a continuous rotation servo?

    • A: A standard servo controls angular position (e.g., 0° to 180°), while a continuous rotation servo controls speed and direction of rotation.
  • Q: How do I know the torque rating of my servo?

    • A: Refer to the servo's datasheet or packaging for the torque specification, typically given in kg·cm or oz·in.
  • Q: Can I control multiple servos with one Arduino?

    • A: Yes, you can control multiple servos using different PWM-capable pins or a servo driver module.

By following this documentation, you can effectively integrate and troubleshoot a servo in your projects.
