How to Use 4 pole mcb: Examples, Pinouts, and Specs

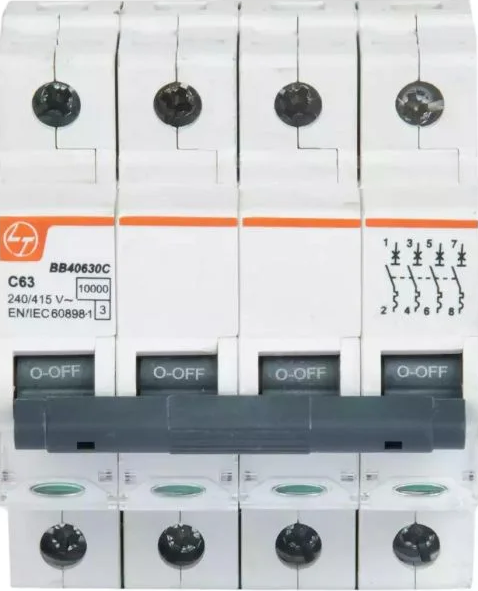

Image of 4 pole mcb
Cirkit Designer LogoDesign with 4 pole mcb in Cirkit Designer

Introduction

The 4 Pole Miniature Circuit Breaker (MCB), manufactured by L&T with part ID C63, is a protective device designed to safeguard electrical circuits from overloads and short circuits. This MCB is specifically engineered for use in three-phase systems with a neutral line, providing reliable protection for both residential and industrial applications. Its compact design and robust performance make it an essential component in modern electrical installations.

Explore Projects Built with 4 pole mcb

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Flush Switch Controlled Lamp Circuit with AC Power Supply and MCB Protection
Image of LAMP CONTROLE WITH MCB: A project utilizing 4 pole mcb in a practical application
This circuit is designed to control a lamp using a flush switch and is protected by two MCBs (Miniature Circuit Breakers). The AC supply is connected to the input of the first MCB, whose output is connected to the flush switch. The flush switch then controls the power to the lamp, with the second MCB placed in the neutral line for additional safety.
Cirkit Designer LogoOpen Project in Cirkit Designer
PLC-Controlled Power Window System with Infrared Sensing and Relay Module
Image of wiring FYP: A project utilizing 4 pole mcb in a practical application
This circuit is designed to control a motorized window system using a PLC (Programmable Logic Controller) and an array of sensors and switches. It includes power supplies for 12V and 24V DC, an MCB (Miniature Circuit Breaker) for protection, and a relay module interfaced with an Arduino for additional control logic. The PLC manages inputs from pushbuttons, a 3-position switch, infrared proximity sensors, and an emergency stop, and it controls outputs such as the motor speed controller, lamps, and solenoid valves.
Cirkit Designer LogoOpen Project in Cirkit Designer
LED Indicator System with Power Stabilizer and Measurement Meters
Image of MEMEK: A project utilizing 4 pole mcb in a practical application
This circuit is a power distribution and monitoring system that includes multiple LEDs for status indication, a stabilizer module, and measurement instruments such as voltmeters and ammeters. It is designed to supply power to a computer and monitor the power quality and current flow, with protection provided by MCBs (Miniature Circuit Breakers).
Cirkit Designer LogoOpen Project in Cirkit Designer
Industrial Power Distribution and Safety Control System
Image of Control Diagram: A project utilizing 4 pole mcb in a practical application
This circuit is designed for power distribution and safety control in an industrial setting. It features a main isolator and circuit breaker for power management, multiple PSUs for 5V, 12V, and 24V outputs, and a safety relay system that interfaces with E-stop buttons and a start switch to control a main contactor, ensuring safe operation and emergency power cut-off capabilities.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with 4 pole mcb

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of LAMP CONTROLE WITH MCB: A project utilizing 4 pole mcb in a practical application
Flush Switch Controlled Lamp Circuit with AC Power Supply and MCB Protection
This circuit is designed to control a lamp using a flush switch and is protected by two MCBs (Miniature Circuit Breakers). The AC supply is connected to the input of the first MCB, whose output is connected to the flush switch. The flush switch then controls the power to the lamp, with the second MCB placed in the neutral line for additional safety.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of wiring FYP: A project utilizing 4 pole mcb in a practical application
PLC-Controlled Power Window System with Infrared Sensing and Relay Module
This circuit is designed to control a motorized window system using a PLC (Programmable Logic Controller) and an array of sensors and switches. It includes power supplies for 12V and 24V DC, an MCB (Miniature Circuit Breaker) for protection, and a relay module interfaced with an Arduino for additional control logic. The PLC manages inputs from pushbuttons, a 3-position switch, infrared proximity sensors, and an emergency stop, and it controls outputs such as the motor speed controller, lamps, and solenoid valves.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of MEMEK: A project utilizing 4 pole mcb in a practical application
LED Indicator System with Power Stabilizer and Measurement Meters
This circuit is a power distribution and monitoring system that includes multiple LEDs for status indication, a stabilizer module, and measurement instruments such as voltmeters and ammeters. It is designed to supply power to a computer and monitor the power quality and current flow, with protection provided by MCBs (Miniature Circuit Breakers).
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Control Diagram: A project utilizing 4 pole mcb in a practical application
Industrial Power Distribution and Safety Control System
This circuit is designed for power distribution and safety control in an industrial setting. It features a main isolator and circuit breaker for power management, multiple PSUs for 5V, 12V, and 24V outputs, and a safety relay system that interfaces with E-stop buttons and a start switch to control a main contactor, ensuring safe operation and emergency power cut-off capabilities.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Protection of three-phase electrical systems in residential, commercial, and industrial setups.
  • Safeguarding sensitive equipment from damage due to overcurrent or short circuits.
  • Use in distribution boards for isolating and protecting circuits.
  • Ensuring safety in motor control centers and power distribution systems.

Technical Specifications

The following table outlines the key technical details of the L&T C63 4 Pole MCB:

Parameter Specification
Manufacturer L&T
Part ID C63
Number of Poles 4 (Three-phase + Neutral)
Rated Current 63 A
Rated Voltage 415 V AC
Breaking Capacity 10 kA
Tripping Curve C Curve
Frequency 50/60 Hz
Mounting Type DIN Rail
Operating Temperature -5°C to +55°C
Standards Compliance IEC 60898-1

Pin Configuration and Descriptions

The 4 Pole MCB has four terminals for connection. The table below describes each terminal:

Terminal Description
L1 Line input for Phase 1
L2 Line input for Phase 2
L3 Line input for Phase 3
N Neutral input

Usage Instructions

How to Use the Component in a Circuit

  1. Mounting the MCB: Securely install the MCB on a standard DIN rail in the distribution board.
  2. Wiring:
    • Connect the three-phase lines (L1, L2, L3) to the respective input terminals of the MCB.
    • Connect the neutral line to the N terminal.
    • Ensure all connections are tight and secure to prevent arcing or loose contacts.
  3. Load Connection:
    • Connect the output terminals of the MCB to the load (e.g., appliances, motors, or other equipment).
  4. Power On:
    • Switch on the MCB to energize the circuit. The lever should be in the "ON" position.

Important Considerations and Best Practices

  • Current Rating: Ensure the MCB's rated current (63 A) matches the circuit's load requirements.
  • Breaking Capacity: Verify that the breaking capacity (10 kA) is sufficient for the fault current levels in your system.
  • Tripping Curve: The C Curve is suitable for general-purpose loads, including inductive loads like motors. For other applications, consult the manufacturer.
  • Regular Maintenance: Periodically inspect the MCB for signs of wear, overheating, or damage.
  • Safety First: Always disconnect power before installing or servicing the MCB.

Arduino Integration

While MCBs are not directly interfaced with microcontrollers like Arduino, they can be used in circuits where Arduino controls devices powered through the MCB. For example, an Arduino can control relays or contactors that operate loads protected by the MCB.

Troubleshooting and FAQs

Common Issues and Solutions

Issue Possible Cause Solution
MCB trips frequently Overload or short circuit in the circuit Check the load and wiring for faults.
MCB does not trip during a fault Fault current below the tripping threshold Verify the fault current and MCB rating.
MCB lever is stuck or difficult to operate Mechanical damage or internal fault Replace the MCB with a new one.
Overheating of terminals Loose connections or high current flow Tighten connections and check load current.

FAQs

  1. Can this MCB be used for single-phase systems?

    • Yes, but it is designed for three-phase systems. For single-phase use, only one pole and the neutral terminal would be utilized.
  2. What is the difference between a C Curve and other tripping curves?

    • A C Curve MCB trips at 5-10 times the rated current, making it suitable for general-purpose and inductive loads. Other curves (e.g., B or D) are designed for specific applications.
  3. How do I know if the MCB is faulty?

    • If the MCB does not trip during a fault or trips without any load, it may be faulty. Test it with a known load or consult a professional.
  4. Can this MCB be used outdoors?

    • No, the MCB is not weatherproof. It should be installed in a protected enclosure.

By following this documentation, users can effectively install, operate, and maintain the L&T C63 4 Pole MCB, ensuring safety and reliability in their electrical systems.
