How to Use SparkFun - microSD Transflash: Examples, Pinouts, and Specs

The SparkFun microSD Transflash (Manufacturer Part ID: BOB-00544) is a compact and versatile microSD card module designed for data storage and retrieval in embedded systems. It provides an easy interface for microcontrollers and development boards to read from and write to microSD cards, making it ideal for applications requiring large amounts of data storage. This module is compatible with a wide range of microcontrollers, including Arduino, Raspberry Pi, and other development platforms.

• Data logging (e.g., temperature, humidity, or sensor data)
• Storing multimedia files (e.g., audio, video, or images)
• Firmware updates via microSD cards
• Portable data storage for embedded systems
• File-based data management in IoT devices

The SparkFun microSD Transflash module is designed to simplify the integration of microSD cards into your projects. Below are the key technical details:

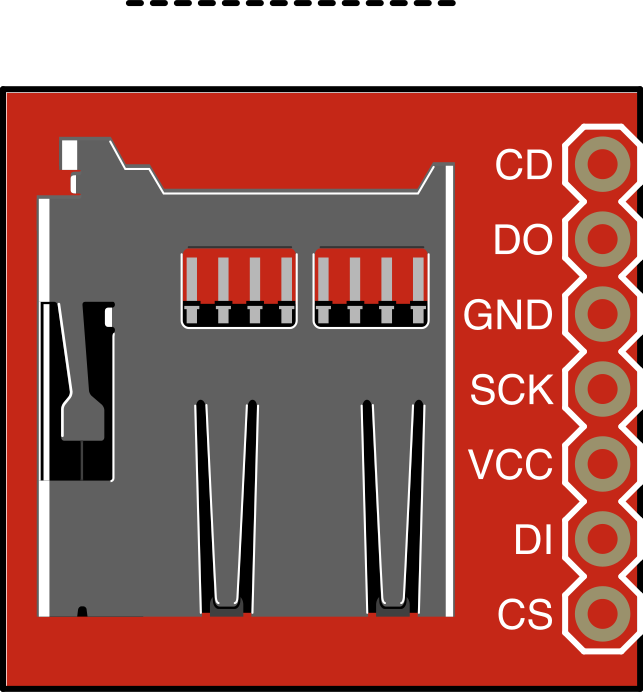

The module has a 6-pin header for interfacing with microcontrollers. Below is the pinout:

The SparkFun microSD Transflash module is straightforward to use in embedded systems. Below are the steps and best practices for integrating it into your project.

1. Connect the Module to Your Microcontroller:

   • Connect the GND pin to the ground of your microcontroller.
   • Connect the 3.3V pin to a 3.3V power supply. If your microcontroller operates at 5V, ensure the module's onboard level shifter is used.
   • Connect the SPI pins (CS, MOSI, MISO, SCK) to the corresponding SPI pins on your microcontroller.

2. Insert a microSD Card:

   • Ensure the microSD card is formatted as FAT16 or FAT32 for compatibility.
   • Insert the card into the module's slot until it clicks into place.

3. Initialize the Module in Your Code:

   • Use an appropriate library (e.g., the Arduino SD library) to initialize and communicate with the module.

• Ensure the microSD card is properly formatted before use.
• Avoid removing the microSD card while the module is powered to prevent data corruption.
• Use decoupling capacitors near the power pins to reduce noise and improve stability.
• Keep SPI connections as short as possible to minimize signal degradation.

Below is an example of how to use the SparkFun microSD Transflash module with an Arduino UNO:

#include <SPI.h>
#include <SD.h>

// Define the Chip Select (CS) pin for the microSD module
const int chipSelect = 10;

void setup() {
  // Initialize serial communication for debugging
  Serial.begin(9600);
  while (!Serial) {
    ; // Wait for the serial port to connect (for native USB boards)
  }

  Serial.println("Initializing SD card...");

  // Initialize the SD card
  if (!SD.begin(chipSelect)) {
    Serial.println("SD card initialization failed!");
    return;
  }
  Serial.println("SD card initialized successfully.");

  // Create or open a file on the SD card
  File dataFile = SD.open("example.txt", FILE_WRITE);

  // Check if the file opened successfully
  if (dataFile) {
    dataFile.println("Hello, SparkFun microSD Transflash!");
    dataFile.close(); // Close the file to save changes
    Serial.println("Data written to example.txt.");
  } else {
    Serial.println("Error opening example.txt.");
  }
}

void loop() {
  // Nothing to do here
}

• The chipSelect pin (CS) is set to pin 10 in this example. Adjust it if you connect the CS pin to a different pin on your Arduino.
• Ensure the SD.h library is installed in your Arduino IDE.

1. SD Card Initialization Fails:

   • Cause: Incorrect wiring or incompatible microSD card.
   • Solution: Double-check the connections and ensure the microSD card is formatted as FAT16 or FAT32.

2. Data Corruption on the microSD Card:

   • Cause: Removing the card while the module is powered.
   • Solution: Always power down the module before removing the card.

3. File Not Found or Cannot Be Opened:

   • Cause: Incorrect file path or file name.
   • Solution: Ensure the file name matches exactly, including case sensitivity.

4. No Response from the Module:

   • Cause: SPI communication issue.
   • Solution: Verify the SPI connections and ensure the correct CS pin is defined in your code.

Q: What is the maximum capacity of microSD cards supported?
A: The module supports microSD and microSDHC cards up to 32GB.

Q: Can this module work with 5V microcontrollers?
A: Yes, the module includes an onboard level shifter for compatibility with 5V logic.

Q: Is the module compatible with Raspberry Pi?
A: Yes, the module can be used with Raspberry Pi via its SPI interface.

Q: How do I format my microSD card for use with this module?
A: Use a computer to format the card as FAT16 or FAT32. Avoid using exFAT or NTFS formats.

By following this documentation, you can effectively integrate the SparkFun microSD Transflash module into your projects for reliable data storage and retrieval.
