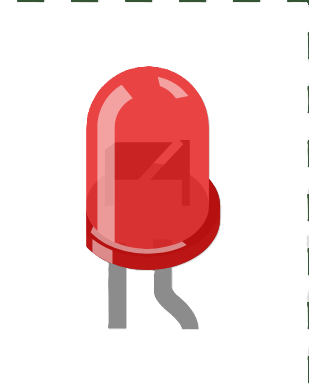

Image of led
Cirkit Designer LogoDesign with led in Cirkit Designer

Introduction

A Light Emitting Diode (LED) is a semiconductor device that emits light when an electric current passes through it. LEDs are energy-efficient, compact, and have a long lifespan, making them a popular choice for a wide range of applications. They are commonly used in indicator lights, displays, automotive lighting, and general-purpose illumination. LEDs are available in various colors, sizes, and brightness levels, making them versatile for different projects and designs.

Explore Projects Built with led

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered LED Array with Rocker Switch Control
Image of yk: A project utilizing led in a practical application
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Green LED Light
Image of Solar Panel : A project utilizing led in a practical application
This circuit consists of a solar panel connected to a green LED. The solar panel provides power to the LED, causing it to light up when sufficient sunlight is available.
Cirkit Designer LogoOpen Project in Cirkit Designer
LDR-Controlled LED Lighting System
Image of automatic street light: A project utilizing led in a practical application
This circuit appears to be a simple light-detection system that uses an LDR (Light Dependent Resistor) to control the state of multiple green LEDs. The LDR's analog output (AO) is not connected, suggesting that the circuit uses the digital output (DO) to directly drive one LED, while the other LEDs are wired in parallel to the LDR's power supply (Vcc). The Pd (presumably a power distribution component) provides the necessary voltage levels to the LDR and LEDs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Light-Activated Relay with LED Indicator
Image of Street Light: A project utilizing led in a practical application
This circuit uses a photocell (LDR) to control a 5V relay, which in turn controls the power to a red LED. The relay is powered by a USB plug, and a resistor is used to limit the current to the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with led

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of yk: A project utilizing led in a practical application
Battery-Powered LED Array with Rocker Switch Control
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Solar Panel : A project utilizing led in a practical application
Solar-Powered Green LED Light
This circuit consists of a solar panel connected to a green LED. The solar panel provides power to the LED, causing it to light up when sufficient sunlight is available.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of automatic street light: A project utilizing led in a practical application
LDR-Controlled LED Lighting System
This circuit appears to be a simple light-detection system that uses an LDR (Light Dependent Resistor) to control the state of multiple green LEDs. The LDR's analog output (AO) is not connected, suggesting that the circuit uses the digital output (DO) to directly drive one LED, while the other LEDs are wired in parallel to the LDR's power supply (Vcc). The Pd (presumably a power distribution component) provides the necessary voltage levels to the LDR and LEDs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Street Light: A project utilizing led in a practical application
Light-Activated Relay with LED Indicator
This circuit uses a photocell (LDR) to control a 5V relay, which in turn controls the power to a red LED. The relay is powered by a USB plug, and a resistor is used to limit the current to the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

Below are the general technical specifications for a standard LED. Note that specific values may vary depending on the type and manufacturer of the LED.

General Specifications

  • Forward Voltage (Vf): 1.8V to 3.3V (varies by color; e.g., red LEDs typically have lower Vf)
  • Forward Current (If): 10mA to 30mA (typical operating range)
  • Power Dissipation: 30mW to 150mW
  • Viewing Angle: 20° to 120° (depending on the LED design)
  • Lifespan: 50,000+ hours (under proper operating conditions)

Pin Configuration

An LED typically has two pins:

Pin Name Description
Anode (+) The longer pin, connected to the positive terminal of the power supply.
Cathode (-) The shorter pin, connected to the negative terminal or ground (GND).

Note: Some LEDs may have a flat edge on the casing near the cathode pin to help identify polarity.

Usage Instructions

How to Use an LED in a Circuit

  1. Determine the Forward Voltage and Current: Check the LED's datasheet for its forward voltage (Vf) and recommended forward current (If).

  2. Calculate the Resistor Value: To prevent damage, use a current-limiting resistor in series with the LED. The resistor value can be calculated using Ohm's Law: [ R = \frac{V_{supply} - V_f}{I_f} ] Where:

    • ( V_{supply} ) is the supply voltage.
    • ( V_f ) is the forward voltage of the LED.
    • ( I_f ) is the desired forward current (in amperes).
  3. Connect the LED:

    • Connect the anode (+) to the positive terminal of the power supply through the resistor.
    • Connect the cathode (-) to the ground (GND).
  4. Power the Circuit: Apply the appropriate voltage to the circuit. The LED should light up.

Example: Connecting an LED to an Arduino UNO

Below is an example of how to connect and control an LED using an Arduino UNO.

Circuit Setup

  • Connect the anode (+) of the LED to a digital pin (e.g., pin 13) on the Arduino through a 220Ω resistor.
  • Connect the cathode (-) of the LED to the GND pin on the Arduino.

Arduino Code

// LED Blink Example
// This code blinks an LED connected to pin 13 of the Arduino UNO.

const int ledPin = 13; // Define the pin number for the LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

Important Considerations

  • Polarity Matters: LEDs are polarized components. Reversing the polarity may prevent the LED from lighting up or damage it.
  • Use a Resistor: Always use a current-limiting resistor to avoid exceeding the LED's maximum current rating.
  • Heat Management: High-power LEDs may require heat sinks to dissipate heat and prevent damage.

Troubleshooting and FAQs

Common Issues

  1. LED Does Not Light Up:

    • Cause: Incorrect polarity.

    • Solution: Ensure the anode is connected to the positive terminal and the cathode to ground.

    • Cause: Missing or incorrect resistor value.

    • Solution: Verify the resistor value using the formula provided above.

    • Cause: Insufficient supply voltage.

    • Solution: Check that the supply voltage is higher than the LED's forward voltage.

  2. LED Flickers or is Dim:

    • Cause: Insufficient current.
    • Solution: Verify the resistor value and ensure the power supply can provide enough current.
  3. LED Burns Out Quickly:

    • Cause: Excessive current.
    • Solution: Use a resistor with a higher value to limit the current.

FAQs

  • Q: Can I connect an LED directly to a battery?
    A: No, connecting an LED directly to a battery without a resistor can cause excessive current flow, damaging the LED.

  • Q: How do I choose the right resistor for my LED?
    A: Use the formula ( R = \frac{V_{supply} - V_f}{I_f} ) to calculate the resistor value. Select a resistor with a power rating higher than the calculated power dissipation.

  • Q: Can I use an LED with an AC power source?
    A: LEDs are designed for DC operation. To use an LED with AC, you need a rectifier circuit and a current-limiting resistor.

  • Q: Why does my LED glow faintly even when off?
    A: This may be due to leakage current or stray capacitance in the circuit. Adding a pull-down resistor can help resolve this issue.

By following these guidelines and best practices, you can effectively use LEDs in your electronic projects.
