How to Use Adafruit INA219: Examples, Pinouts, and Specs

The Adafruit INA219 (Part ID: 904) is a high-side current sensor designed to measure voltage, current, and power in a circuit. It features an I2C interface, making it easy to integrate with microcontrollers such as Arduino, Raspberry Pi, and other development boards. This sensor is ideal for monitoring power consumption in various applications, including battery-powered devices, solar power systems, and motor controllers.

• Battery monitoring and management
• Solar power system analysis
• Motor current sensing
• Power consumption measurement in IoT devices
• Energy-efficient system design

The Adafruit INA219 is based on the Texas Instruments INA219 chip and offers precise power monitoring capabilities. Below are the key technical details:

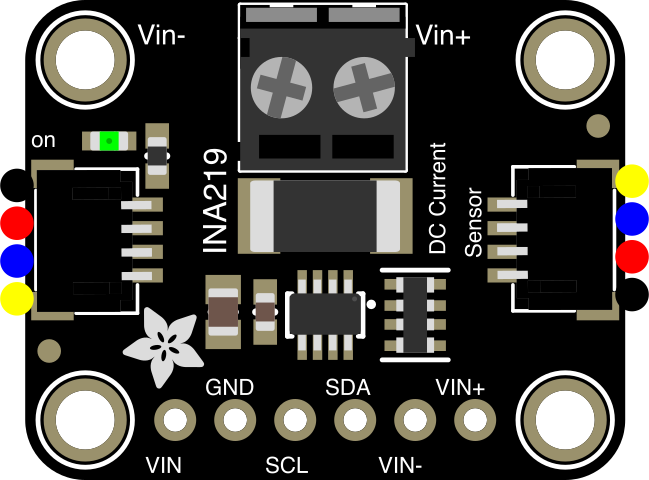

The Adafruit INA219 has six pins, as described in the table below:

1. Power the INA219: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to the ground.
2. Connect the Load:
   • Attach the VIN+ pin to the positive terminal of the power source.
   • Attach the VIN- pin to the positive terminal of the load.
   • Ensure the current flows through the shunt resistor for accurate measurement.
3. I2C Communication:
   • Connect the SDA and SCL pins to the corresponding I2C pins on your microcontroller.
   • Use pull-up resistors (typically 4.7kΩ) on the SDA and SCL lines if not already present.

• Shunt Resistor: The default 0.1Ω shunt resistor is suitable for most applications. For higher currents, replace it with a lower-value resistor.
• I2C Address: If using multiple INA219 sensors, modify the I2C address by soldering the address jumpers on the board.
• Voltage Limits: Ensure the measured voltage does not exceed 26V to avoid damaging the sensor.

Below is an example of how to use the Adafruit INA219 with an Arduino UNO to measure voltage, current, and power:

#include <Wire.h>
#include <Adafruit_INA219.h>

// Create an instance of the INA219 class
Adafruit_INA219 ina219;

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
  while (!Serial) {
    delay(10); // Wait for the serial monitor to open
  }

  // Initialize the INA219 sensor
  if (!ina219.begin()) {
    Serial.println("Failed to find INA219 chip");
    while (1) {
      delay(10); // Halt execution if the sensor is not detected
    }
  }
  Serial.println("INA219 initialized successfully");
}

void loop() {
  // Read voltage, current, and power
  float busVoltage = ina219.getBusVoltage_V(); // Voltage across the load
  float current_mA = ina219.getCurrent_mA();   // Current through the load
  float power_mW = ina219.getPower_mW();       // Power consumption of the load

  // Print the measurements to the serial monitor
  Serial.print("Bus Voltage: ");
  Serial.print(busVoltage);
  Serial.println(" V");

  Serial.print("Current: ");
  Serial.print(current_mA);
  Serial.println(" mA");

  Serial.print("Power: ");
  Serial.print(power_mW);
  Serial.println(" mW");

  Serial.println("-----------------------------");
  delay(1000); // Wait 1 second before the next reading
}

• Use short, thick wires for the VIN+ and VIN- connections to minimize resistance and improve accuracy.
• Avoid exceeding the maximum current rating of the shunt resistor to prevent overheating or damage.
• Calibrate the sensor if you replace the shunt resistor or require higher accuracy.

1. INA219 Not Detected on I2C Bus:

   • Ensure the SDA and SCL connections are correct.
   • Verify that pull-up resistors are present on the I2C lines.
   • Check the I2C address and ensure it matches the one in your code.

2. Incorrect Current or Voltage Readings:

   • Verify that the shunt resistor is securely soldered and has the correct value.
   • Ensure the load is properly connected between VIN+ and VIN-.

3. Overheating of the Shunt Resistor:

   • Check that the current through the resistor does not exceed its power rating.
   • Replace the resistor with a lower-value, higher-power-rated one if necessary.

Q: Can I measure negative currents with the INA219?
A: Yes, the INA219 can measure bidirectional currents. However, you may need to configure the sensor for bidirectional mode in your code.

Q: How do I change the I2C address of the INA219?
A: Modify the address by soldering the A0 and A1 jumpers on the back of the board. Refer to the silkscreen for the corresponding address settings.

Q: What is the maximum current the INA219 can measure?
A: The maximum measurable current depends on the value of the shunt resistor. With the default 0.1Ω resistor, the range is ±3.2A. For higher currents, use a lower-value resistor.

By following this documentation, you can effectively integrate the Adafruit INA219 into your projects for accurate power monitoring and analysis.
