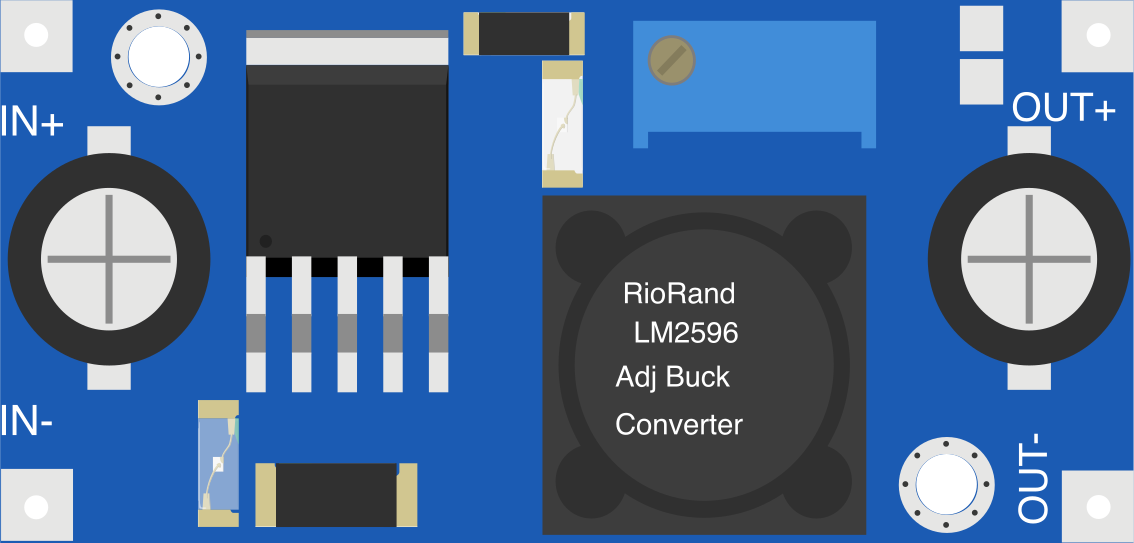

Image of RioRand LM2596
Cirkit Designer LogoDesign with RioRand LM2596 in Cirkit Designer

Introduction

The RioRand LM2596 is a step-down (buck) voltage regulator designed to efficiently convert a higher input voltage to a lower output voltage. This component is widely used in power supply applications due to its high efficiency, adjustable output voltage, and wide input voltage range. It is ideal for powering microcontrollers, sensors, and other electronic devices that require a stable and regulated voltage.
