How to Use GSM SIM800L: Examples, Pinouts, and Specs

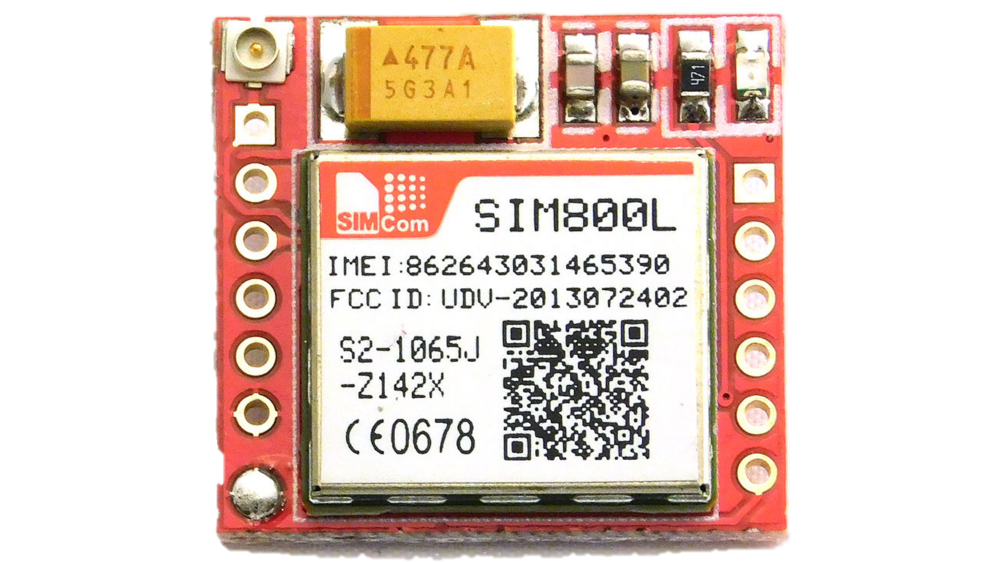

The GSM SIM800L is a compact and cost-effective GSM/GPRS module that enables communication over mobile networks. It allows devices to send and receive SMS, make voice calls, and connect to the internet using GPRS. With its small size and versatile functionality, the SIM800L is widely used in IoT projects, remote monitoring systems, and embedded applications requiring cellular connectivity.

• IoT devices for remote data transmission
• Home automation systems
• GPS tracking and vehicle monitoring
• SMS-based alert systems
• Remote control and monitoring of industrial equipment
• Voice call-enabled embedded systems

The SIM800L module is designed to operate efficiently in a variety of environments. Below are its key technical specifications:

The SIM800L module has several pins for power, communication, and control. Below is the pinout description:

1. Power Supply:

   • Use a stable power source capable of providing 3.7V to 4.2V with at least 2A peak current.
   • A LiPo battery or a DC-DC buck converter is recommended.
   • Add a capacitor (e.g., 1000µF) near the module to handle voltage drops during transmission.

2. Connecting to a Microcontroller:

   • Connect the RXD pin of the SIM800L to the TX pin of the microcontroller.
   • Connect the TXD pin of the SIM800L to the RX pin of the microcontroller.
   • Use a voltage divider or level shifter if the microcontroller operates at 5V logic levels.

3. Antenna and SIM Card:

   • Attach a GSM antenna to the module for better signal reception.
   • Insert a micro SIM card into the SIM card slot.

4. Initialization:

   • Use AT commands to configure and control the module.
   • Ensure the module is registered on the network before sending SMS or making calls.

• Power Supply: The SIM800L is sensitive to voltage fluctuations. Always use a stable power source.
• Antenna Placement: Place the antenna away from other components to avoid interference.
• UART Communication: Set the baud rate to 9600 (default) or configure it using AT commands.
• Network Signal: Ensure the module is in an area with good GSM signal strength.

Below is an example of how to send an SMS using the SIM800L module with an Arduino UNO:

#include <SoftwareSerial.h>

// Define RX and TX pins for SoftwareSerial
SoftwareSerial SIM800L(10, 11); // RX = 10, TX = 11

void setup() {
  // Initialize serial communication with the SIM800L module
  SIM800L.begin(9600); // Default baud rate for SIM800L
  Serial.begin(9600);  // Serial monitor for debugging

  delay(1000); // Allow the module to initialize

  // Send AT command to check communication
  SIM800L.println("AT");
  delay(1000);
  while (SIM800L.available()) {
    Serial.write(SIM800L.read()); // Print response to Serial Monitor
  }

  // Set SMS text mode
  SIM800L.println("AT+CMGF=1"); // Set SMS mode to text
  delay(1000);

  // Send SMS
  SIM800L.println("AT+CMGS=\"+1234567890\""); // Replace with recipient's phone number
  delay(1000);
  SIM800L.println("Hello, this is a test SMS from SIM800L!"); // SMS content
  delay(1000);
  SIM800L.write(26); // Send Ctrl+Z to indicate end of message
}

void loop() {
  // No actions in loop
}

1. Module Not Responding to AT Commands:

   • Ensure the power supply is stable and within the required voltage range.
   • Check the RX and TX connections between the module and the microcontroller.
   • Verify the baud rate is set correctly (default is 9600).

2. SIM Card Not Detected:

   • Ensure the SIM card is inserted correctly.
   • Check if the SIM card is active and has sufficient balance.
   • Verify the SIM card supports 2G networks.

3. No Network Signal:

   • Check the antenna connection and placement.
   • Ensure the module is in an area with good GSM signal coverage.
   • Use the AT+CSQ command to check signal strength (values above 10 are acceptable).

4. Module Restarts During Transmission:

   • This is often caused by insufficient power supply. Use a capacitor to stabilize the voltage.

• Q: Can the SIM800L work with 5V logic levels?
  A: No, the SIM800L operates at 3.3V logic levels. Use a level shifter or voltage divider for 5V systems.

• Q: How do I check if the module is registered on the network?
  A: Use the AT+CREG? command. A response of +CREG: 0,1 indicates successful registration.

• Q: Can the SIM800L connect to the internet?
  A: Yes, the SIM800L supports GPRS for internet connectivity. Use AT commands like AT+CIPSTART to establish a connection.

• Q: What is the maximum SMS length supported?
  A: The SIM800L supports SMS messages up to 160 characters in text mode.

By following this documentation, you can effectively integrate the SIM800L module into your projects and troubleshoot common issues.
