How to Use 12V 45Ah Battery: Examples, Pinouts, and Specs

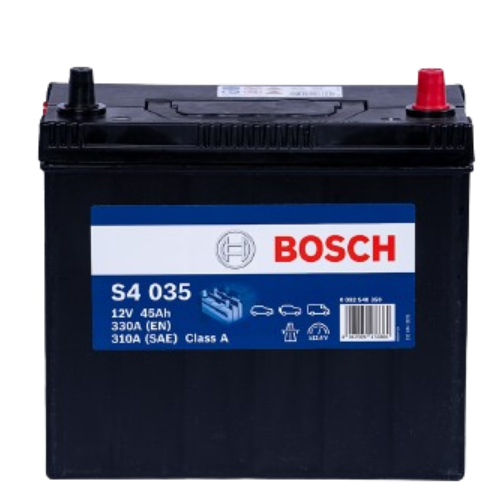

Image of 12V 45Ah BatteryDesign with 12V 45Ah Battery in Cirkit Designer

Introduction

The 12V 45Ah battery is a rechargeable energy storage device that provides a nominal voltage of 12 volts and a capacity of 45 amp-hours (Ah). This battery is commonly available in lead-acid or lithium-ion chemistries, making it versatile for a wide range of applications. It is widely used in automotive systems, solar energy storage, uninterruptible power supplies (UPS), and portable electronic devices. Its high capacity and stable voltage output make it ideal for powering medium to high-power devices and systems.

Explore Projects Built with 12V 45Ah Battery

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Solar Power Management System with AC Backup and Voltage Regulation: A project utilizing 12V 45Ah Battery in a practical application
Solar Power Management System with AC Backup and Voltage Regulation

This circuit is designed to charge a 12V 200Ah battery using power from a solar panel, with a solar charge controller regulating the charging process. An AC source is rectified to DC using a bridge rectifier, which then feeds into a step-up boost power converter to produce a higher voltage output, possibly for an external AC load. Additionally, a DC-DC converter is used to step down the voltage to 5V for use with a 5V connector, likely for low-power devices or logic circuits.

Open Project in Cirkit Designer
Image of Solar-Powered DC Motor Control System with Battery Backup and Power Inverter: A project utilizing 12V 45Ah Battery in a practical application
Solar-Powered DC Motor Control System with Battery Backup and Power Inverter

This circuit is designed to power a DC motor using a 12V 200Ah battery, with the capability to be charged by a solar panel. A solar charge controller is used to manage the charging of the battery from the solar panel and to control the power supply to the motor. A power inverter is connected to the battery for potential AC power applications, and a rocker switch is included to control the on/off state of the motor.

Open Project in Cirkit Designer
Image of 12V Power Supply with HX-M350 Backup Battery Switching: A project utilizing 12V 45Ah Battery in a practical application
12V Power Supply with HX-M350 Backup Battery Switching

This circuit is designed to provide a backup power solution using a 12V 200Ah battery and a 12V power supply, with the HX-M350 module managing the switching between these power sources. The HX-M350 module automatically switches to the battery power when the main 12V power supply fails or is unavailable, ensuring uninterrupted power to the load. There is no microcontroller or additional control logic involved, indicating that the switching mechanism is likely handled entirely by the HX-M350 module itself.

Open Project in Cirkit Designer

Common Applications

Technical Specifications

General Specifications

Parameter Value
Nominal Voltage 12V
Capacity 45Ah
Chemistry Lead-acid or Lithium-ion
Maximum Discharge Current Varies by model (e.g., 450A for 10s)
Charging Voltage Range 13.8V to 14.4V
Operating Temperature -20°C to 50°C (varies by type)
Weight ~12-15 kg (lead-acid) or ~6-8 kg (lithium-ion)
Dimensions (L×W×H) ~197mm × 165mm × 170mm
Cycle Life 300-500 cycles (lead-acid) or 1000+ cycles (lithium-ion)

Pin Configuration and Terminals

The 12V 45Ah battery typically has two terminals: | Terminal | Description | |----------|--------------------------------------| | Positive (+) | Connects to the positive side of the circuit | | Negative (-) | Connects to the negative side of the circuit |

Note: Ensure proper polarity when connecting the battery to avoid damage to the battery or connected devices.

Usage Instructions

How to Use the 12V 45Ah Battery in a Circuit

  1. Determine Load Requirements: Ensure the connected load does not exceed the battery's maximum discharge current.
  2. Connect Terminals:
    • Connect the positive terminal of the battery to the positive input of your circuit.
    • Connect the negative terminal of the battery to the ground or negative input of your circuit.
  3. Use Proper Cables: Use cables rated for the current your application requires to prevent overheating or voltage drops.
  4. Charging the Battery:
    • Use a compatible charger with the correct voltage and current ratings.
    • For lead-acid batteries, use a charger with a float voltage of 13.8V to 14.4V.
    • For lithium-ion batteries, use a charger with a built-in Battery Management System (BMS) for safety.
  5. Monitor Voltage: Avoid discharging the battery below its recommended cutoff voltage (e.g., 10.5V for lead-acid or 11V for lithium-ion) to prevent damage.

Important Considerations and Best Practices

Example: Connecting to an Arduino UNO

The 12V 45Ah battery can be used to power an Arduino UNO via a voltage regulator or DC-DC converter to step down the voltage to 5V. Below is an example circuit and code:

Circuit Setup

  1. Connect the positive terminal of the battery to the input of a 12V-to-5V DC-DC converter.
  2. Connect the output of the converter to the Arduino UNO's 5V and GND pins.
  3. Ensure proper grounding between the battery, converter, and Arduino.

Example Code

// Example code to blink an LED connected to pin 13 of the Arduino UNO
// Ensure the Arduino is powered via the 12V 45Ah battery and a DC-DC converter

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

Issue Possible Cause Solution
Battery not charging Faulty charger or incorrect voltage Check charger compatibility and connections
Rapid discharge Excessive load or aging battery Reduce load or replace the battery
Overheating during use High discharge current or poor ventilation Reduce load or improve ventilation
Low voltage output Battery deeply discharged Recharge the battery immediately
Corroded terminals Exposure to moisture or acid leakage Clean terminals and apply anti-corrosion grease

FAQs

  1. Can I use this battery for solar energy storage?

    • Yes, the 12V 45Ah battery is suitable for small to medium solar energy systems. Ensure the solar charge controller is compatible with the battery type.
  2. How long will the battery last on a full charge?

    • The runtime depends on the load. For example, a 45W device will run for approximately 10 hours (45Ah ÷ 4.5A).
  3. Can I connect multiple batteries in series or parallel?

    • Yes, you can connect batteries in series to increase voltage or in parallel to increase capacity. Ensure all batteries are of the same type and charge level.
  4. How do I dispose of the battery?

    • Dispose of the battery at a certified recycling facility. Do not throw it in regular trash.

By following this documentation, you can safely and effectively use the 12V 45Ah battery in your projects and applications.
