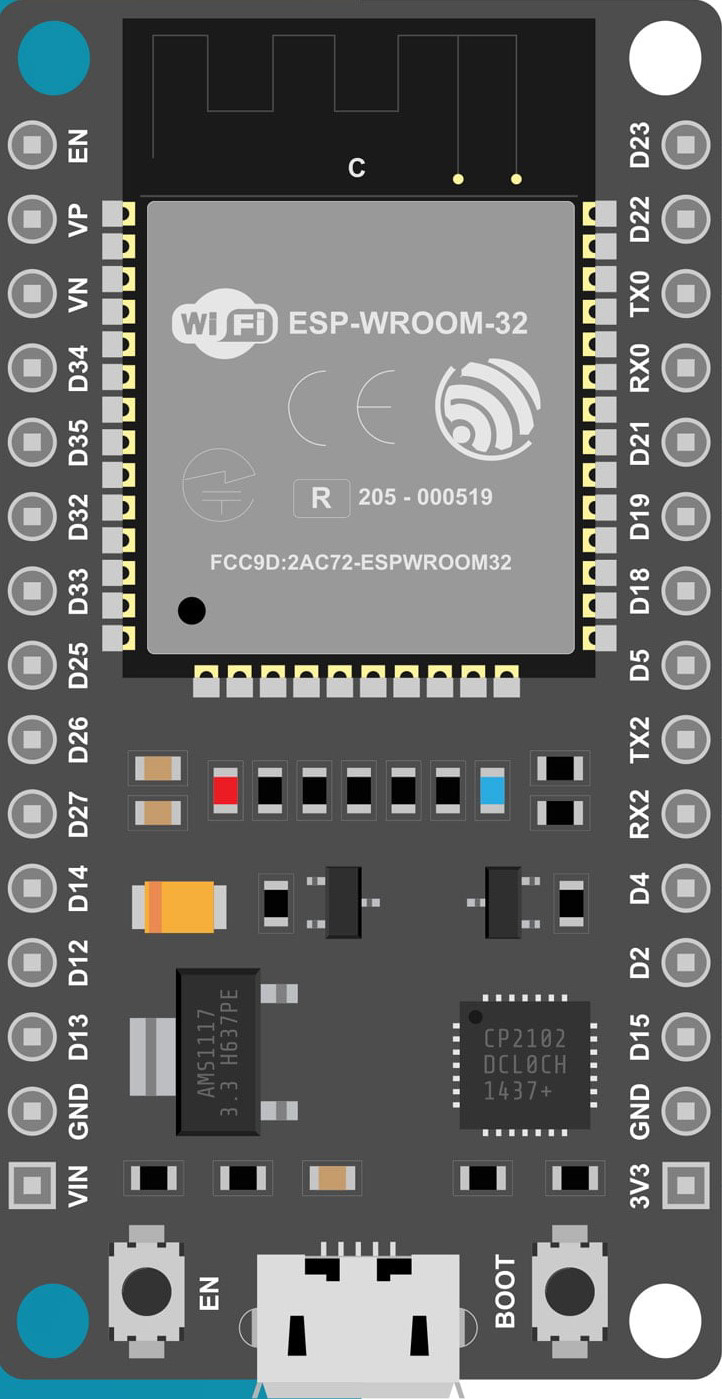

Image of ESP32 Devkit V1
Cirkit Designer LogoDesign with ESP32 Devkit V1 in Cirkit Designer

Introduction

The ESP32 Devkit V1 is a versatile microcontroller development board based on the powerful ESP32 chip. It features built-in Wi-Fi and Bluetooth capabilities, making it an excellent choice for Internet of Things (IoT) applications, smart devices, and rapid prototyping. With its dual-core processor, low power consumption, and extensive GPIO pins, the ESP32 Devkit V1 is suitable for a wide range of projects, from home automation to wearable devices.

Explore Projects Built with ESP32 Devkit V1

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based Environmental Monitoring and Alert System with Solar Charging
Image of mark: A project utilizing ESP32 Devkit V1 in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to various sensors and modules for monitoring and communication purposes. It includes an MQ-2 gas sensor and a DHT11 temperature and humidity sensor, both interfaced with the ESP32 for environmental data collection. The circuit is powered by a 12V battery, regulated to 5V by step-down converters, and includes a solar charge controller connected to a solar panel for battery charging, a UPS module for power management, and a SIM900A module for GSM communication. Additionally, there is a WS2812 RGB LED strip for visual feedback and a piezo buzzer for audio alerts, both controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 Devkit V1 and OLED Display Bitmap Viewer
Image of Esp32_monochromeimage: A project utilizing ESP32 Devkit V1 in a practical application
This circuit consists of an ESP32 Devkit V1 microcontroller connected to a 1.3" OLED display via I2C communication. The ESP32 initializes the OLED display and renders a predefined bitmap image on it.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 and Logic Level Converter-Based Wi-Fi Controlled Interface
Image of Toshiba AC ESP32 devkit v1: A project utilizing ESP32 Devkit V1 in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to a Bi-Directional Logic Level Converter, which facilitates voltage level shifting between the ESP32 and external components. The ESP32 is powered through its VIN pin via an alligator clip cable, and the logic level converter is connected to various pins on the ESP32 to manage different voltage levels for communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Weather and Health Monitoring System with Wi-Fi Connectivity
Image of Health Monitoring System: A project utilizing ESP32 Devkit V1 in a practical application
This circuit uses an ESP32 Devkit V1 microcontroller to interface with multiple sensors, including a DHT11 temperature and humidity sensor, a DS18B20 temperature sensor, and a MAX30102 pulse oximeter and heart-rate sensor. The ESP32 reads data from these sensors and can process or transmit the information for further use.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP32 Devkit V1

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of mark: A project utilizing ESP32 Devkit V1 in a practical application
ESP32-Based Environmental Monitoring and Alert System with Solar Charging
This circuit features an ESP32 Devkit V1 microcontroller connected to various sensors and modules for monitoring and communication purposes. It includes an MQ-2 gas sensor and a DHT11 temperature and humidity sensor, both interfaced with the ESP32 for environmental data collection. The circuit is powered by a 12V battery, regulated to 5V by step-down converters, and includes a solar charge controller connected to a solar panel for battery charging, a UPS module for power management, and a SIM900A module for GSM communication. Additionally, there is a WS2812 RGB LED strip for visual feedback and a piezo buzzer for audio alerts, both controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Esp32_monochromeimage: A project utilizing ESP32 Devkit V1 in a practical application
ESP32 Devkit V1 and OLED Display Bitmap Viewer
This circuit consists of an ESP32 Devkit V1 microcontroller connected to a 1.3" OLED display via I2C communication. The ESP32 initializes the OLED display and renders a predefined bitmap image on it.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Toshiba AC ESP32 devkit v1: A project utilizing ESP32 Devkit V1 in a practical application
ESP32 and Logic Level Converter-Based Wi-Fi Controlled Interface
This circuit features an ESP32 Devkit V1 microcontroller connected to a Bi-Directional Logic Level Converter, which facilitates voltage level shifting between the ESP32 and external components. The ESP32 is powered through its VIN pin via an alligator clip cable, and the logic level converter is connected to various pins on the ESP32 to manage different voltage levels for communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Health Monitoring System: A project utilizing ESP32 Devkit V1 in a practical application
ESP32-Based Smart Weather and Health Monitoring System with Wi-Fi Connectivity
This circuit uses an ESP32 Devkit V1 microcontroller to interface with multiple sensors, including a DHT11 temperature and humidity sensor, a DS18B20 temperature sensor, and a MAX30102 pulse oximeter and heart-rate sensor. The ESP32 reads data from these sensors and can process or transmit the information for further use.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications:

  • IoT devices and smart home systems
  • Wireless sensor networks
  • Robotics and automation
  • Wearable technology
  • Prototyping and educational projects

Technical Specifications

Below are the key technical details of the ESP32 Devkit V1:

Specification Details
Microcontroller ESP32-D0WDQ6 chip
Architecture 32-bit Xtensa® dual-core processor
Clock Speed Up to 240 MHz
Flash Memory 4 MB (varies by model)
SRAM 520 KB
Connectivity Wi-Fi 802.11 b/g/n, Bluetooth v4.2 + BLE
Operating Voltage 3.3V
Input Voltage (VIN) 5V (via USB or external power supply)
GPIO Pins 30 (varies slightly by board version)
ADC Channels 18 (12-bit resolution)
DAC Channels 2
PWM Channels Multiple
Communication Interfaces UART, SPI, I2C, I2S, CAN, Ethernet MAC
Power Consumption Ultra-low power modes available
Dimensions Approx. 54 mm x 27 mm

Pin Configuration

The ESP32 Devkit V1 has a total of 30 pins. Below is the pinout description:

Pin Name Function Description
VIN Power Input Accepts 5V input to power the board.
GND Ground Common ground pin.
3V3 Power Output Provides 3.3V output for external components.
EN Enable Resets the chip when pulled low.
GPIO0 General Purpose I/O Used for boot mode selection or general I/O.
GPIO2 General Purpose I/O Can be used as an output or input pin.
GPIO12-39 General Purpose I/O Configurable pins for digital/analog input/output, PWM, I2C, SPI, etc.
TX0, RX0 UART Communication Default UART pins for serial communication.
ADC1/ADC2 Analog-to-Digital Converter 12-bit ADC channels for analog input.
DAC1, DAC2 Digital-to-Analog Converter Converts digital signals to analog output.
Boot Boot Mode Selection Used to enter bootloader mode during programming.

Note: Some GPIO pins have specific functions or limitations. Refer to the ESP32 datasheet for detailed pin behavior.

Usage Instructions

How to Use the ESP32 Devkit V1 in a Circuit

  1. Powering the Board:

    • Connect the board to your computer via a micro-USB cable for power and programming.
    • Alternatively, supply 5V to the VIN pin and GND for external power.
  2. Programming the Board:

    • Install the Arduino IDE and add the ESP32 board support package.
    • Select the correct board (ESP32 Dev Module) and COM port in the Arduino IDE.
    • Write your code and upload it to the board.
  3. Connecting Peripherals:

    • Use the GPIO pins to connect sensors, actuators, or other peripherals.
    • Ensure that external components operate at 3.3V logic levels to avoid damaging the board.
  4. Wi-Fi and Bluetooth Setup:

    • Use the built-in libraries (WiFi.h and BluetoothSerial.h) to enable wireless communication.

Example Code: Blink an LED

The following example demonstrates how to blink an LED connected to GPIO2:

// Include necessary libraries
void setup() {
  pinMode(2, OUTPUT); // Set GPIO2 as an output pin
}

void loop() {
  digitalWrite(2, HIGH); // Turn the LED on
  delay(1000);           // Wait for 1 second
  digitalWrite(2, LOW);  // Turn the LED off
  delay(1000);           // Wait for 1 second
}

Example Code: Connect to Wi-Fi

This example shows how to connect the ESP32 to a Wi-Fi network:

#include <WiFi.h> // Include the WiFi library

const char* ssid = "Your_SSID";       // Replace with your Wi-Fi network name
const char* password = "Your_Password"; // Replace with your Wi-Fi password

void setup() {
  Serial.begin(115200);               // Start serial communication
  WiFi.begin(ssid, password);         // Connect to Wi-Fi network

  Serial.print("Connecting to Wi-Fi");
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);                       // Wait for connection
    Serial.print(".");
  }
  Serial.println("\nConnected to Wi-Fi!");
}

void loop() {
  // Add your main code here
}

Best Practices:

  • Use level shifters when interfacing with 5V logic devices.
  • Avoid using GPIO pins 6-11 as they are connected to the internal flash memory.
  • Use decoupling capacitors for stable power supply to external components.

Troubleshooting and FAQs

Common Issues and Solutions

  1. Board Not Detected by Computer:

    • Ensure the USB cable is functional and supports data transfer.
    • Install the correct USB-to-serial driver (e.g., CP2102 or CH340).
  2. Upload Fails with Timeout Error:

    • Press and hold the Boot button while uploading the code.
    • Check that the correct COM port and board are selected in the Arduino IDE.
  3. Wi-Fi Connection Fails:

    • Verify the SSID and password are correct.
    • Ensure the Wi-Fi network is within range and not using unsupported security protocols.
  4. GPIO Pin Not Working:

    • Check if the pin is reserved for internal functions (e.g., flash memory).
    • Ensure the pin is not overloaded or shorted.

FAQs

Q: Can the ESP32 Devkit V1 run on battery power?
A: Yes, you can power the board using a 3.7V LiPo battery connected to the 3V3 and GND pins, or a 5V source connected to VIN and GND.

Q: How do I reset the board?
A: Press the EN button to reset the ESP32.

Q: Can I use the ESP32 Devkit V1 with MicroPython?
A: Yes, the ESP32 supports MicroPython. You can flash the MicroPython firmware to the board and use it for programming.

Q: What is the maximum number of devices that can connect via Bluetooth?
A: The ESP32 can connect to up to 7 devices simultaneously using Bluetooth Classic.
