How to Use Relay 2 Channel : Examples, Pinouts, and Specs

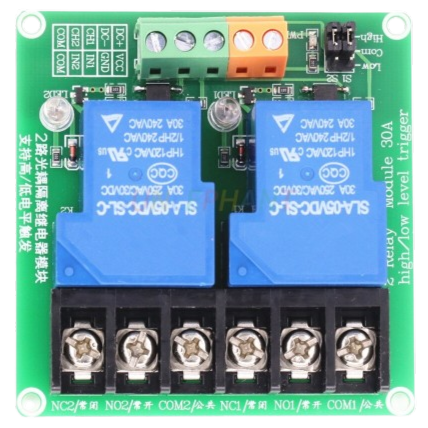

The Relay 2 Channel module, manufactured by 30A with part ID 5V, is a versatile electronic component designed to control high-voltage devices using low-voltage signals. This module is equipped with two independent relays, allowing users to switch two separate circuits. It is commonly used in applications such as home automation, industrial control systems, and remote device management. The module typically features opto-isolation for enhanced safety and reliability, making it suitable for both hobbyist and professional projects.

The following table outlines the key technical details of the Relay 2 Channel module:

The Relay 2 Channel module has the following pin configuration:

Each relay has three output terminals:

1. Power the Module: Connect the VCC pin to a 5V DC power source and the GND pin to the ground of your circuit.
2. Control Signals: Use the IN1 and IN2 pins to control the relays. A LOW signal (0V) activates the corresponding relay, while a HIGH signal (5V) deactivates it.
3. Connect the Load:
   • For devices that should be powered when the relay is activated, connect the load between the COM and NO terminals.
   • For devices that should be powered when the relay is deactivated, connect the load between the COM and NC terminals.
4. Isolation: Ensure proper isolation between the control and load sides to prevent damage to your low-voltage control circuit.

• Power Supply: Use a stable 5V DC power source to avoid erratic relay behavior.
• Load Ratings: Do not exceed the maximum load voltage (250V AC / 30V DC) or current (10A) to prevent damage to the relays.
• Opto-Isolation: The module's opto-isolation enhances safety, but ensure proper grounding to avoid electrical noise.
• Inductive Loads: When controlling inductive loads (e.g., motors), use a flyback diode across the load to suppress voltage spikes.

Below is an example code to control the Relay 2 Channel module using an Arduino UNO:

// Define the control pins for the relays
const int relay1Pin = 7; // Pin connected to IN1
const int relay2Pin = 8; // Pin connected to IN2

void setup() {
  // Set the relay pins as outputs
  pinMode(relay1Pin, OUTPUT);
  pinMode(relay2Pin, OUTPUT);

  // Initialize relays to OFF state (HIGH signal)
  digitalWrite(relay1Pin, HIGH);
  digitalWrite(relay2Pin, HIGH);
}

void loop() {
  // Turn on Relay 1 (LOW signal)
  digitalWrite(relay1Pin, LOW);
  delay(1000); // Keep Relay 1 ON for 1 second

  // Turn off Relay 1 (HIGH signal)
  digitalWrite(relay1Pin, HIGH);
  delay(1000); // Keep Relay 1 OFF for 1 second

  // Turn on Relay 2 (LOW signal)
  digitalWrite(relay2Pin, LOW);
  delay(1000); // Keep Relay 2 ON for 1 second

  // Turn off Relay 2 (HIGH signal)
  digitalWrite(relay2Pin, HIGH);
  delay(1000); // Keep Relay 2 OFF for 1 second
}

1. Relays Not Activating:

   • Ensure the VCC and GND pins are properly connected to a 5V DC power source.
   • Verify that the control signals (IN1 and IN2) are being correctly sent (LOW to activate, HIGH to deactivate).

2. Erratic Relay Behavior:

   • Check for a stable power supply. Voltage fluctuations can cause the relays to behave unpredictably.
   • Ensure proper grounding between the control circuit and the relay module.

3. Load Not Switching:

   • Verify the wiring of the load to the COM, NO, and NC terminals.
   • Ensure the load does not exceed the relay's maximum voltage or current ratings.

Q1: Can I use this module with a 3.3V microcontroller?
A1: Yes, the module can be triggered with 3.3V signals, but ensure the VCC pin is still powered with 5V DC.

Q2: Is it safe to control high-voltage devices with this module?
A2: Yes, the module is designed for high-voltage control. However, always follow proper safety precautions and ensure adequate isolation.

Q3: Can I control both AC and DC loads with this module?
A3: Yes, the relays can handle both AC (up to 250V) and DC (up to 30V) loads, provided the current does not exceed 10A.

Q4: What is the purpose of opto-isolation?
A4: Opto-isolation protects the low-voltage control circuit from high-voltage spikes or noise on the load side, enhancing safety and reliability.
