How to Use MQ-3 Breakout : Examples, Pinouts, and Specs

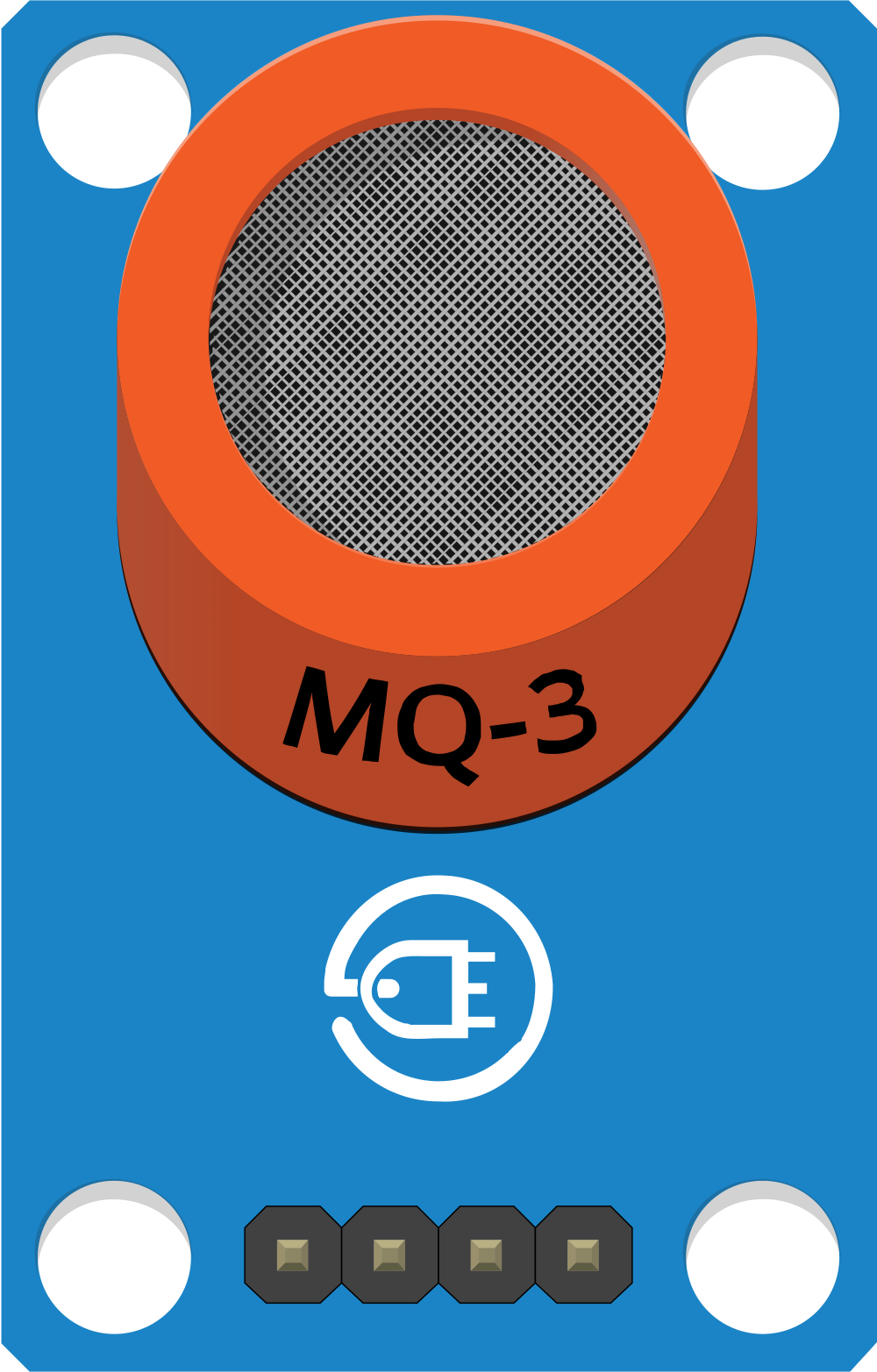

The MQ-3 Breakout is a gas sensor module designed to detect alcohol vapors and other gases. It features a sensitive element that changes its resistance in the presence of specific gases, providing an analog output that can be easily read by microcontrollers. This makes it ideal for applications such as breathalyzers, air quality monitoring, and gas leakage detection systems. The module is compact, easy to use, and widely supported in hobbyist and professional projects.

• Breathalyzer devices for alcohol detection
• Air quality monitoring systems
• Gas leakage detection in industrial environments
• Educational projects involving gas sensing

The MQ-3 Breakout module is built around the MQ-3 gas sensor and includes additional circuitry for ease of use. Below are the key technical details:

The MQ-3 Breakout module typically has four pins. Their configuration and descriptions are as follows:

1. Power the Module: Connect the VCC pin to a 5V DC power source and the GND pin to ground.
2. Read Analog Output: Connect the AOUT pin to an analog input pin on your microcontroller to measure the gas concentration.
3. Digital Output (Optional): Use the DOUT pin if you want a simple threshold-based signal. Adjust the onboard potentiometer to set the threshold level.
4. Preheat the Sensor: Allow the sensor to preheat for at least 24 hours for optimal accuracy. During this time, the sensor stabilizes and provides consistent readings.
5. Calibrate the Sensor: For precise measurements, calibrate the sensor in a controlled environment with known gas concentrations.

• Preheating: The MQ-3 sensor requires a long preheating period (≥ 24 hours) before it can provide accurate readings.
• Ventilation: Ensure proper ventilation around the sensor to avoid saturation or false readings.
• Power Supply: Use a stable 5V power source to avoid fluctuations in the sensor's output.
• Avoid Contamination: Keep the sensor away from water, dust, and other contaminants that could damage the sensitive element.

Below is an example of how to connect and read data from the MQ-3 Breakout using an Arduino UNO:

• Connect the VCC pin of the MQ-3 Breakout to the 5V pin on the Arduino.
• Connect the GND pin of the MQ-3 Breakout to the GND pin on the Arduino.
• Connect the AOUT pin of the MQ-3 Breakout to the A0 analog input pin on the Arduino.

// MQ-3 Alcohol Sensor Example Code
// Reads analog output from the MQ-3 Breakout and prints the value to the Serial Monitor

const int analogPin = A0; // MQ-3 AOUT connected to Arduino A0
int sensorValue = 0;      // Variable to store the sensor reading

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
  Serial.println("MQ-3 Alcohol Sensor Test");
}

void loop() {
  sensorValue = analogRead(analogPin); // Read the analog value from the sensor
  Serial.print("Sensor Value: ");
  Serial.println(sensorValue); // Print the sensor value to the Serial Monitor

  delay(1000); // Wait for 1 second before the next reading
}

• The analogRead() function reads the voltage from the AOUT pin and converts it to a value between 0 and 1023.
• The sensor value can be used to estimate gas concentration after proper calibration.

1. No Output or Incorrect Readings

   • Cause: Insufficient preheating time.
   • Solution: Ensure the sensor has been preheated for at least 24 hours before use.

2. Fluctuating Readings

   • Cause: Unstable power supply or environmental interference.
   • Solution: Use a regulated 5V power source and ensure proper ventilation around the sensor.

3. Sensor Saturation

   • Cause: Exposure to high concentrations of gas for extended periods.
   • Solution: Allow the sensor to recover in clean air before taking new readings.

4. Digital Output Not Triggering

   • Cause: Incorrect threshold setting on the potentiometer.
   • Solution: Adjust the potentiometer to set the desired threshold level.

Q: Can the MQ-3 Breakout detect gases other than alcohol?
A: Yes, the MQ-3 sensor is sensitive to other gases, such as benzene and methane, but it is optimized for alcohol detection.

Q: How do I calibrate the MQ-3 sensor?
A: Calibration involves exposing the sensor to a known concentration of alcohol vapor and adjusting your code or circuit to match the expected output.

Q: Is the MQ-3 Breakout suitable for outdoor use?
A: The sensor is not weatherproof and should be used in controlled environments to avoid damage from moisture or extreme temperatures.

Q: Can I use the MQ-3 Breakout with a 3.3V microcontroller?
A: The MQ-3 Breakout requires a 5V power supply for the heater. However, you can use a voltage divider to step down the analog output for 3.3V microcontrollers.
