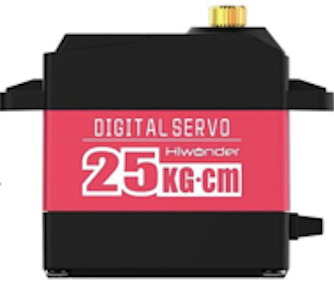

How to Use SERVO: Examples, Pinouts, and Specs

A servo is a rotary actuator that allows for precise control of angular position, velocity, and acceleration. It consists of a motor coupled to a sensor for position feedback, along with a control circuit. Servos are widely used in robotics, automation, remote-controlled vehicles, and industrial machinery due to their ability to provide accurate and repeatable motion.

• Robotics: Controlling robotic arms, grippers, and joints.
• Remote-controlled vehicles: Steering systems and throttle control.
• Automation: Conveyor belt positioning and sorting mechanisms.
• Model building: Aircraft flaps, rudders, and other moving parts.
• Camera gimbals: Stabilizing and positioning cameras.

Below are the general technical specifications for a standard hobby servo. Note that specifications may vary depending on the specific model and manufacturer.

• Operating Voltage: 4.8V to 6V (typical for standard servos)
• Operating Current: 100mA to 1A (depending on load)
• Torque: 1.5 kg·cm to 25 kg·cm (varies by model)
• Speed: 0.1s to 0.2s per 60° (at no load)
• Control Signal: Pulse Width Modulation (PWM)
• Angle Range: 0° to 180° (standard), some models support 360° continuous rotation
• Connector Type: 3-pin (Signal, VCC, GND)

The servo typically has a 3-pin connector with the following configuration:

1. Power Supply: Connect the VCC pin to a 5V power source and the GND pin to the ground of your circuit. Ensure the power supply can handle the current requirements of the servo.
2. Signal Input: Connect the Signal pin to a PWM-capable pin on your microcontroller (e.g., Arduino).
3. PWM Signal: Generate a PWM signal with a pulse width between 1ms and 2ms:
   • 1ms corresponds to 0°.
   • 1.5ms corresponds to 90° (neutral position).
   • 2ms corresponds to 180°.

• Power Supply: Use a separate power supply for the servo if it draws significant current, as this can prevent voltage drops in your circuit.
• Avoid Overloading: Do not exceed the torque rating of the servo to avoid damage.
• Signal Stability: Ensure the PWM signal is stable and within the specified range to prevent erratic behavior.
• Mounting: Secure the servo properly to avoid vibrations or misalignment during operation.

Below is an example of how to control a servo using an Arduino UNO:

#include <Servo.h> // Include the Servo library

Servo myServo; // Create a Servo object to control the servo

void setup() {
  myServo.attach(9); // Attach the servo to pin 9 on the Arduino
}

void loop() {
  myServo.write(0); // Move the servo to 0 degrees
  delay(1000);      // Wait for 1 second

  myServo.write(90); // Move the servo to 90 degrees
  delay(1000);       // Wait for 1 second

  myServo.write(180); // Move the servo to 180 degrees
  delay(1000);        // Wait for 1 second
}

Explanation of the Code:

• The Servo library simplifies controlling the servo.
• The attach() function links the servo to a specific PWM pin.
• The write() function sets the servo's position in degrees (0° to 180°).
• Delays are used to allow the servo to reach the desired position before the next command.

1. Servo Not Moving:

   • Cause: Incorrect wiring or insufficient power supply.
   • Solution: Double-check the connections and ensure the power supply meets the servo's requirements.

2. Erratic Movement:

   • Cause: Unstable PWM signal or electrical noise.
   • Solution: Use a decoupling capacitor near the servo's power pins and ensure the PWM signal is stable.

3. Overheating:

   • Cause: Excessive load or continuous operation at high torque.
   • Solution: Reduce the load or allow the servo to rest periodically.

4. Limited Range of Motion:

   • Cause: Mechanical obstruction or incorrect PWM signal range.
   • Solution: Check for physical obstructions and ensure the PWM signal is within the 1ms to 2ms range.

Q: Can I control multiple servos with one Arduino?
A: Yes, you can control multiple servos using different PWM-capable pins. However, ensure your power supply can handle the combined current draw.

Q: Can I use a servo with a 3.3V microcontroller?
A: Most servos require a 5V signal for proper operation. Use a logic level shifter if your microcontroller operates at 3.3V.

Q: What happens if I send a PWM signal outside the 1ms to 2ms range?
A: The servo may behave unpredictably or attempt to move beyond its physical limits, potentially causing damage.

Q: Can I use a servo for continuous rotation?
A: Yes, some servos are designed for continuous rotation. These are controlled by varying the PWM signal to adjust speed and direction instead of position.
