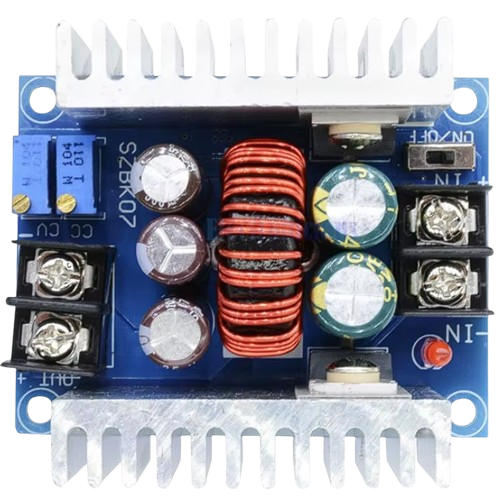

Image of  DC-DC Buck Converter 100W.6A 10-90V > 1.5V-60V [Bill Ludwig]
Cirkit Designer LogoDesign with DC-DC Buck Converter 100W.6A 10-90V > 1.5V-60V [Bill Ludwig] in Cirkit Designer

Introduction

The DC-DC Buck Converter (Part ID: 100W.6A 10-90V > 1.5V-60V) is a high-efficiency step-down voltage regulator designed to convert a higher input voltage (10-90V) to a lower output voltage (1.5V-60V). With a maximum output power of 100W and a current capacity of up to 6A, this converter is ideal for applications requiring stable and adjustable power delivery.
