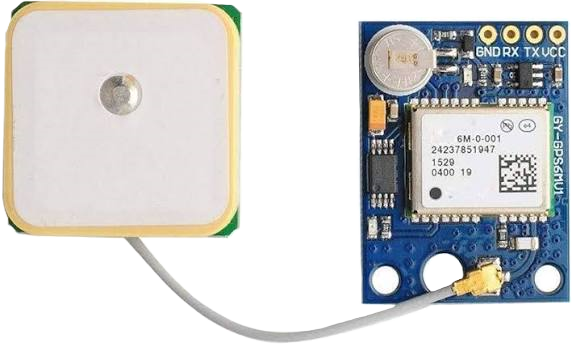

How to Use GPS: Examples, Pinouts, and Specs

The Global Positioning System (GPS) is a satellite-based navigation system that provides accurate location and time information anywhere on Earth. It operates by receiving signals from a network of satellites in orbit, enabling precise positioning and navigation. GPS modules are widely used in various applications, including automotive navigation, geolocation services, asset tracking, and outdoor activities such as hiking and boating.

Common applications and use cases:

• Vehicle navigation systems
• Geolocation and mapping services
• Asset and fleet tracking
• Outdoor sports and adventure equipment
• IoT devices requiring location data
• Emergency response systems

Below are the key technical details for the GPS module:

The GPS module typically has the following pin configuration:

1. Power Supply: Connect the VCC pin to a 3.3V or 5V power source, depending on the module's specifications. Connect the GND pin to the ground of the circuit.
2. UART Communication: Connect the TX pin of the GPS module to the RX pin of your microcontroller (e.g., Arduino UNO). Similarly, connect the RX pin of the GPS module to the TX pin of the microcontroller.
3. Antenna: Ensure the GPS module has a clear view of the sky for optimal satellite signal reception. Use an external antenna if required.
4. Data Parsing: The GPS module outputs NMEA sentences (standard GPS data format) via UART. Parse these sentences to extract useful information such as latitude, longitude, altitude, and time.

• Signal Reception: Place the GPS module in an open area with minimal obstructions for better satellite signal reception.
• Power Supply: Use a stable power source to avoid fluctuations that may affect the module's performance.
• Baud Rate Configuration: Ensure the baud rate of the GPS module matches the microcontroller's UART settings.
• Antenna Placement: If using an external antenna, position it away from sources of electromagnetic interference.

Below is an example of how to interface a GPS module with an Arduino UNO and read GPS data:

#include <SoftwareSerial.h>

// Define RX and TX pins for SoftwareSerial
SoftwareSerial gpsSerial(4, 3); // RX = Pin 4, TX = Pin 3

void setup() {
  Serial.begin(9600);          // Initialize Serial Monitor at 9600 baud
  gpsSerial.begin(9600);       // Initialize GPS module at 9600 baud
  Serial.println("GPS Module Initialized");
}

void loop() {
  // Check if data is available from the GPS module
  while (gpsSerial.available()) {
    char gpsData = gpsSerial.read(); // Read one character from GPS
    Serial.print(gpsData);           // Print the character to Serial Monitor
  }
}

Note: The above code reads raw NMEA sentences from the GPS module and displays them on the Serial Monitor. Use a GPS parsing library (e.g., TinyGPS++) to extract specific data like latitude and longitude.

1. No GPS Data Output:

   • Ensure the GPS module is powered correctly and the connections are secure.
   • Verify that the baud rate of the GPS module matches the microcontroller's UART settings.
   • Check if the GPS module has a clear view of the sky for satellite signal reception.

2. Inaccurate Location Data:

   • Ensure the GPS module is not placed near sources of electromagnetic interference.
   • Wait for the module to acquire a sufficient number of satellite signals (usually indicated by a status LED on the module).

3. Module Not Responding:

   • Double-check the wiring, especially the TX and RX connections.
   • Ensure the microcontroller's UART pins are not being used by other peripherals.

Q1: Can the GPS module work indoors?
A1: GPS modules generally require a clear view of the sky for optimal performance. While they may work indoors near windows, signal reception may be weak or unreliable.

Q2: How do I change the baud rate of the GPS module?
A2: Refer to the module's datasheet for specific commands to configure the baud rate. Typically, this is done by sending configuration commands via UART.

Q3: What is the purpose of the PPS pin?
A3: The Pulse Per Second (PPS) pin provides a precise timing signal that can be used for synchronization in time-sensitive applications.

Q4: Can I use the GPS module with a 3.3V microcontroller?
A4: Yes, most GPS modules are compatible with both 3.3V and 5V systems. Verify the voltage requirements in the module's datasheet before connecting.

By following this documentation, users can effectively integrate and troubleshoot the GPS module in their projects.
