How to Use Battery Holders: Examples, Pinouts, and Specs

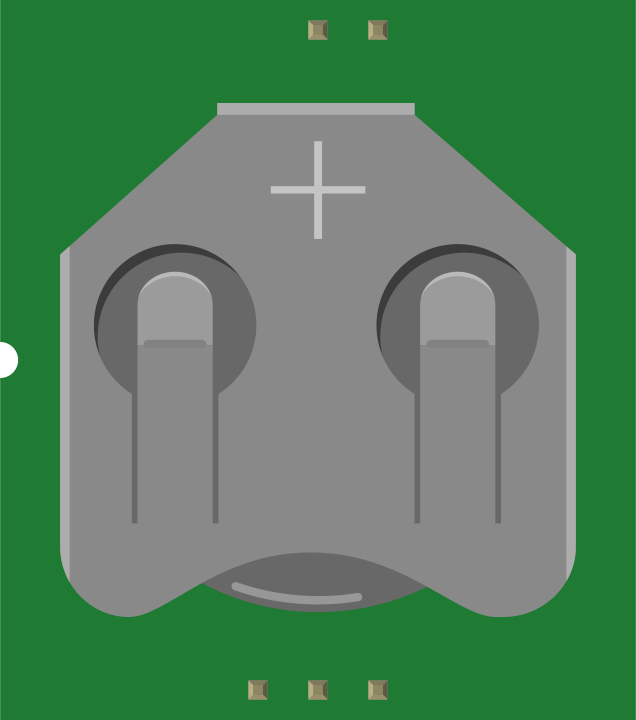

Battery holders are devices used to securely hold batteries in place within a circuit, ensuring proper electrical contact and easy replacement. They are designed to accommodate various battery sizes, such as AA, AAA, 9V, or coin cells, and are available in different configurations, including single-cell and multi-cell holders. Battery holders are essential for portable electronic devices, DIY projects, and prototyping, as they provide a reliable and reusable power source connection.

• Portable electronic devices (e.g., flashlights, remote controls)
• DIY electronics and prototyping
• Robotics and small motorized projects
• Educational kits and STEM projects
• Backup power systems

• Material: Typically made of plastic (ABS or polycarbonate) with metal contacts (nickel-plated or stainless steel).
• Voltage and Current: Depends on the battery type and configuration (e.g., 1.5V for a single AA battery, 3V for two AA batteries in series).
• Battery Compatibility: Supports various battery types, such as AA, AAA, 9V, CR2032, etc.
• Mounting Options: Panel mount, PCB mount, or free-standing.
• Connection Type: Solder tabs, wire leads, or snap connectors.

Battery holders do not have traditional "pins" like ICs but instead feature terminals or leads for electrical connections. Below is a table describing the typical connections:

1. Select the Appropriate Holder: Choose a battery holder that matches the size and type of battery required for your circuit (e.g., AA, AAA, 9V, or coin cell).
2. Insert the Battery: Place the battery into the holder, ensuring the correct polarity. The positive terminal of the battery should align with the "+" marking on the holder, and the negative terminal should align with the "-" marking.
3. Connect to the Circuit:
   • For holders with wire leads, connect the red wire to the positive side of your circuit and the black wire to the negative side.
   • For holders with solder tabs, solder the tabs to the appropriate points on your PCB.
   • For 9V snap connectors, attach the connector to the battery and connect the leads to your circuit.
4. Secure the Holder: If necessary, mount the holder to your project using screws, adhesive, or clips to prevent movement.

• Polarity: Always double-check the polarity of the battery and the holder to avoid damaging your circuit.
• Current Rating: Ensure the battery holder can handle the current requirements of your circuit.
• Mounting: Secure the holder properly to prevent loose connections or accidental dislodging of the battery.
• Environmental Conditions: Use holders made of durable materials for outdoor or high-temperature applications.
• Battery Replacement: Design your project to allow easy access to the battery holder for quick replacement.

Below is an example of connecting a 4xAA battery holder to an Arduino UNO to power it via the VIN pin:

/* Example: Powering Arduino UNO with a 4xAA Battery Holder
   - Ensure the battery holder provides 6V (4x1.5V AA batteries).
   - Connect the positive wire (red) to the VIN pin on the Arduino.
   - Connect the negative wire (black) to the GND pin on the Arduino.
*/

void setup() {
  // No specific setup required for power input
}

void loop() {
  // Your Arduino code goes here
}

1. Loose Connections:

   • Problem: The battery holder's terminals are not making proper contact with the battery.
   • Solution: Ensure the battery is inserted correctly and the terminals are clean and free of corrosion.

2. Incorrect Polarity:

   • Problem: The circuit does not work because the battery is inserted with reversed polarity.
   • Solution: Double-check the "+" and "-" markings on the holder and the battery.

3. Overheating:

   • Problem: The battery holder or wires become hot during operation.
   • Solution: Verify that the current draw of your circuit does not exceed the battery holder's rating.

4. Battery Drain:

   • Problem: Batteries deplete quickly.
   • Solution: Check for short circuits or excessive current draw in your circuit.

• Use a multimeter to verify the voltage at the holder's terminals.
• Inspect the holder for physical damage, such as cracked plastic or bent terminals.
• For soldered connections, ensure the solder joints are secure and free of cold soldering.
• If using rechargeable batteries, ensure they are fully charged and compatible with your circuit.

By following these guidelines, you can effectively use battery holders in your electronic projects and ensure reliable performance.
