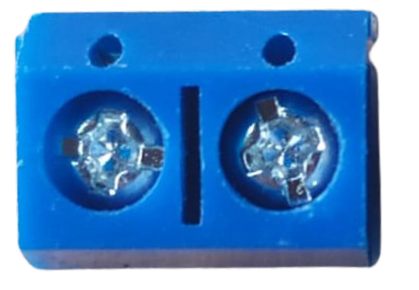

Image of Terminal PCB 2 Pin
Cirkit Designer LogoDesign with Terminal PCB 2 Pin in Cirkit Designer

Introduction

The Terminal PCB 2 Pin is a compact and reliable two-pin terminal block designed for printed circuit boards (PCBs). It provides a convenient way to connect and disconnect wires in electronic circuits without the need for soldering. This component is widely used in applications where secure and removable wire connections are required, such as power supplies, control systems, and prototyping.

Explore Projects Built with Terminal PCB 2 Pin

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
High Voltage Generator with Push Switch Activation
Image of Women Safety Device : A project utilizing Terminal PCB 2 Pin in a practical application
This circuit features a high voltage generator connected to a terminal PCB for output, with its power supply controlled by a 2-pin push switch. The high voltage generator's VCC is connected through the switch, allowing the user to turn the high voltage output on and off. The circuit is powered by a 7.4V battery, with the positive terminal connected to the switch and the negative terminal connected to the generator's ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
5-Pin Connector Synchronization Circuit
Image of UMB_Cable: A project utilizing Terminal PCB 2 Pin in a practical application
This circuit consists of four 5-pin connectors, where two of the connectors are fully interconnected pin-to-pin. The purpose of this setup could be to create a parallel connection between the two 5-pin connectors, possibly for signal distribution or redundancy.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi-Controlled Red LED Indicator
Image of ras1: A project utilizing Terminal PCB 2 Pin in a practical application
This circuit consists of a Raspberry Pi 3B microcontroller connected to a two-pin red LED. The GPIO22 pin of the Raspberry Pi is connected to the anode of the LED, and one of the Raspberry Pi's GND pins is connected to the cathode of the LED. This setup allows the Raspberry Pi to control the LED, turning it on and off by toggling the GPIO22 pin.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi Pico-based PS2 Controller Emulator with ADS1115 Analog Input
Image of PS2Pico: A project utilizing Terminal PCB 2 Pin in a practical application
This circuit appears to be a game controller interface that uses a Raspberry Pi Pico microcontroller to emulate a PS2 controller, interfacing with a PS2 joystick and a PS2 console cable. The ADS1115 analog-to-digital converter is used to read the joystick's analog signals, and the microcontroller's SPI and I2C interfaces are utilized for communication with the PS2 console and the ADS1115, respectively. Additionally, an NPN transistor and a resistor are configured to handle the PS2 controller's acknowledge signal.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Terminal PCB 2 Pin

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Women Safety Device : A project utilizing Terminal PCB 2 Pin in a practical application
High Voltage Generator with Push Switch Activation
This circuit features a high voltage generator connected to a terminal PCB for output, with its power supply controlled by a 2-pin push switch. The high voltage generator's VCC is connected through the switch, allowing the user to turn the high voltage output on and off. The circuit is powered by a 7.4V battery, with the positive terminal connected to the switch and the negative terminal connected to the generator's ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of UMB_Cable: A project utilizing Terminal PCB 2 Pin in a practical application
5-Pin Connector Synchronization Circuit
This circuit consists of four 5-pin connectors, where two of the connectors are fully interconnected pin-to-pin. The purpose of this setup could be to create a parallel connection between the two 5-pin connectors, possibly for signal distribution or redundancy.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ras1: A project utilizing Terminal PCB 2 Pin in a practical application
Raspberry Pi-Controlled Red LED Indicator
This circuit consists of a Raspberry Pi 3B microcontroller connected to a two-pin red LED. The GPIO22 pin of the Raspberry Pi is connected to the anode of the LED, and one of the Raspberry Pi's GND pins is connected to the cathode of the LED. This setup allows the Raspberry Pi to control the LED, turning it on and off by toggling the GPIO22 pin.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of PS2Pico: A project utilizing Terminal PCB 2 Pin in a practical application
Raspberry Pi Pico-based PS2 Controller Emulator with ADS1115 Analog Input
This circuit appears to be a game controller interface that uses a Raspberry Pi Pico microcontroller to emulate a PS2 controller, interfacing with a PS2 joystick and a PS2 console cable. The ADS1115 analog-to-digital converter is used to read the joystick's analog signals, and the microcontroller's SPI and I2C interfaces are utilized for communication with the PS2 console and the ADS1115, respectively. Additionally, an NPN transistor and a resistor are configured to handle the PS2 controller's acknowledge signal.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications:

  • Power distribution in PCBs
  • Connecting external devices to a circuit
  • Prototyping and testing electronic designs
  • Industrial control systems
  • Home automation projects

Technical Specifications

The following table outlines the key technical details of the Terminal PCB 2 Pin:

Parameter Specification
Number of Pins 2
Rated Voltage 300V
Rated Current 10A
Wire Size Compatibility 26-12 AWG
Pitch (Pin Spacing) 5.08 mm (0.2 inches)
Material (Housing) Flame-retardant thermoplastic (UL94-V0)
Contact Material Copper alloy with nickel or tin plating
Operating Temperature -40°C to +105°C
Mounting Type Through-hole

Pin Configuration and Descriptions

The Terminal PCB 2 Pin has two pins for electrical connections and two screw terminals for securing wires. Below is the pin configuration:

Pin Number Description
1 Positive terminal (V+)
2 Negative terminal (V-) or ground

Usage Instructions

How to Use the Terminal PCB 2 Pin in a Circuit:

  1. Mounting the Terminal Block:

    • Insert the two pins of the terminal block into the corresponding through-hole pads on the PCB.
    • Solder the pins securely to the PCB to ensure a stable connection.
  2. Connecting Wires:

    • Strip the insulation from the ends of the wires (approximately 5-7 mm).
    • Insert the stripped wire ends into the screw terminals.
    • Tighten the screws using a small flathead screwdriver to secure the wires.
  3. Testing the Connection:

    • Verify that the wires are firmly held in place and that there is no loose connection.
    • Check for continuity using a multimeter if necessary.

Important Considerations and Best Practices:

  • Ensure the wire gauge is within the supported range (26-12 AWG) for a secure connection.
  • Avoid overtightening the screws, as this may damage the terminal block or the wires.
  • Use proper insulation for wires to prevent short circuits.
  • When designing the PCB, ensure the pin spacing (5.08 mm) matches the terminal block's pitch.

Example: Connecting to an Arduino UNO

The Terminal PCB 2 Pin can be used to connect external power supplies or devices to an Arduino UNO. Below is an example of how to use it to power an Arduino UNO with an external 12V power source:

Circuit Setup:

  1. Connect the positive wire from the 12V power source to the positive terminal (V+).
  2. Connect the negative wire from the power source to the negative terminal (V-).
  3. Solder the terminal block to the PCB and route the connections to the Arduino's VIN and GND pins.

Sample Code:

// Example code to blink an LED connected to an Arduino UNO
// Ensure the Arduino is powered via the Terminal PCB 2 Pin

int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions:

  1. Loose Wire Connections:

    • Issue: Wires are not securely held in the terminal block.
    • Solution: Ensure the screws are tightened properly and the wire gauge is within the supported range.
  2. Intermittent Connections:

    • Issue: The circuit works intermittently or fails under vibration.
    • Solution: Check the solder joints on the PCB for cold soldering and re-solder if necessary.
  3. Overheating:

    • Issue: The terminal block becomes hot during operation.
    • Solution: Ensure the current does not exceed the rated 10A. Use thicker wires if necessary.
  4. Incorrect Polarity:

    • Issue: The circuit does not function as expected.
    • Solution: Double-check the polarity of the connections (V+ and V-).

FAQs:

  • Q: Can I use this terminal block for AC connections?
    A: Yes, the Terminal PCB 2 Pin can handle AC connections up to its rated voltage and current. Ensure proper insulation and safety precautions.

  • Q: Is this terminal block reusable?
    A: Yes, the terminal block allows for repeated connection and disconnection of wires.

  • Q: Can I use this terminal block for high-frequency signals?
    A: It is not recommended for high-frequency signals due to potential signal degradation. It is best suited for power and low-frequency applications.

By following this documentation, you can effectively use the Terminal PCB 2 Pin in your electronic projects.
