How to Use Molex Picoblade Series Header: Examples, Pinouts, and Specs

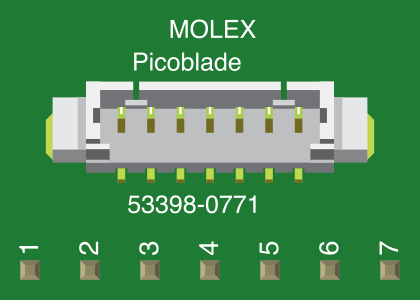

Image of Molex Picoblade Series Header
Cirkit Designer LogoDesign with Molex Picoblade Series Header in Cirkit Designer

Introduction

The Molex Picoblade Series Header (Manufacturer Part ID: 53398-0771) is a compact, low-profile connector designed for high-density applications. It features a reliable locking mechanism, ensuring secure connections in wire-to-board configurations. With its small form factor and robust design, the Picoblade Series Header is ideal for applications requiring space-saving solutions without compromising performance.

Explore Projects Built with Molex Picoblade Series Header

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Peltier-Controlled Thermal Management System with SPST Switch
Image of Mini car refrigerator circuit: A project utilizing Molex Picoblade Series Header in a practical application
This circuit consists of multiple Peltier modules and fans connected in parallel to a digital power supply, with a rocker switch (SPST) controlling the power flow to one of the Peltier modules and multiple fans. The 2.1mm Barrel Jack with Terminal Block serves as the power input connector, and the rocker switch allows for selective enabling or disabling of the connected devices. The circuit is designed to provide cooling or heating through the Peltier modules while the fans assist in heat dissipation or air circulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Smart Lighting System with Adafruit DotStar and MCP23017 I2C GPIO Expander
Image of Christmas-vending-machine-box: A project utilizing Molex Picoblade Series Header in a practical application
This circuit integrates multiple Adafruit DotStar LED strips powered by 12V power supplies, with ground connections managed through WAGO splicing connectors. The setup is designed to provide a stable power and ground distribution for the LED strips, ensuring synchronized and reliable operation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Multi-Stage Voltage Regulation and Indicator LED Circuit
Image of Subramanyak_Power_Circuit: A project utilizing Molex Picoblade Series Header in a practical application
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
5-Pin Connector Synchronization Circuit
Image of UMB_Cable: A project utilizing Molex Picoblade Series Header in a practical application
This circuit consists of four 5-pin connectors, where two of the connectors are fully interconnected pin-to-pin. The purpose of this setup could be to create a parallel connection between the two 5-pin connectors, possibly for signal distribution or redundancy.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Molex Picoblade Series Header

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Mini car refrigerator circuit: A project utilizing Molex Picoblade Series Header in a practical application
Peltier-Controlled Thermal Management System with SPST Switch
This circuit consists of multiple Peltier modules and fans connected in parallel to a digital power supply, with a rocker switch (SPST) controlling the power flow to one of the Peltier modules and multiple fans. The 2.1mm Barrel Jack with Terminal Block serves as the power input connector, and the rocker switch allows for selective enabling or disabling of the connected devices. The circuit is designed to provide cooling or heating through the Peltier modules while the fans assist in heat dissipation or air circulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Christmas-vending-machine-box: A project utilizing Molex Picoblade Series Header in a practical application
Smart Lighting System with Adafruit DotStar and MCP23017 I2C GPIO Expander
This circuit integrates multiple Adafruit DotStar LED strips powered by 12V power supplies, with ground connections managed through WAGO splicing connectors. The setup is designed to provide a stable power and ground distribution for the LED strips, ensuring synchronized and reliable operation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Subramanyak_Power_Circuit: A project utilizing Molex Picoblade Series Header in a practical application
Multi-Stage Voltage Regulation and Indicator LED Circuit
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of UMB_Cable: A project utilizing Molex Picoblade Series Header in a practical application
5-Pin Connector Synchronization Circuit
This circuit consists of four 5-pin connectors, where two of the connectors are fully interconnected pin-to-pin. The purpose of this setup could be to create a parallel connection between the two 5-pin connectors, possibly for signal distribution or redundancy.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Consumer electronics (e.g., cameras, wearables, and handheld devices)
  • Industrial equipment and automation systems
  • Medical devices
  • Automotive electronics
  • Robotics and drones

Technical Specifications

The following table outlines the key technical details of the Molex Picoblade Series Header:

Parameter Specification
Manufacturer Molex
Series Picoblade
Part Number 53398-0771
Connector Type Wire-to-Board
Number of Positions 7
Pitch 1.25 mm
Mounting Type Surface Mount
Current Rating 1 A per contact
Voltage Rating 125 V AC/DC
Operating Temperature -25°C to +85°C
Contact Material Phosphor Bronze
Contact Plating Tin
Housing Material Nylon (UL 94V-0 rated)

Pin Configuration and Descriptions

The Molex Picoblade Series Header has a 7-pin configuration. The table below describes each pin:

Pin Number Description Notes
1 Signal/Power Line 1 Can be used for data or power
2 Signal/Power Line 2 Can be used for data or power
3 Signal/Power Line 3 Can be used for data or power
4 Signal/Power Line 4 Can be used for data or power
5 Signal/Power Line 5 Can be used for data or power
6 Signal/Power Line 6 Can be used for data or power
7 Ground Common ground connection

Usage Instructions

How to Use the Component in a Circuit

  1. PCB Design: Ensure your PCB layout includes a 1.25 mm pitch footprint for the Molex Picoblade Series Header. Verify the orientation and pin alignment.
  2. Soldering: Use surface-mount soldering techniques to attach the header to the PCB. Ensure proper solder joints for reliable connections.
  3. Mating Connector: Use a compatible Molex Picoblade receptacle or cable assembly for wire-to-board connections.
  4. Wiring: Crimp the wires to the mating connector terminals using the appropriate Molex crimping tool for secure and reliable connections.
  5. Connection: Insert the mating connector into the header until the locking mechanism clicks into place, ensuring a secure connection.

Important Considerations and Best Practices

  • Current and Voltage Ratings: Do not exceed the specified current (1 A per contact) and voltage (125 V AC/DC) ratings to avoid damage or failure.
  • Temperature Range: Operate the component within the specified temperature range (-25°C to +85°C) to ensure reliability.
  • Crimping Tools: Use Molex-recommended crimping tools for proper wire termination.
  • Insertion and Removal: Avoid excessive force when inserting or removing the mating connector to prevent damage to the header or connector.

Example: Connecting to an Arduino UNO

The Molex Picoblade Series Header can be used to connect sensors or other peripherals to an Arduino UNO. Below is an example of wiring a sensor to the Arduino using the Picoblade connector:

// Example: Reading a sensor connected via Molex Picoblade to Arduino UNO
// Pin 1: Sensor VCC (connected to Arduino 5V)
// Pin 2: Sensor GND (connected to Arduino GND)
// Pin 3: Sensor Signal (connected to Arduino A0)

const int sensorPin = A0;  // Analog pin connected to the sensor signal
int sensorValue = 0;       // Variable to store the sensor reading

void setup() {
  Serial.begin(9600);      // Initialize serial communication
  pinMode(sensorPin, INPUT); // Set sensor pin as input
}

void loop() {
  sensorValue = analogRead(sensorPin); // Read the sensor value
  Serial.print("Sensor Value: ");
  Serial.println(sensorValue);        // Print the sensor value to the Serial Monitor
  delay(500);                         // Wait for 500 ms before the next reading
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Loose Connections:

    • Issue: The mating connector does not stay securely in place.
    • Solution: Ensure the locking mechanism clicks into place. Verify that the crimped terminals are properly secured to the wires.
  2. Intermittent Signal or Power Loss:

    • Issue: The circuit experiences intermittent disconnections.
    • Solution: Check for cold solder joints on the header. Re-solder if necessary. Inspect the crimped connections for loose wires.
  3. Overheating:

    • Issue: The header or wires become excessively hot during operation.
    • Solution: Ensure the current does not exceed 1 A per contact. Use thicker wires if necessary to handle the current.
  4. Incorrect Pin Mapping:

    • Issue: The circuit does not function as expected.
    • Solution: Double-check the pin configuration and ensure proper connections to the mating connector.

FAQs

Q1: Can the Molex Picoblade Series Header be used in high-vibration environments?
A1: Yes, the locking mechanism provides a secure connection, making it suitable for high-vibration environments such as automotive and industrial applications.

Q2: What tools are recommended for crimping the wires?
A2: Molex recommends using their official crimping tools, such as the Molex 63819-0900, for optimal results.

Q3: Is the header compatible with other Molex series connectors?
A3: No, the Picoblade Series Header is specifically designed for use with Picoblade receptacles and cable assemblies. Compatibility with other series is not guaranteed.

Q4: Can this header handle high-speed data signals?
A4: Yes, the Picoblade Series Header can handle high-speed data signals, provided the circuit design and wiring are optimized for signal integrity.
