How to Use Green led: Examples, Pinouts, and Specs

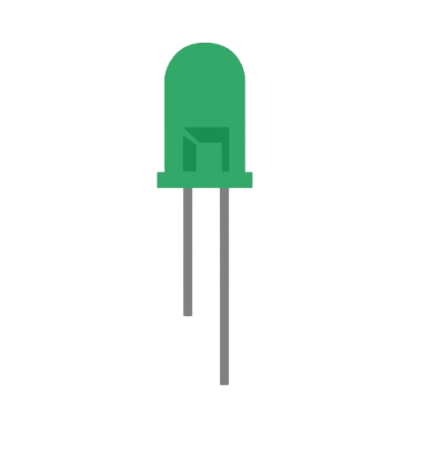

Image of Green led
Cirkit Designer LogoDesign with Green led in Cirkit Designer

Introduction

The Green LED (Manufacturer: Lina, Part ID: 1) is a light-emitting diode that emits green light when an electric current passes through it. It is widely used in electronic circuits as an indicator, status light, or in displays. Its compact size, low power consumption, and long lifespan make it an essential component in various applications.

Explore Projects Built with Green led

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Solar-Powered Green LED Light
Image of Solar Panel : A project utilizing Green led in a practical application
This circuit consists of a solar panel connected to a green LED. The solar panel provides power to the LED, causing it to light up when sufficient sunlight is available.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered IR Sensor with LED Indicator
Image of ir home automation: A project utilizing Green led in a practical application
This circuit uses an IR sensor to control a green LED. When the IR sensor detects an object, it outputs a signal that turns on the LED, powered by a 9V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered LED Array with Rocker Switch Control
Image of yk: A project utilizing Green led in a practical application
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO LED Blinker with Resistor
Image of blink_led_uno: A project utilizing Green led in a practical application
This circuit uses an Arduino UNO to control a green LED. The LED is connected to digital pin 13 through a 200-ohm resistor, and the Arduino code makes the LED blink on and off at one-second intervals.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Green led

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Solar Panel : A project utilizing Green led in a practical application
Solar-Powered Green LED Light
This circuit consists of a solar panel connected to a green LED. The solar panel provides power to the LED, causing it to light up when sufficient sunlight is available.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ir home automation: A project utilizing Green led in a practical application
Battery-Powered IR Sensor with LED Indicator
This circuit uses an IR sensor to control a green LED. When the IR sensor detects an object, it outputs a signal that turns on the LED, powered by a 9V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of yk: A project utilizing Green led in a practical application
Battery-Powered LED Array with Rocker Switch Control
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of blink_led_uno: A project utilizing Green led in a practical application
Arduino UNO LED Blinker with Resistor
This circuit uses an Arduino UNO to control a green LED. The LED is connected to digital pin 13 through a 200-ohm resistor, and the Arduino code makes the LED blink on and off at one-second intervals.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Power and status indicators in electronic devices
  • Signal and warning lights
  • Decorative lighting and displays
  • Educational and DIY electronics projects

Technical Specifications

Below are the key technical details for the Lina Green LED (Part ID: 1):

Parameter Value
Forward Voltage (Vf) 2.0V - 2.4V
Forward Current (If) 20mA (typical)
Maximum Current (Ifmax) 30mA
Wavelength 520nm - 530nm (green light)
Viewing Angle 20° - 30°
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +100°C

Pin Configuration

The Green LED has two pins:

Pin Description
Anode (+) Positive terminal; connect to power via a resistor
Cathode (-) Negative terminal; connect to ground

Usage Instructions

How to Use the Green LED in a Circuit

  1. Determine the Resistor Value: To prevent damage to the LED, always use a current-limiting resistor in series with the LED. Use Ohm's Law to calculate the resistor value: [ R = \frac{V_{supply} - V_f}{I_f} ]

    • (V_{supply}): Supply voltage
    • (V_f): Forward voltage of the LED (2.2V typical)
    • (I_f): Desired forward current (e.g., 20mA)

    Example: For a 5V supply, the resistor value is: [ R = \frac{5V - 2.2V}{0.02A} = 140\Omega ] Use the nearest standard resistor value (e.g., 150Ω).

  2. Connect the LED:

    • Connect the anode (+) to the positive terminal of the power supply through the resistor.
    • Connect the cathode (-) to the ground.
  3. Test the Circuit: Power the circuit and observe the green light emitted by the LED.

Using the Green LED with an Arduino UNO

The Green LED can be easily interfaced with an Arduino UNO for various projects. Below is an example of how to blink the LED:

Circuit Setup

  • Connect the anode (+) of the LED to a digital pin (e.g., pin 13) on the Arduino through a 220Ω resistor.
  • Connect the cathode (-) to the Arduino's GND pin.

Arduino Code

// Blink a Green LED connected to pin 13
// Ensure a 220Ω resistor is used to limit current

const int ledPin = 13; // Pin connected to the LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Important Considerations

  • Polarity: LEDs are polarized components. Ensure the anode and cathode are connected correctly.
  • Resistor Selection: Always use a current-limiting resistor to avoid damaging the LED.
  • Power Supply: Ensure the supply voltage does not exceed the LED's maximum ratings.

Troubleshooting and FAQs

Common Issues

  1. LED Does Not Light Up:

    • Check the polarity of the LED. Ensure the anode is connected to the positive terminal and the cathode to ground.
    • Verify the resistor value. A resistor with too high a value may prevent sufficient current from flowing through the LED.
    • Ensure the power supply is functioning and providing the correct voltage.
  2. LED is Dim:

    • The resistor value may be too high, limiting the current below the recommended forward current.
    • Check the supply voltage to ensure it meets the LED's requirements.
  3. LED Burns Out:

    • This may occur if no resistor is used or if the resistor value is too low, allowing excessive current to flow through the LED.

FAQs

Q: Can I connect the Green LED directly to a 3.3V or 5V power supply?
A: No, you must use a current-limiting resistor to prevent excessive current from damaging the LED.

Q: What happens if I reverse the polarity of the LED?
A: The LED will not light up, but it will not be damaged unless a very high reverse voltage is applied.

Q: Can I use the Green LED with a PWM signal?
A: Yes, the Green LED can be dimmed or controlled using a PWM signal from a microcontroller like an Arduino.

Q: What is the lifespan of the Green LED?
A: The LED has a typical lifespan of 50,000 to 100,000 hours under normal operating conditions.

By following this documentation, you can effectively use the Lina Green LED (Part ID: 1) in your projects and troubleshoot common issues.
