The Pixhawk 2.4.8, manufactured by 3DR, is an open-source flight control hardware designed for a wide range of autonomous vehicles, including drones, planes, and rovers. It is a highly versatile and reliable platform that supports advanced autopilot capabilities, sensor integration, and real-time control. The Pixhawk is widely used in robotics, unmanned aerial vehicles (UAVs), and other autonomous systems due to its robust design and compatibility with open-source software like PX4 and ArduPilot.
Explore Projects Built with pixhawk
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit is designed for a multi-motor application, likely a drone or a similar vehicle, featuring eight brushless motors controlled by two 4-in-1 electronic speed controllers (ESCs). The ESCs are powered by a 3s2p 18650 battery pack and interfaced with a Pixhawk flight controller for motor management. Additionally, the system includes a Raspberry Pi 4B for advanced processing and control, which is connected to a NoIR camera module and a cooling fan, and a power module to supply and monitor the power to the Pixhawk.
This circuit appears to be a control system for a quadcopter drone, featuring four brushless motors each connected to its own electronic speed controller (ESC). The ESCs are interfaced with an ESP32 microcontroller for signal control, and the system includes an MPU-6050 for motion tracking, a PDB XT60 for power distribution, and a Lipo battery as the power source. Additionally, there is an ESP32-CAM module for capturing images, potentially for surveillance or monitoring purposes.
This circuit is a quadcopter control system that includes a LiPo battery, four BLDC motors, four ESCs, a KK2.1.5 flight controller, and an FS-R6B receiver. The KK2.1.5 flight controller manages the ESCs and motors based on input signals from the receiver, which is powered by the LiPo battery.
This circuit is designed to power a Pixhawk module using a LiPo battery. The circuit includes a rocker switch to control the power flow from the battery to a power distribution board (PDB), which then supplies 12V to the Pixhawk module.
Multirotor drones for aerial photography, mapping, and surveying
Fixed-wing planes for long-range autonomous missions
Ground rovers for exploration and research
Robotics projects requiring precise navigation and control
Academic and research projects in autonomous systems
Technical Specifications
The Pixhawk 2.4.8 is equipped with powerful hardware and a wide range of interfaces to support various sensors, peripherals, and communication modules.
Key Technical Details
Processor: 32-bit STM32F427 Cortex-M4 core with FPU
IMU Sensors:
MPU6000 (3-axis accelerometer and gyroscope)
LSM303D (3-axis magnetometer)
MS5611 (barometer)
Input Voltage: 4.8V to 5.4V
Power Supply: Redundant power inputs with automatic failover
Interfaces:
14 PWM/Servo outputs
5 UART ports
I2C, SPI, CAN, and ADC ports
Flash Memory: 2MB
RAM: 256KB
Dimensions: 81.5mm x 50mm x 15.5mm
Weight: 38g

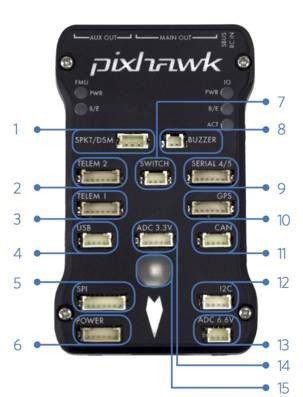

Pin Configuration and Descriptions
The Pixhawk 2.4.8 features multiple connectors for peripherals and sensors. Below is a summary of the key pin configurations:
Power Input
Pin Name
Description
Power Module
Main power input (4.8V to 5.4V)
USB Port
Secondary power input via USB
Backup Power
Redundant power input
PWM/Servo Outputs
Pin Number
Description
PWM 1-8
Main motor/servo outputs
PWM 9-14
Auxiliary motor/servo outputs
Communication Ports
Port Name
Description
UART1-5
Serial communication ports
I2C
Interface for external sensors
SPI
High-speed sensor interface
CAN
Communication for UAVCAN devices
Other Interfaces
Port Name
Description
ADC
Analog-to-digital converter inputs
SBUS
RC receiver input
GPS
GPS module connection
Telemetry 1/2
Telemetry radio connection
Usage Instructions
The Pixhawk 2.4.8 is designed to be user-friendly, but proper setup and configuration are essential for optimal performance.
How to Use the Pixhawk in a Circuit
Powering the Pixhawk:
Connect the power module to the "Power" port on the Pixhawk.
Ensure the input voltage is within the range of 4.8V to 5.4V.
Optionally, connect a USB cable for secondary power during configuration.
Connecting Peripherals:
Attach motors or servos to the PWM output pins.
Connect the GPS module to the GPS port.
Attach telemetry radios to the Telemetry 1 or 2 ports.
Connect additional sensors (e.g., rangefinders, cameras) to the I2C or SPI ports.
Software Configuration:
Install a ground control software like QGroundControl or Mission Planner.
Flash the desired firmware (PX4 or ArduPilot) to the Pixhawk via USB.
Calibrate the sensors, radio, and ESCs using the ground control software.
Testing and Deployment:
Perform a pre-flight check to ensure all systems are functioning correctly.
Test the vehicle in a controlled environment before full deployment.
Important Considerations and Best Practices
Always use a reliable power source to prevent in-flight failures.
Ensure proper vibration damping for the Pixhawk to avoid sensor errors.
Regularly update the firmware to benefit from the latest features and bug fixes.
Use shielded cables for communication ports to minimize interference.
Perform thorough pre-flight checks, including GPS lock and sensor calibration.
Example Code for Arduino UNO Integration
The Pixhawk can communicate with an Arduino UNO via UART. Below is an example code snippet for reading MAVLink messages from the Pixhawk:
#include <mavlink.h> // Include MAVLink library
// Define the serial port for Pixhawk communication
#define PIXHAWK_SERIAL Serial1
void setup() {
// Initialize serial communication with Pixhawk
PIXHAWK_SERIAL.begin(57600); // Set baud rate to 57600
Serial.begin(9600); // For debugging on the Arduino Serial Monitor
}
void loop() {
mavlink_message_t msg;
mavlink_status_t status;
// Check if data is available from Pixhawk
while (PIXHAWK_SERIAL.available()) {
uint8_t c = PIXHAWK_SERIAL.read();
// Parse incoming MAVLink message
if (mavlink_parse_char(MAVLINK_COMM_0, c, &msg, &status)) {
// Print message ID and sequence number for debugging
Serial.print("Message ID: ");
Serial.print(msg.msgid);
Serial.print(", Sequence: ");
Serial.println(msg.seq);
}
}
}
Troubleshooting and FAQs
Common Issues and Solutions
Pixhawk Not Powering On:
Cause: Insufficient or incorrect power supply.
Solution: Verify the power module connection and ensure the input voltage is within the specified range (4.8V to 5.4V).
No GPS Lock:
Cause: Poor satellite visibility or incorrect GPS module connection.
Solution: Ensure the GPS module is connected to the correct port and placed in an open area with a clear view of the sky.
Telemetry Not Working:
Cause: Incorrect baud rate or wiring.
Solution: Verify the telemetry radio connections and ensure the baud rate matches the ground control software settings.
Unstable Flight:
Cause: Improper sensor calibration or vibration issues.
Solution: Recalibrate the sensors and ensure the Pixhawk is mounted on vibration-damping material.
FAQs
Q: Can the Pixhawk 2.4.8 be used with PX4 firmware?
A: Yes, the Pixhawk 2.4.8 is fully compatible with PX4 and ArduPilot firmware.
Q: What is the maximum number of PWM outputs supported?
A: The Pixhawk 2.4.8 supports up to 14 PWM outputs (8 main and 6 auxiliary).
Q: How do I update the firmware on the Pixhawk?
A: Use a ground control software like QGroundControl or Mission Planner to flash the latest firmware via USB.
Q: Can I connect multiple sensors to the Pixhawk?
A: Yes, the Pixhawk supports multiple sensors via I2C, SPI, and ADC ports.
This concludes the documentation for the Pixhawk 2.4.8. For further assistance, refer to the official 3DR support resources or community forums.
