How to Use 4ohm 5W AIYIMA speaker: Examples, Pinouts, and Specs

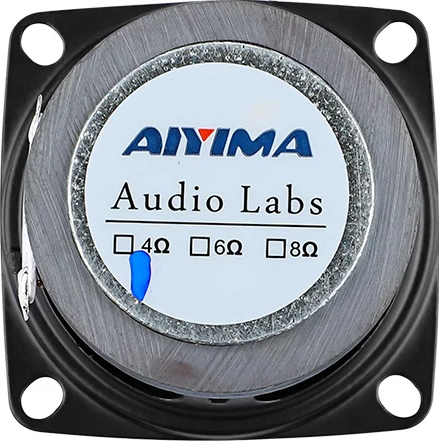

The 4Ω 5W AIYIMA Speaker is a compact and efficient audio output device designed for a variety of audio applications. With a 4-ohm impedance and a power rating of 5 watts, this speaker is ideal for small audio systems, DIY electronics projects, and portable sound devices. Manufactured in China, this speaker offers reliable performance in a lightweight and durable design.

• DIY audio projects and hobbyist electronics
• Portable speaker systems
• Embedded systems requiring audio output
• Educational projects and prototyping
• Small home audio systems

Below are the key technical details for the 4Ω 5W AIYIMA Speaker:

The speaker has two terminals for electrical connections:

1. Connect to an Amplifier: The speaker requires an audio amplifier to drive it effectively. Ensure the amplifier is compatible with the speaker's 4Ω impedance and 5W power rating.
2. Wiring:
   • Connect the positive terminal of the speaker to the positive output of the amplifier.
   • Connect the negative terminal of the speaker to the ground or negative output of the amplifier.
3. Power Considerations: Ensure the amplifier does not exceed the speaker's power rating of 5W to avoid damage.
4. Mounting: Secure the speaker in an enclosure or mounting bracket to enhance sound quality and protect the component.

• Avoid Overloading: Do not exceed the 5W power rating, as this may damage the speaker.
• Enclosure Design: For optimal sound quality, use a properly designed enclosure to minimize distortion and enhance bass response.
• Polarity: Ensure correct polarity when connecting the speaker to avoid phase cancellation in multi-speaker setups.
• Environmental Conditions: Avoid exposing the speaker to moisture, extreme temperatures, or physical shocks.

The 4Ω 5W AIYIMA Speaker can be used with an Arduino UNO by pairing it with an audio amplifier module, such as the PAM8403. Below is an example of how to generate simple tones using the Arduino tone() function.

1. Connect the PAM8403 amplifier module to the Arduino UNO.
2. Connect the speaker to the amplifier module's output terminals.

// Example code to generate tones using an Arduino UNO and a 4Ω 5W speaker
// connected via a PAM8403 amplifier module.

#define SPEAKER_PIN 8  // Pin connected to the amplifier input

void setup() {
  // No setup required for tone generation
}

void loop() {
  // Generate a 1kHz tone for 500ms
  tone(SPEAKER_PIN, 1000, 500);
  delay(1000);  // Wait for 1 second

  // Generate a 500Hz tone for 500ms
  tone(SPEAKER_PIN, 500, 500);
  delay(1000);  // Wait for 1 second
}

Note: The Arduino cannot directly drive the speaker. Always use an amplifier module to avoid damaging the microcontroller.

1. Can I connect the speaker directly to an Arduino?

   • No, the Arduino cannot provide sufficient power to drive the speaker. Use an amplifier module.

2. What type of amplifier should I use?

   • Use an amplifier compatible with 4Ω impedance and a power output of up to 5W, such as the PAM8403.

3. Can I use this speaker for stereo sound?

   • Yes, but you will need two speakers and a stereo amplifier to create a stereo setup.

4. How can I improve the sound quality?

   • Use a well-designed enclosure and ensure the amplifier is not overdriving the speaker.

By following this documentation, you can effectively integrate the 4Ω 5W AIYIMA Speaker into your audio projects and achieve optimal performance.
