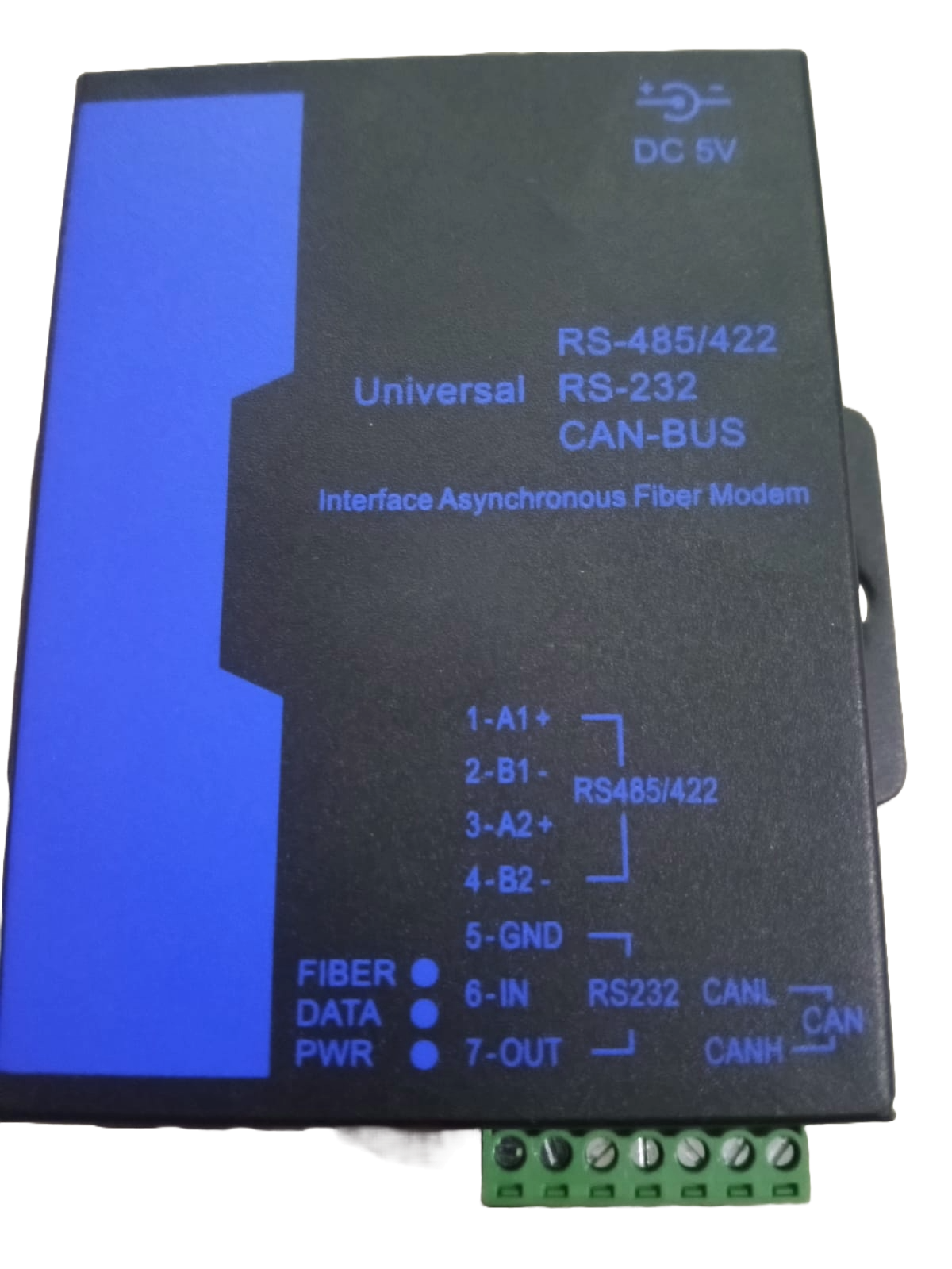

Image of Universal RS-485 Interface Asyschronous Fiber Modem
Cirkit Designer LogoDesign with Universal RS-485 Interface Asyschronous Fiber Modem in Cirkit Designer

Introduction

The Universal RS-485 Interface Asynchronous Fiber Modem is a robust communication device designed to extend RS-485 signals over long distances using fiber optic cables. It converts electrical RS-485 signals into optical signals, ensuring high-speed, interference-free data transmission. This modem is ideal for industrial environments where electromagnetic interference (EMI) or long-distance communication is a concern.

Explore Projects Built with Universal RS-485 Interface Asyschronous Fiber Modem

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
STM32 and Arduino UNO Based Dual RS485 Communication Interface
Image of STM to Arduino RS485: A project utilizing Universal RS-485 Interface Asyschronous Fiber Modem in a practical application
This circuit consists of two microcontrollers, an STM32F103C8T6 and an Arduino UNO, each interfaced with separate RS485 transceiver modules for serial communication. The STM32F103C8T6 controls the RE (Receiver Enable) and DE (Driver Enable) pins of one RS485 module to manage its operation, and communicates via the A9 and A10 pins for DI (Data Input) and RO (Receiver Output), respectively. The Arduino UNO is similarly connected to another RS485 module, with digital pins D2 and D3 interfacing with DI and RO, and D8 controlling both RE and DE. The RS485 modules are connected to each other through their A and B differential communication lines, enabling serial data exchange between the two microcontrollers over a robust and long-distance capable RS485 network.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP8266 NodeMCU with LoRa and RS-485 Communication and Ethernet Connectivity
Image of Wiring Diagram LoRa: A project utilizing Universal RS-485 Interface Asyschronous Fiber Modem in a practical application
This circuit serves as a multi-protocol communication hub featuring two ESP8266 NodeMCUs for processing, each connected to a LoRa Ra-02 SX1278 for long-range wireless communication. One NodeMCU is also connected to an RS-485 module for serial communication and a W5500 Ethernet module for network connectivity, with MB102 modules supplying power.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO and Relay-Controlled RS485 Communication System
Image of Diagrama: A project utilizing Universal RS-485 Interface Asyschronous Fiber Modem in a practical application
This circuit features an Arduino UNO microcontroller interfaced with a 4-channel relay module and a UART TTL to RS485 converter. The Arduino controls the relays via digital pins and communicates with the RS485 converter for serial communication, enabling control of external devices and communication over long distances.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Based RS-485 Communication System with Pushbutton Activation and LED Indicator
Image of tp: A project utilizing Universal RS-485 Interface Asyschronous Fiber Modem in a practical application
This circuit consists of two Arduino UNO microcontrollers interfaced with RS-485 modules to enable serial communication over a differential bus, allowing for robust long-distance data transmission. One Arduino is configured as a master, sending a message when a pushbutton is pressed, while the other Arduino is set up as a slave, responding by lighting up an LED when the correct message is received. The system is powered by two separate 9V batteries, and a resistor is used to limit the current through the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Universal RS-485 Interface Asyschronous Fiber Modem

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of STM to Arduino RS485: A project utilizing Universal RS-485 Interface Asyschronous Fiber Modem in a practical application
STM32 and Arduino UNO Based Dual RS485 Communication Interface
This circuit consists of two microcontrollers, an STM32F103C8T6 and an Arduino UNO, each interfaced with separate RS485 transceiver modules for serial communication. The STM32F103C8T6 controls the RE (Receiver Enable) and DE (Driver Enable) pins of one RS485 module to manage its operation, and communicates via the A9 and A10 pins for DI (Data Input) and RO (Receiver Output), respectively. The Arduino UNO is similarly connected to another RS485 module, with digital pins D2 and D3 interfacing with DI and RO, and D8 controlling both RE and DE. The RS485 modules are connected to each other through their A and B differential communication lines, enabling serial data exchange between the two microcontrollers over a robust and long-distance capable RS485 network.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Wiring Diagram LoRa: A project utilizing Universal RS-485 Interface Asyschronous Fiber Modem in a practical application
ESP8266 NodeMCU with LoRa and RS-485 Communication and Ethernet Connectivity
This circuit serves as a multi-protocol communication hub featuring two ESP8266 NodeMCUs for processing, each connected to a LoRa Ra-02 SX1278 for long-range wireless communication. One NodeMCU is also connected to an RS-485 module for serial communication and a W5500 Ethernet module for network connectivity, with MB102 modules supplying power.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Diagrama: A project utilizing Universal RS-485 Interface Asyschronous Fiber Modem in a practical application
Arduino UNO and Relay-Controlled RS485 Communication System
This circuit features an Arduino UNO microcontroller interfaced with a 4-channel relay module and a UART TTL to RS485 converter. The Arduino controls the relays via digital pins and communicates with the RS485 converter for serial communication, enabling control of external devices and communication over long distances.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of tp: A project utilizing Universal RS-485 Interface Asyschronous Fiber Modem in a practical application
Arduino UNO Based RS-485 Communication System with Pushbutton Activation and LED Indicator
This circuit consists of two Arduino UNO microcontrollers interfaced with RS-485 modules to enable serial communication over a differential bus, allowing for robust long-distance data transmission. One Arduino is configured as a master, sending a message when a pushbutton is pressed, while the other Arduino is set up as a slave, responding by lighting up an LED when the correct message is received. The system is powered by two separate 9V batteries, and a resistor is used to limit the current through the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Industrial automation and control systems
  • Power plant monitoring and control
  • Oil and gas pipeline monitoring
  • Data communication in noisy environments
  • Long-distance RS-485 communication (up to several kilometers)

Technical Specifications

Key Technical Details

Parameter Specification
Communication Standard RS-485
Fiber Type Single-mode or Multi-mode
Transmission Distance Up to 20 km (single-mode fiber)
Baud Rate 300 bps to 115.2 kbps
Power Supply 9–24 V DC
Power Consumption < 2 W
Operating Temperature -40°C to +85°C
Dimensions 110 mm x 80 mm x 25 mm
Connector Type (Fiber) SC/FC/ST (varies by model)
Connector Type (RS-485) Terminal block or DB9

Pin Configuration and Descriptions

RS-485 Terminal Block Pinout

Pin Number Label Description
1 A(+) RS-485 Data Line A (non-inverting)
2 B(-) RS-485 Data Line B (inverting)
3 GND Ground

Power Input Terminal Block Pinout

Pin Number Label Description
1 V+ Positive DC power input (9–24 V)
2 V- Negative DC power input (ground)

Fiber Optic Port

Port Type Description
TX Transmit optical signal
RX Receive optical signal

Usage Instructions

How to Use the Component in a Circuit

  1. Power Connection: Connect the power supply to the V+ and V- terminals. Ensure the voltage is within the specified range (9–24 V DC).
  2. RS-485 Connection: Connect the RS-485 device to the A(+), B(-), and GND terminals of the modem.
  3. Fiber Optic Connection:
    • Use a compatible fiber optic cable (single-mode or multi-mode, depending on the modem model).
    • Connect the TX port of the modem to the RX port of the remote modem, and vice versa.
  4. Baud Rate Configuration: Ensure the baud rate of the RS-485 device matches the modem's supported range (300 bps to 115.2 kbps).
  5. Testing: Power on the modem and verify the communication link by sending and receiving data between the RS-485 devices.

Important Considerations and Best Practices

  • Fiber Type: Use the correct fiber optic cable type (single-mode or multi-mode) as specified for the modem.
  • Cable Length: Ensure the fiber optic cable length does not exceed the maximum supported distance (e.g., 20 km for single-mode fiber).
  • Grounding: Properly ground the RS-485 system to prevent electrical noise and ensure reliable communication.
  • Termination Resistors: Use termination resistors (typically 120 ohms) at both ends of the RS-485 bus to minimize signal reflections.
  • Environmental Conditions: Install the modem in a location within the specified operating temperature range (-40°C to +85°C).

Example: Connecting to an Arduino UNO

The Universal RS-485 Interface Asynchronous Fiber Modem can be used with an Arduino UNO for data communication. Below is an example of Arduino code to send data over RS-485:

#include <SoftwareSerial.h>

// Define RS-485 pins for Arduino
#define RS485_TX 10  // Arduino pin connected to RS-485 TX
#define RS485_RX 11  // Arduino pin connected to RS-485 RX
#define RS485_DE 9   // Arduino pin to control RS-485 Driver Enable

SoftwareSerial rs485(RS485_RX, RS485_TX); // Initialize SoftwareSerial

void setup() {
  pinMode(RS485_DE, OUTPUT); // Set Driver Enable pin as output
  digitalWrite(RS485_DE, LOW); // Set DE to LOW (Receive mode)
  rs485.begin(9600); // Start RS-485 communication at 9600 baud
  Serial.begin(9600); // Start Serial Monitor communication
}

void loop() {
  // Send data over RS-485
  digitalWrite(RS485_DE, HIGH); // Enable RS-485 Driver (Transmit mode)
  rs485.println("Hello from Arduino!"); // Send data
  digitalWrite(RS485_DE, LOW); // Disable RS-485 Driver (Receive mode)

  delay(1000); // Wait for 1 second before sending again
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Communication Between Devices

    • Cause: Incorrect wiring of RS-485 or fiber optic cables.
    • Solution: Verify the connections. Ensure A(+) is connected to A(+), B(-) to B(-), and TX to RX.
  2. Data Loss or Corruption

    • Cause: Mismatched baud rates or missing termination resistors.
    • Solution: Ensure the baud rate of all devices matches and install 120-ohm termination resistors at both ends of the RS-485 bus.
  3. Fiber Link Not Working

    • Cause: Incorrect fiber type or damaged cable.
    • Solution: Use the correct fiber optic cable type (single-mode or multi-mode) and inspect the cable for damage.
  4. Modem Not Powering On

    • Cause: Incorrect power supply voltage or loose connections.
    • Solution: Verify the power supply voltage is within the 9–24 V DC range and check the connections.

FAQs

  • Q: Can I use this modem with RS-232 devices?
    A: No, this modem is designed specifically for RS-485 communication. Use an RS-232 to RS-485 converter if needed.

  • Q: What is the maximum baud rate supported?
    A: The modem supports baud rates up to 115.2 kbps.

  • Q: Can I use this modem outdoors?
    A: Yes, as long as it is installed in a weatherproof enclosure and within the specified temperature range.

  • Q: How do I know if the fiber link is active?
    A: Most models include LED indicators for TX and RX activity. Check the LEDs for signal transmission.
