How to Use Buzzer: Examples, Pinouts, and Specs

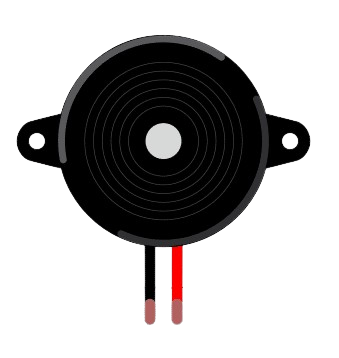

Image of Buzzer
Cirkit Designer LogoDesign with Buzzer in Cirkit Designer

Introduction

A buzzer is an audio signaling device that produces sound when an electric current passes through it. It is widely used in various electronic applications to provide audible alerts or notifications. Buzzers are commonly found in alarms, timers, and notification systems, making them an essential component in both consumer and industrial electronics. They are available in two main types: active buzzers, which generate sound when powered, and passive buzzers, which require an external signal to produce sound.

Explore Projects Built with Buzzer

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO Controlled School Bell System with DS3231 RTC and Relay Module
Image of automatic bell system: A project utilizing Buzzer in a practical application
This circuit is designed as an automatic school bell system controlled by an Arduino UNO microcontroller. The Arduino is programmed to ring a buzzer at the start of each school period, with a total of 6 periods defined in the code. The DS3231 Real-Time Clock (RTC) module is used for accurate timekeeping, and a relay module interfaces the Arduino with the buzzer to handle the higher current required to drive the buzzer.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered IR Sensor and Buzzer Alarm System
Image of blindstick: A project utilizing Buzzer in a practical application
This circuit consists of an IR sensor and a buzzer powered by a 9V battery. The IR sensor detects an object and triggers the buzzer to sound an alarm when an object is detected.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Buzzer Circuit
Image of  Buzzer with AA battery: A project utilizing Buzzer in a practical application
This circuit consists of a simple buzzer connected to a 3V battery source. The positive terminal of the battery is connected to the buzzer's power input, and the negative terminal is connected to the buzzer's ground. The circuit is designed to power the buzzer continuously, producing a constant sound or tone as long as the battery provides sufficient voltage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Voice-Controlled Buzzer System with VC-02 Module
Image of vc: A project utilizing Buzzer in a practical application
This circuit features a VC-02 voice recognition module connected to a buzzer and powered by a 5V battery. The VC-02 module is programmed to listen for specific voice commands and, upon recognizing the command 'can you make a sound', it activates the buzzer for one second. The circuit is designed for voice-activated sound generation, with the VC-02 module handling voice recognition and serial communication, and the buzzer providing audible feedback.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Buzzer

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of automatic bell system: A project utilizing Buzzer in a practical application
Arduino UNO Controlled School Bell System with DS3231 RTC and Relay Module
This circuit is designed as an automatic school bell system controlled by an Arduino UNO microcontroller. The Arduino is programmed to ring a buzzer at the start of each school period, with a total of 6 periods defined in the code. The DS3231 Real-Time Clock (RTC) module is used for accurate timekeeping, and a relay module interfaces the Arduino with the buzzer to handle the higher current required to drive the buzzer.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of blindstick: A project utilizing Buzzer in a practical application
Battery-Powered IR Sensor and Buzzer Alarm System
This circuit consists of an IR sensor and a buzzer powered by a 9V battery. The IR sensor detects an object and triggers the buzzer to sound an alarm when an object is detected.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of  Buzzer with AA battery: A project utilizing Buzzer in a practical application
Battery-Powered Buzzer Circuit
This circuit consists of a simple buzzer connected to a 3V battery source. The positive terminal of the battery is connected to the buzzer's power input, and the negative terminal is connected to the buzzer's ground. The circuit is designed to power the buzzer continuously, producing a constant sound or tone as long as the battery provides sufficient voltage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of vc: A project utilizing Buzzer in a practical application
Voice-Controlled Buzzer System with VC-02 Module
This circuit features a VC-02 voice recognition module connected to a buzzer and powered by a 5V battery. The VC-02 module is programmed to listen for specific voice commands and, upon recognizing the command 'can you make a sound', it activates the buzzer for one second. The circuit is designed for voice-activated sound generation, with the VC-02 module handling voice recognition and serial communication, and the buzzer providing audible feedback.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

Below are the general technical specifications for a typical buzzer. Note that specific values may vary depending on the manufacturer and model.

Key Specifications

  • Operating Voltage: 3V to 12V (commonly 5V)
  • Operating Current: 10mA to 50mA
  • Sound Frequency: 2kHz to 4kHz (typical)
  • Sound Pressure Level (SPL): 85dB to 100dB at 10cm
  • Type: Active or Passive
  • Polarity: Some buzzers are polarized (marked with + and -), while others are not.

Pin Configuration and Descriptions

The pin configuration of a buzzer is straightforward, as it typically has two pins. Below is a table describing the pins:

Pin Name Description
Positive (+) Connect to the positive terminal of the power supply or signal source.
Negative (-) Connect to the ground (GND) of the circuit.

For non-polarized buzzers, the pins can be connected in either orientation.

Usage Instructions

How to Use the Buzzer in a Circuit

  1. Determine the Type of Buzzer: Identify whether the buzzer is active or passive. Active buzzers only require a DC voltage to operate, while passive buzzers need an oscillating signal (e.g., from a microcontroller).
  2. Connect the Buzzer:
    • For an active buzzer, connect the positive pin to the power supply (e.g., 5V) and the negative pin to ground.
    • For a passive buzzer, connect the positive pin to a signal source (e.g., a PWM pin on a microcontroller) and the negative pin to ground.
  3. Add a Current-Limiting Resistor (if needed): To prevent excessive current, use a resistor in series with the buzzer. A typical value is 220Ω to 1kΩ, depending on the buzzer's specifications.
  4. Test the Buzzer: Apply power or a signal to the buzzer and verify that it produces sound.

Example: Connecting a Buzzer to an Arduino UNO

Below is an example of how to connect and control a passive buzzer using an Arduino UNO:

Circuit Diagram

  • Connect the positive pin of the buzzer to Arduino pin 9.
  • Connect the negative pin of the buzzer to GND.

Arduino Code

// Example code to control a passive buzzer with Arduino UNO
// The buzzer will produce a tone at 1000 Hz for 1 second, then stop for 1 second.

#define BUZZER_PIN 9  // Define the pin connected to the buzzer

void setup() {
  pinMode(BUZZER_PIN, OUTPUT);  // Set the buzzer pin as an output
}

void loop() {
  tone(BUZZER_PIN, 1000);  // Generate a 1000 Hz tone on the buzzer
  delay(1000);             // Wait for 1 second
  noTone(BUZZER_PIN);      // Stop the tone
  delay(1000);             // Wait for 1 second
}

Important Considerations and Best Practices

  • Voltage Compatibility: Ensure the buzzer's operating voltage matches your circuit's power supply.
  • Polarity: For polarized buzzers, connect the pins correctly to avoid damage.
  • Signal Requirements: Use a PWM signal for passive buzzers to generate tones of varying frequencies.
  • Mounting: Secure the buzzer to prevent vibrations or movement that could affect sound quality.

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Sound from the Buzzer:

    • Check the power supply or signal source to ensure it is functioning correctly.
    • Verify the buzzer's polarity (if applicable) and connections.
    • For passive buzzers, ensure a proper oscillating signal is being provided.
  2. Buzzer Produces Weak or Distorted Sound:

    • Ensure the operating voltage is within the specified range.
    • Check for loose or poor connections in the circuit.
    • For passive buzzers, verify the frequency of the signal matches the buzzer's specifications.
  3. Buzzer Overheats:

    • Use a current-limiting resistor if the current exceeds the buzzer's rating.
    • Verify that the buzzer is not being driven with excessive voltage.

FAQs

Q: Can I use a passive buzzer without a microcontroller?
A: Yes, you can use a passive buzzer with an external oscillator circuit or a signal generator to produce sound.

Q: How do I differentiate between an active and a passive buzzer?
A: Active buzzers typically have a built-in oscillator and produce sound when powered with DC voltage. Passive buzzers require an external signal and are usually smaller in size.

Q: Can I control the volume of the buzzer?
A: The volume is generally fixed, but you can reduce it by lowering the supply voltage or adding a resistor in series with the buzzer.

Q: What is the typical lifespan of a buzzer?
A: Most buzzers have a lifespan of tens of thousands of hours under normal operating conditions.
