How to Use Orange 22.2V Lithium Polymer Battery 10000mAh: Examples, Pinouts, and Specs
Design with Orange 22.2V Lithium Polymer Battery 10000mAh in Cirkit DesignerIntroduction

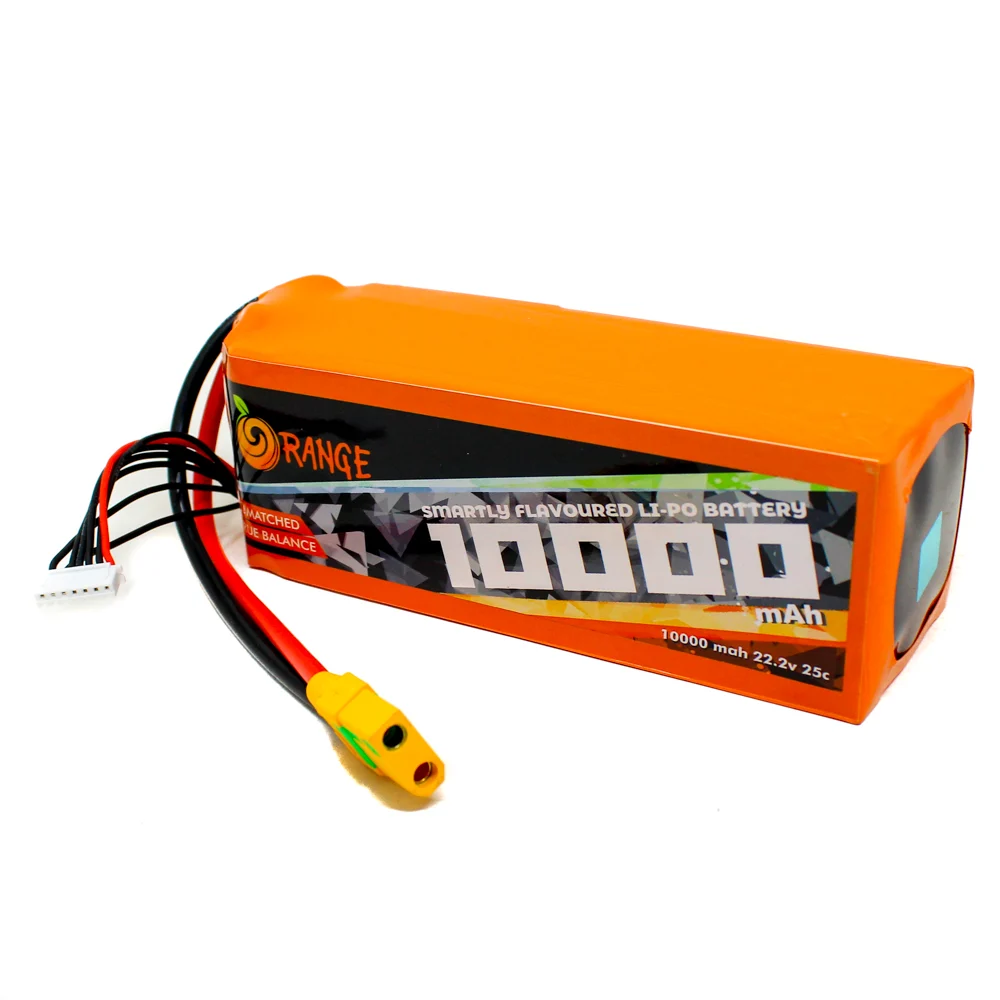

The Orange 22.2V Lithium Polymer (LiPo) Battery 10000mAh is a high-capacity rechargeable battery designed for high-power applications. With a nominal voltage of 22.2V and a capacity of 10000mAh, this battery is ideal for use in drones, remote-controlled (RC) vehicles, and other demanding electronic projects. Its robust design ensures reliable performance and long life, making it a popular choice among hobbyists and professionals alike.
Explore Projects Built with Orange 22.2V Lithium Polymer Battery 10000mAh
18650 Li-ion Battery Pack with 4S40A BMS and XL4016 Voltage Regulator for Battery-Powered Applications
This circuit is a battery management and charging system for a 4S Li-ion battery pack. It includes multiple 18650 Li-ion batteries connected to a 4S40A BMS for balancing and protection, a battery indicator for monitoring charge status, and an XL4016 module for voltage regulation. The system is designed to be charged via a 20V input from a charger.
Open Project in Cirkit DesignerBattery-Powered UPS System with Waveshare UPS 3S and Solar Charger
This circuit is a power management system that integrates a 12V power supply, a solar charger power bank, and multiple Li-ion batteries to provide a stable power output. The Waveshare UPS 3S manages the input from the power sources and batteries, ensuring continuous power delivery. The MRB045 module is used to interface the solar charger with the rest of the system.
Open Project in Cirkit DesignerBattery-Powered Servo Control System with 2S 30A BMS and TP5100 Charger
This circuit is a battery management and charging system for a 2S lithium-ion battery pack, which powers multiple MG996R servos. The TP5100 module charges the battery pack from a 12V power supply, while the 2S 30A BMS ensures safe operation and distribution of power to the servos.
Open Project in Cirkit DesignerBattery-Powered Adjustable Voltage Regulator with Li-ion 18650 Batteries and BMS
This circuit is a power management system that uses four Li-ion 18650 batteries connected to a 2S 30A BMS for battery management and protection. The system includes step-up and step-down voltage regulators to provide adjustable output voltages, controlled by a rocker switch, and multiple DC jacks for power input and output.
Open Project in Cirkit DesignerExplore Projects Built with Orange 22.2V Lithium Polymer Battery 10000mAh
18650 Li-ion Battery Pack with 4S40A BMS and XL4016 Voltage Regulator for Battery-Powered Applications
This circuit is a battery management and charging system for a 4S Li-ion battery pack. It includes multiple 18650 Li-ion batteries connected to a 4S40A BMS for balancing and protection, a battery indicator for monitoring charge status, and an XL4016 module for voltage regulation. The system is designed to be charged via a 20V input from a charger.
Open Project in Cirkit DesignerBattery-Powered UPS System with Waveshare UPS 3S and Solar Charger
This circuit is a power management system that integrates a 12V power supply, a solar charger power bank, and multiple Li-ion batteries to provide a stable power output. The Waveshare UPS 3S manages the input from the power sources and batteries, ensuring continuous power delivery. The MRB045 module is used to interface the solar charger with the rest of the system.
Open Project in Cirkit DesignerBattery-Powered Servo Control System with 2S 30A BMS and TP5100 Charger
This circuit is a battery management and charging system for a 2S lithium-ion battery pack, which powers multiple MG996R servos. The TP5100 module charges the battery pack from a 12V power supply, while the 2S 30A BMS ensures safe operation and distribution of power to the servos.
Open Project in Cirkit DesignerBattery-Powered Adjustable Voltage Regulator with Li-ion 18650 Batteries and BMS
This circuit is a power management system that uses four Li-ion 18650 batteries connected to a 2S 30A BMS for battery management and protection. The system includes step-up and step-down voltage regulators to provide adjustable output voltages, controlled by a rocker switch, and multiple DC jacks for power input and output.
Open Project in Cirkit DesignerTechnical Specifications
| Parameter | Value |
|---|---|
| Nominal Voltage | 22.2V |
| Capacity | 10000mAh |
| Discharge Rate | 25C |
| Charge Rate | 1C |
| Maximum Charge Voltage | 25.2V |
| Minimum Discharge Voltage | 18.0V |
| Connector Type | XT60 |
| Dimensions | 180mm x 75mm x 50mm |
| Weight | 1200g |
Pin Configuration and Descriptions
| Pin | Description |
|---|---|
| XT60+ | Positive terminal (22.2V) |
| XT60- | Negative terminal (GND) |
| Balance Lead | Individual cell monitoring and balancing |
Usage Instructions
How to Use the Component in a Circuit
Connecting the Battery:
- Ensure the device or circuit is powered off before connecting the battery.
- Connect the XT60+ (positive) terminal of the battery to the positive input of your device.
- Connect the XT60- (negative) terminal of the battery to the ground (GND) input of your device.
- If your device supports balance charging, connect the balance lead to the appropriate balance charger.
Charging the Battery:
- Use a LiPo-compatible charger with a balance charging feature.
- Set the charger to the appropriate voltage (25.2V) and charge rate (1C).
- Connect the battery to the charger using the XT60 connector and the balance lead.
- Monitor the charging process to ensure the battery does not overheat.
Important Considerations and Best Practices
- Safety First: Always handle LiPo batteries with care. Avoid puncturing, short-circuiting, or exposing the battery to extreme temperatures.
- Storage: Store the battery at a voltage of around 3.8V per cell (22.8V total) in a cool, dry place.
- Usage: Do not discharge the battery below 18.0V to prevent damage and ensure longevity.
- Balancing: Regularly balance charge the battery to maintain cell health and performance.
Troubleshooting and FAQs
Common Issues Users Might Face
Battery Not Charging:
- Solution: Ensure the charger is set to the correct voltage and charge rate. Check all connections and ensure the balance lead is properly connected.
Battery Swelling:
- Solution: This is a sign of overcharging or damage. Discontinue use immediately and dispose of the battery safely.
Shortened Flight Time (for drones):
- Solution: Check for proper balance charging. Ensure the battery is fully charged before use. Consider the age and usage history of the battery, as capacity can degrade over time.
FAQs
Q: Can I use this battery with my Arduino project? A: Yes, but you will need a voltage regulator to step down the voltage to a level suitable for the Arduino (typically 5V or 3.3V).
Q: How do I know when the battery is fully charged? A: The charger will indicate a full charge, and the voltage should read 25.2V.
Q: Is it safe to leave the battery connected to the charger overnight? A: No, it is not recommended to leave LiPo batteries charging unattended. Always monitor the charging process.
Q: What should I do if the battery gets hot during use? A: Stop using the battery immediately and allow it to cool down. Check for any signs of damage or overuse.
By following these guidelines and best practices, you can ensure the safe and efficient use of your Orange 22.2V LiPo Battery 10000mAh in your high-power applications.
