How to Use AC MCB: Examples, Pinouts, and Specs
Design with AC MCB in Cirkit DesignerIntroduction

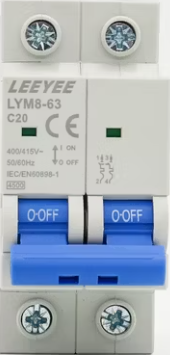

An AC Miniature Circuit Breaker (MCB) is an electrical device designed to protect electrical circuits from damage caused by overloads or short circuits. It automatically interrupts the flow of current when it detects a fault, ensuring the safety of electrical systems and connected devices. MCBs are widely used in residential, commercial, and industrial applications to safeguard wiring and equipment from potential hazards.
Explore Projects Built with AC MCB
Flush Switch Controlled Lamp Circuit with AC Power Supply and MCB Protection
This circuit is designed to control a lamp using a flush switch and is protected by two MCBs (Miniature Circuit Breakers). The AC supply is connected to the input of the first MCB, whose output is connected to the flush switch. The flush switch then controls the power to the lamp, with the second MCB placed in the neutral line for additional safety.
Open Project in Cirkit DesignerAC Bulb Control Circuit with Flush Switch and MCB Protection
This circuit is designed to control an AC bulb using a flush switch. The AC power supply is connected through an MCB (Miniature Circuit Breaker) for protection, and the flush switch acts as an on/off control for the bulb. There is no microcontroller or embedded code involved in this simple power control circuit.
Open Project in Cirkit DesignerSolar-Powered Home Energy System with Automatic Transfer Switch and Battery Backup
This circuit is a solar power system with an automatic transfer switch (ATS) that manages power from both a solar panel and an AC supply. The solar panel charges a battery through a solar charge controller, and the power inverter converts the stored DC power to AC, which is then distributed through an MCB to a socket. The ATS ensures seamless switching between solar and AC power sources.
Open Project in Cirkit DesignerLED Indicator System with Power Stabilizer and Measurement Meters
This circuit is a power distribution and monitoring system that includes multiple LEDs for status indication, a stabilizer module, and measurement instruments such as voltmeters and ammeters. It is designed to supply power to a computer and monitor the power quality and current flow, with protection provided by MCBs (Miniature Circuit Breakers).
Open Project in Cirkit DesignerExplore Projects Built with AC MCB
Flush Switch Controlled Lamp Circuit with AC Power Supply and MCB Protection
This circuit is designed to control a lamp using a flush switch and is protected by two MCBs (Miniature Circuit Breakers). The AC supply is connected to the input of the first MCB, whose output is connected to the flush switch. The flush switch then controls the power to the lamp, with the second MCB placed in the neutral line for additional safety.
Open Project in Cirkit DesignerAC Bulb Control Circuit with Flush Switch and MCB Protection
This circuit is designed to control an AC bulb using a flush switch. The AC power supply is connected through an MCB (Miniature Circuit Breaker) for protection, and the flush switch acts as an on/off control for the bulb. There is no microcontroller or embedded code involved in this simple power control circuit.
Open Project in Cirkit DesignerSolar-Powered Home Energy System with Automatic Transfer Switch and Battery Backup
This circuit is a solar power system with an automatic transfer switch (ATS) that manages power from both a solar panel and an AC supply. The solar panel charges a battery through a solar charge controller, and the power inverter converts the stored DC power to AC, which is then distributed through an MCB to a socket. The ATS ensures seamless switching between solar and AC power sources.
Open Project in Cirkit DesignerLED Indicator System with Power Stabilizer and Measurement Meters
This circuit is a power distribution and monitoring system that includes multiple LEDs for status indication, a stabilizer module, and measurement instruments such as voltmeters and ammeters. It is designed to supply power to a computer and monitor the power quality and current flow, with protection provided by MCBs (Miniature Circuit Breakers).
Open Project in Cirkit DesignerCommon Applications and Use Cases
- Protection of household electrical circuits
- Industrial machinery and equipment safety
- Commercial building electrical systems
- Overload and short circuit protection in distribution boards
- Renewable energy systems (e.g., solar inverters)
Technical Specifications
Key Technical Details
| Parameter | Specification |
|---|---|
| Rated Voltage | 230V AC (single-phase) / 400V AC (three-phase) |
| Rated Current | 6A, 10A, 16A, 20A, 32A, 40A, 63A |
| Breaking Capacity | 6kA or 10kA |
| Frequency | 50Hz / 60Hz |
| Tripping Curve | B, C, or D (depending on application) |
| Number of Poles | 1P, 2P, 3P, 4P |
| Operating Temperature | -5°C to +55°C |
| Mounting Type | DIN Rail |
| Standards Compliance | IEC 60898-1, IS/IEC 60947-2 |
Pin Configuration and Descriptions
| Pin/Terminal | Description |
|---|---|
| Line (Input) | Connects to the incoming live wire from the power source. |
| Load (Output) | Connects to the outgoing live wire to the load or circuit. |
| Neutral | (For 2P, 3P, or 4P MCBs) Connects to the neutral wire. |
Usage Instructions
How to Use the Component in a Circuit
- Selection: Choose an MCB with the appropriate rated current, voltage, and tripping curve based on the load and application.
- Installation:
- Mount the MCB on a standard DIN rail in the distribution board.
- Ensure the power supply is turned off before installation.
- Connect the incoming live wire to the "Line" terminal and the outgoing live wire to the "Load" terminal.
- For multi-pole MCBs, connect the neutral and additional phases as required.
- Testing:
- After installation, switch on the MCB and verify that it supplies power to the load.
- Test the tripping mechanism by simulating an overload or short circuit (if safe to do so).
Important Considerations and Best Practices
- Always select an MCB with a breaking capacity higher than the prospective fault current of the circuit.
- Use the correct tripping curve (B, C, or D) based on the type of load:
- B Curve: For resistive loads (e.g., lighting, heating).
- C Curve: For inductive loads (e.g., motors, transformers).
- D Curve: For highly inductive loads with high inrush currents.
- Ensure proper tightening of terminal screws to avoid loose connections.
- Periodically inspect the MCB for signs of wear or damage.
Arduino Integration
While MCBs are not directly interfaced with microcontrollers like Arduino, they can be used in circuits powered by Arduino to protect against electrical faults. For example, an MCB can safeguard the power supply line to an Arduino-based project.
Troubleshooting and FAQs
Common Issues and Solutions
| Issue | Possible Cause | Solution |
|---|---|---|
| MCB trips frequently | Overload or short circuit in the circuit | Check the connected load and wiring. |
| MCB does not trip during a fault | Fault current is below the MCB's rated trip current | Verify the MCB's rating and replace if necessary. |
| MCB feels warm during operation | Loose terminal connections | Tighten the terminal screws securely. |
| MCB does not switch on | Internal damage or faulty mechanism | Replace the MCB with a new one. |
FAQs
Can an MCB be reset after tripping? Yes, an MCB can be manually reset by switching it back to the "ON" position after resolving the fault.
What is the difference between an MCB and a fuse? An MCB is reusable and provides faster fault detection, while a fuse needs to be replaced after it blows.
How do I choose the right MCB for my application? Consider the load's current rating, voltage, and type (resistive or inductive). Also, ensure the MCB's breaking capacity exceeds the prospective fault current.
Can I use an MCB for DC circuits? No, standard AC MCBs are designed for AC circuits. Use a DC-rated MCB for DC applications.
