How to Use SSD1306 OLED : Examples, Pinouts, and Specs

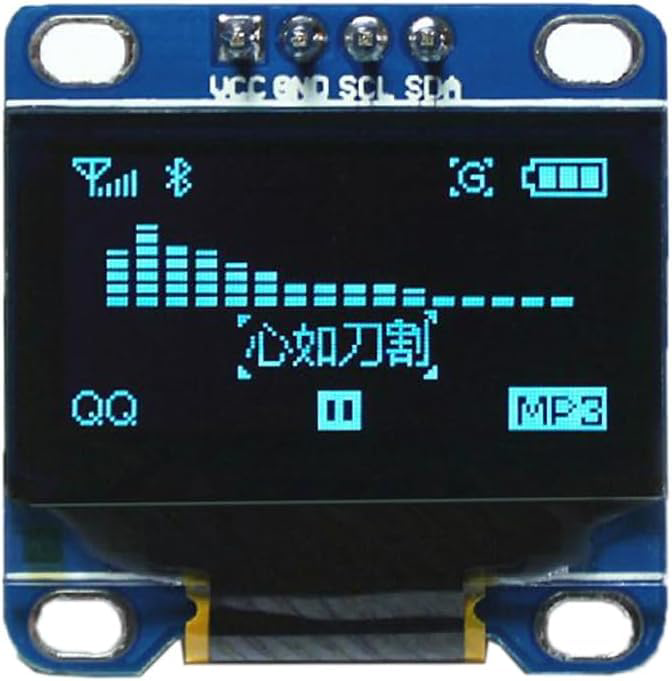

Image of SSD1306 OLED
Cirkit Designer LogoDesign with SSD1306 OLED in Cirkit Designer

Introduction

The SSD1306 OLED, manufactured by RIDEN (Part ID: SSD1306), is a versatile monochrome display driver designed for OLED screens. It is widely used in embedded systems due to its compact size, low power consumption, and high contrast display. The SSD1306 supports resolutions such as 128x64 pixels and offers communication via I2C or SPI interfaces, making it an excellent choice for microcontroller-based projects.

Explore Projects Built with SSD1306 OLED

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano ESP32-Based Real-Time Clock and OLED Display System
Image of Watch: A project utilizing SSD1306 OLED  in a practical application
This circuit features an Arduino Nano ESP32 microcontroller interfaced with an SSD1306 128x64 SPI OLED display and an RTC DS3231 module. The OLED display is used for visual output, while the RTC module provides accurate timekeeping. The microcontroller coordinates the display and timekeeping functions.
Cirkit Designer LogoOpen Project in Cirkit Designer
IoT Board with 0.96" OLED Display for Real-Time Data Visualization
Image of dgd: A project utilizing SSD1306 OLED  in a practical application
This circuit connects a 0.96" OLED display to an IoT board. The OLED display is powered by the 3.3V and GND pins of the IoT board, and communicates with the board via I2C using the SDA and SCL pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Wi-Fi Controlled RGB LED and OLED Display with ESP8266
Image of ESP thermometer reciever: A project utilizing SSD1306 OLED  in a practical application
This circuit features an ESP8266 microcontroller interfaced with a 128x64 OLED display via I2C for visual output and an RGB LED controlled through current-limiting resistors. The ESP8266 provides power and control signals to both the display and the LED, enabling visual feedback and status indication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino 101 OLED Display Animation Project
Image of wokwi animater test: A project utilizing SSD1306 OLED  in a practical application
This circuit consists of an Arduino 101 microcontroller connected to a 0.96" OLED display via I2C communication. The Arduino runs a program that initializes the OLED and continuously displays an animated sequence of frames on the screen.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with SSD1306 OLED

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Watch: A project utilizing SSD1306 OLED  in a practical application
Arduino Nano ESP32-Based Real-Time Clock and OLED Display System
This circuit features an Arduino Nano ESP32 microcontroller interfaced with an SSD1306 128x64 SPI OLED display and an RTC DS3231 module. The OLED display is used for visual output, while the RTC module provides accurate timekeeping. The microcontroller coordinates the display and timekeeping functions.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of dgd: A project utilizing SSD1306 OLED  in a practical application
IoT Board with 0.96" OLED Display for Real-Time Data Visualization
This circuit connects a 0.96" OLED display to an IoT board. The OLED display is powered by the 3.3V and GND pins of the IoT board, and communicates with the board via I2C using the SDA and SCL pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ESP thermometer reciever: A project utilizing SSD1306 OLED  in a practical application
Wi-Fi Controlled RGB LED and OLED Display with ESP8266
This circuit features an ESP8266 microcontroller interfaced with a 128x64 OLED display via I2C for visual output and an RGB LED controlled through current-limiting resistors. The ESP8266 provides power and control signals to both the display and the LED, enabling visual feedback and status indication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of wokwi animater test: A project utilizing SSD1306 OLED  in a practical application
Arduino 101 OLED Display Animation Project
This circuit consists of an Arduino 101 microcontroller connected to a 0.96" OLED display via I2C communication. The Arduino runs a program that initializes the OLED and continuously displays an animated sequence of frames on the screen.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Wearable devices and smartwatches
  • IoT dashboards and data visualization
  • Portable electronics and handheld devices
  • Debugging tools and system status displays
  • Educational and hobbyist projects with microcontrollers (e.g., Arduino, Raspberry Pi)

Technical Specifications

Key Technical Details

Parameter Value
Manufacturer RIDEN
Part ID SSD1306
Display Type Monochrome OLED
Resolution 128x64 pixels (typical)
Communication Interface I2C or SPI
Operating Voltage 3.3V to 5V
Operating Temperature -40°C to +85°C
Power Consumption ~0.08W (typical)
Dimensions Varies by module (e.g., 0.96")

Pin Configuration and Descriptions

I2C Interface Pinout

Pin Name Pin Number Description
GND 1 Ground (0V reference)
VCC 2 Power supply (3.3V or 5V)
SCL 3 Serial Clock Line for I2C communication
SDA 4 Serial Data Line for I2C communication

SPI Interface Pinout

Pin Name Pin Number Description
GND 1 Ground (0V reference)
VCC 2 Power supply (3.3V or 5V)
SCK 3 Serial Clock Line for SPI communication
MOSI 4 Master Out Slave In (data input)
CS 5 Chip Select (active low)
DC 6 Data/Command control pin
RES 7 Reset pin (active low)

Usage Instructions

How to Use the SSD1306 OLED in a Circuit

  1. Power Supply: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to ground.
  2. Interface Selection: Choose between I2C or SPI communication based on your project requirements. Ensure the correct wiring for the selected interface.
  3. Pull-Up Resistors (I2C): If using I2C, ensure pull-up resistors (typically 4.7kΩ) are connected to the SCL and SDA lines.
  4. Microcontroller Library: Use a compatible library (e.g., Adafruit SSD1306 library for Arduino) to simplify communication and display control.

Important Considerations and Best Practices

  • Voltage Compatibility: Ensure the OLED module matches the voltage level of your microcontroller (3.3V or 5V).
  • Contrast Adjustment: Use software commands to adjust the display contrast for optimal visibility.
  • Initialization: Always initialize the display using the appropriate library or commands before sending data.
  • Avoid Static Images: To prevent burn-in, avoid displaying static images for extended periods.

Example Code for Arduino UNO (I2C)

#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>

// Define the OLED display dimensions
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64

// Create an SSD1306 object with I2C address 0x3C
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);

void setup() {
  // Initialize serial communication for debugging
  Serial.begin(9600);

  // Initialize the OLED display
  if (!display.begin(SSD1306_I2C_ADDRESS, 0x3C)) {
    Serial.println(F("SSD1306 allocation failed"));
    for (;;); // Halt execution if initialization fails
  }

  // Clear the display buffer
  display.clearDisplay();

  // Display a welcome message
  display.setTextSize(1);      // Set text size
  display.setTextColor(SSD1306_WHITE); // Set text color
  display.setCursor(0, 0);     // Set cursor position
  display.println(F("Hello, SSD1306!"));
  display.display();           // Render the text on the screen
  delay(2000);                 // Wait for 2 seconds
}

void loop() {
  // Example: Draw a rectangle on the screen
  display.clearDisplay();      // Clear the display buffer
  display.drawRect(10, 10, 50, 30, SSD1306_WHITE); // Draw a rectangle
  display.display();           // Render the rectangle on the screen
  delay(1000);                 // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Display Not Turning On:

    • Verify the power supply connections (VCC and GND).
    • Ensure the correct voltage level (3.3V or 5V) is supplied.
    • Check for loose or incorrect wiring.
  2. No Output on the Screen:

    • Confirm the I2C or SPI connections are correct.
    • Ensure the correct I2C address (e.g., 0x3C) is used in the code.
    • Verify that the display is initialized properly in the code.
  3. Flickering or Unstable Display:

    • Check for noise or interference on the communication lines.
    • Use shorter wires and ensure proper grounding.
    • Add decoupling capacitors near the power pins if necessary.
  4. Burn-In or Ghosting:

    • Avoid displaying static images for long durations.
    • Use screen savers or periodically refresh the display content.

FAQs

Q: Can the SSD1306 OLED work with 5V microcontrollers?
A: Yes, the SSD1306 module typically includes a voltage regulator and level shifters, allowing it to work with both 3.3V and 5V systems. However, always check the specific module's datasheet.

Q: How do I find the I2C address of my SSD1306 module?
A: Use an I2C scanner sketch on your microcontroller to detect the address. The default is usually 0x3C or 0x3D.

Q: Can I use the SSD1306 OLED with Raspberry Pi?
A: Yes, the SSD1306 is compatible with Raspberry Pi. Use libraries like luma.oled for Python to control the display.

Q: What is the maximum resolution supported by the SSD1306?
A: The SSD1306 supports resolutions up to 128x64 pixels. For higher resolutions, consider other display drivers.
