How to Use Teensy 4.1: Examples, Pinouts, and Specs

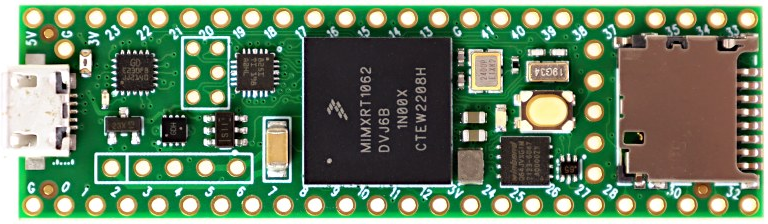

The Teensy 4.1, manufactured by SparkFun, is a high-performance microcontroller board powered by the NXP iMXRT1062 chip. It features a 600 MHz ARM Cortex-M7 processor, 1 MB of RAM, and 8 MB of flash memory, making it one of the most powerful microcontroller boards available for hobbyists and professionals alike. Its compact size and extensive I/O capabilities make it ideal for demanding applications such as audio processing, robotics, machine learning, and real-time data acquisition.

• High-speed data processing and logging
• Audio synthesis and digital signal processing (DSP)
• Robotics and motor control
• IoT devices and edge computing
• Machine learning and AI applications
• Advanced sensor interfacing and control systems

The following table outlines the key technical specifications of the Teensy 4.1:

The Teensy 4.1 has a rich set of pins for various functionalities. Below is a summary of the pin configuration:

1. Powering the Board:

   • Connect the Teensy 4.1 to your computer via a USB cable for power and programming.
   • Alternatively, supply 5V to the VIN pin for external power.

2. Programming the Board:

   • Install the Arduino IDE and the Teensyduino add-on to enable Teensy support.
   • Select "Teensy 4.1" as the board in the Arduino IDE.
   • Write your code and upload it to the board via the USB connection.

3. Connecting Peripherals:

   • Use the GPIO pins for digital and analog inputs/outputs.
   • Connect sensors, actuators, or other devices to the appropriate pins based on their requirements.
   • For communication, use the UART, I2C, SPI, or CAN interfaces as needed.

• Voltage Levels: The Teensy 4.1 operates at 3.3V logic levels. While some pins are 5V tolerant, ensure that connected devices are compatible with 3.3V to avoid damage.
• Heat Management: The 600 MHz processor can generate heat during intensive tasks. Consider adding a heatsink for prolonged high-performance applications.
• MicroSD Card: Use a high-quality microSD card for reliable external storage. Format the card as FAT32 for compatibility.
• USB Host Mode: To use the USB host functionality, connect a USB device (e.g., keyboard, mouse) to the USB host port and ensure proper power supply.

The following example demonstrates how to blink an LED connected to pin 13:

// Blink an LED connected to pin 13 on the Teensy 4.1
void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(500);             // Wait for 500 milliseconds
  digitalWrite(13, LOW);  // Turn the LED off
  delay(500);             // Wait for 500 milliseconds
}

1. The board is not recognized by the computer:

   • Ensure the USB cable is a data cable (not just a charging cable).
   • Check that the Teensyduino add-on is installed in the Arduino IDE.
   • Press the reset button on the Teensy 4.1 to force it into programming mode.

2. Code does not upload to the board:

   • Verify that "Teensy 4.1" is selected as the board in the Arduino IDE.
   • Ensure no other program is using the USB port.
   • Try a different USB cable or port.

3. Peripherals are not working as expected:

   • Double-check the wiring and connections.
   • Confirm that the peripherals are compatible with 3.3V logic levels.
   • Use a multimeter to verify power and signal levels.

4. MicroSD card is not detected:

   • Ensure the card is formatted as FAT32.
   • Check the connections to the SDIO pins.
   • Use a different microSD card to rule out compatibility issues.

• Can I use the Teensy 4.1 with 5V sensors?
  Yes, but ensure the sensor outputs are connected to 5V-tolerant pins or use a level shifter.

• What is the maximum clock speed of the Teensy 4.1?
  The Teensy 4.1 runs at a maximum clock speed of 600 MHz.

• Does the Teensy 4.1 support Wi-Fi or Bluetooth?
  No, the Teensy 4.1 does not have built-in Wi-Fi or Bluetooth. However, you can connect external modules for wireless communication.

• Can I use the Teensy 4.1 for audio processing?
  Yes, the Teensy 4.1 is highly suitable for audio processing and supports the Teensy Audio Library for advanced audio applications.
