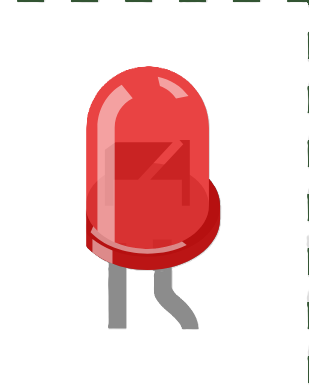

Image of led
Cirkit Designer LogoDesign with led in Cirkit Designer

Introduction

A Light Emitting Diode (LED) is a semiconductor device that emits light when an electric current passes through it. LEDs are energy-efficient, have a long lifespan, and are widely used in various applications. They are available in different colors, sizes, and brightness levels, making them versatile for numerous purposes.

Explore Projects Built with led

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered LED Array with Rocker Switch Control
Image of yk: A project utilizing led in a practical application
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Green LED Light
Image of Solar Panel : A project utilizing led in a practical application
This circuit consists of a solar panel connected to a green LED. The solar panel provides power to the LED, causing it to light up when sufficient sunlight is available.
Cirkit Designer LogoOpen Project in Cirkit Designer
LDR-Controlled LED Lighting System
Image of automatic street light: A project utilizing led in a practical application
This circuit appears to be a simple light-detection system that uses an LDR (Light Dependent Resistor) to control the state of multiple green LEDs. The LDR's analog output (AO) is not connected, suggesting that the circuit uses the digital output (DO) to directly drive one LED, while the other LEDs are wired in parallel to the LDR's power supply (Vcc). The Pd (presumably a power distribution component) provides the necessary voltage levels to the LDR and LEDs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Light-Activated Relay with LED Indicator
Image of Street Light: A project utilizing led in a practical application
This circuit uses a photocell (LDR) to control a 5V relay, which in turn controls the power to a red LED. The relay is powered by a USB plug, and a resistor is used to limit the current to the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with led

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of yk: A project utilizing led in a practical application
Battery-Powered LED Array with Rocker Switch Control
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Solar Panel : A project utilizing led in a practical application
Solar-Powered Green LED Light
This circuit consists of a solar panel connected to a green LED. The solar panel provides power to the LED, causing it to light up when sufficient sunlight is available.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of automatic street light: A project utilizing led in a practical application
LDR-Controlled LED Lighting System
This circuit appears to be a simple light-detection system that uses an LDR (Light Dependent Resistor) to control the state of multiple green LEDs. The LDR's analog output (AO) is not connected, suggesting that the circuit uses the digital output (DO) to directly drive one LED, while the other LEDs are wired in parallel to the LDR's power supply (Vcc). The Pd (presumably a power distribution component) provides the necessary voltage levels to the LDR and LEDs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Street Light: A project utilizing led in a practical application
Light-Activated Relay with LED Indicator
This circuit uses a photocell (LDR) to control a 5V relay, which in turn controls the power to a red LED. The relay is powered by a USB plug, and a resistor is used to limit the current to the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Indicators: Power status, notifications, and signal indicators in electronic devices.
  • Displays: Seven-segment displays, dot matrices, and full-color screens.
  • Lighting: General-purpose lighting, decorative lighting, and flashlights.
  • Communication: Infrared LEDs for remote controls and optical communication.
  • Hobby Projects: DIY electronics, Arduino projects, and prototyping.

Technical Specifications

Below are the general specifications for a standard 5mm LED. Note that specifications may vary depending on the type and manufacturer.

Key Technical Details

  • Forward Voltage (Vf): 1.8V to 3.3V (varies by color; e.g., red ~1.8V, blue ~3.0V)
  • Forward Current (If): 10mA to 20mA (typical operating range)
  • Maximum Reverse Voltage: 5V (exceeding this may damage the LED)
  • Power Dissipation: 30mW to 100mW (depending on the LED type)
  • Viewing Angle: 20° to 60° (varies by design)
  • Luminous Intensity: 1 mcd to 1000 mcd (depends on the LED)

Pin Configuration and Descriptions

Pin Name Description
Anode (+) The longer leg of the LED. Connect to the positive terminal of the power supply.
Cathode (-) The shorter leg of the LED. Connect to the negative terminal or ground.

Note: If the LED legs are trimmed or indistinguishable, the flat edge on the LED casing indicates the cathode (-).

Usage Instructions

How to Use the LED in a Circuit

  1. Determine the Forward Voltage and Current: Check the LED's datasheet for its forward voltage (Vf) and recommended forward current (If).
  2. Calculate the Resistor Value: Use Ohm's Law to calculate the series resistor value to limit the current: [ R = \frac{V_{supply} - V_f}{I_f} ]
    • (V_{supply}): Supply voltage
    • (V_f): Forward voltage of the LED
    • (I_f): Desired forward current (in amperes)
  3. Connect the LED:
    • Connect the anode (+) to the positive terminal of the power supply through the resistor.
    • Connect the cathode (-) to the ground.

Example Circuit with Arduino UNO

Below is an example of connecting an LED to an Arduino UNO and blinking it.

Circuit Diagram

  • Anode (+): Connect to Arduino digital pin (e.g., pin 13) through a 220Ω resistor.
  • Cathode (-): Connect to Arduino GND.

Arduino Code

// LED Blink Example
// This code blinks an LED connected to pin 13 of the Arduino UNO.

const int ledPin = 13; // Define the pin where the LED is connected

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Important Considerations and Best Practices

  • Always use a current-limiting resistor to prevent damage to the LED.
  • Avoid exceeding the maximum forward current and reverse voltage ratings.
  • Ensure proper polarity when connecting the LED; reversing the polarity may damage it.
  • For high-power LEDs, consider using a heat sink to dissipate heat.

Troubleshooting and FAQs

Common Issues and Solutions

  1. LED Does Not Light Up:

    • Cause: Incorrect polarity.
    • Solution: Ensure the anode is connected to the positive terminal and the cathode to ground.
    • Cause: No current-limiting resistor or incorrect resistor value.
    • Solution: Verify the resistor value and connections.
  2. LED is Dim:

    • Cause: Insufficient current.
    • Solution: Check the resistor value and ensure it allows the desired current.
    • Cause: Low supply voltage.
    • Solution: Verify the power supply voltage is sufficient for the LED.
  3. LED Burns Out Quickly:

    • Cause: Excessive current.
    • Solution: Use a proper current-limiting resistor.
    • Cause: Reverse voltage applied.
    • Solution: Ensure correct polarity and avoid exceeding the reverse voltage rating.

FAQs

  • Q: Can I connect an LED directly to a battery?
    A: No, always use a current-limiting resistor to prevent excessive current from damaging the LED.

  • Q: How do I choose the right resistor for my LED?
    A: Use the formula (R = \frac{V_{supply} - V_f}{I_f}) and select a resistor with a value close to the calculated result.

  • Q: Can I use an LED without a resistor if my power supply voltage matches the forward voltage?
    A: No, even small variations in voltage can cause excessive current. A resistor is always recommended.

  • Q: Why does my LED flicker when connected to an Arduino?
    A: This could be due to incorrect code or insufficient power supply. Check your code logic and ensure the Arduino is powered properly.

By following these guidelines, you can effectively use LEDs in your projects and avoid common pitfalls.
