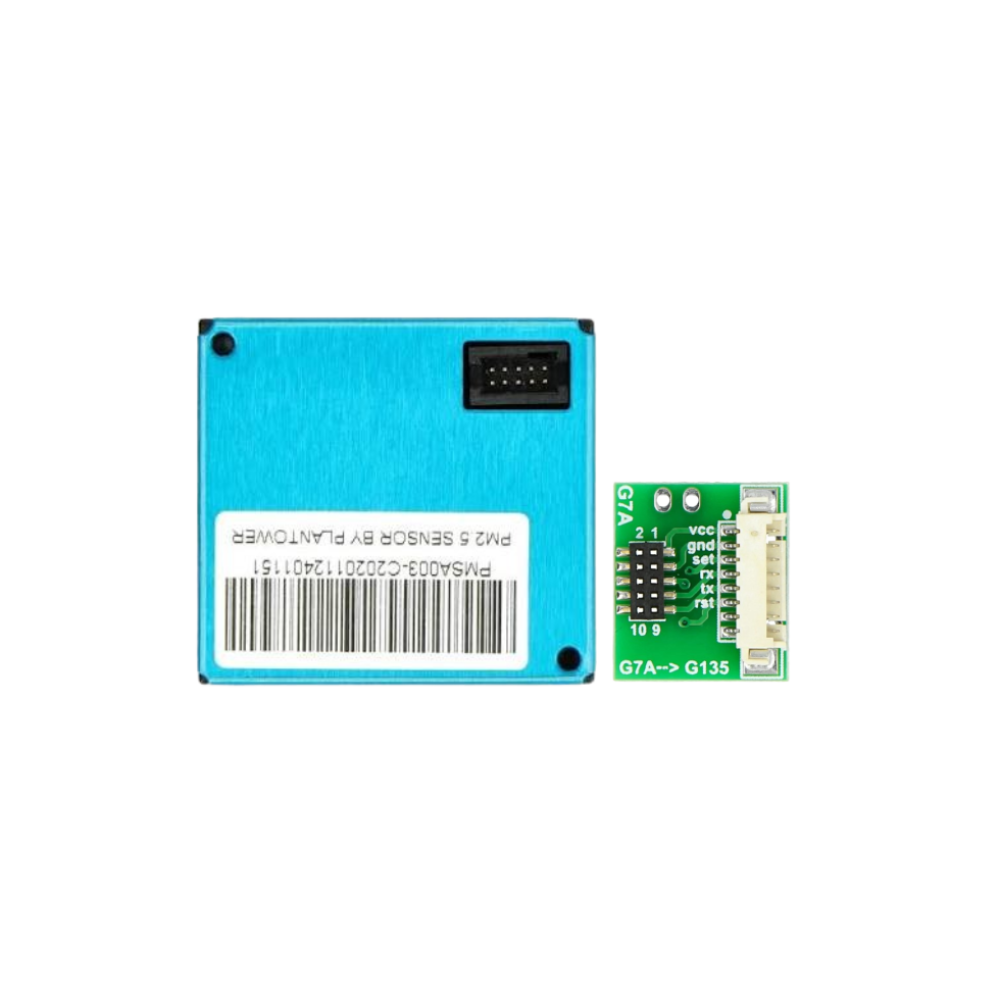

Image of PMS7003
Cirkit Designer LogoDesign with PMS7003 in Cirkit Designer

Introduction

The PMS7003 is a laser-based particulate matter sensor designed to measure the concentration of airborne particles, including PM1.0, PM2.5, and PM10. It uses laser scattering technology to provide highly accurate and real-time data on air quality. The sensor is compact, reliable, and widely used in applications such as air purifiers, HVAC systems, environmental monitoring, and IoT-based air quality monitoring systems.
