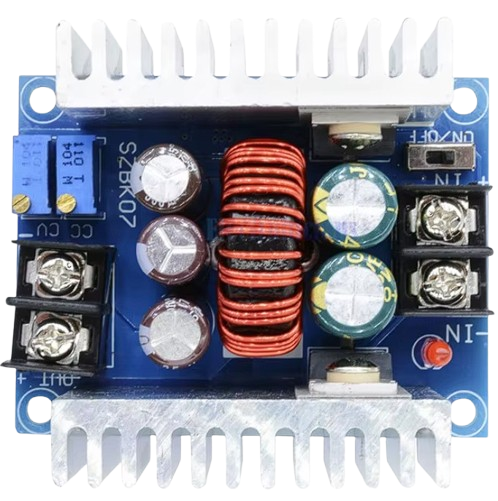

Image of  DC-DC Buck Converter 100W.6A 10-90V > 1.5V-60V [Bill Ludwig]
Cirkit Designer LogoDesign with DC-DC Buck Converter 100W.6A 10-90V > 1.5V-60V [Bill Ludwig] in Cirkit Designer

Introduction

The DC-DC Buck Converter (Part ID: 100W.6A 10-90V > 1.5V-60V) is a high-efficiency step-down voltage regulator designed to convert a higher input voltage (10-90V) to a lower output voltage (1.5V-60V). With a maximum output power of 100W and a current capacity of up to 6A, this converter is ideal for applications requiring stable and adjustable power delivery.

Explore Projects Built with DC-DC Buck Converter 100W.6A 10-90V > 1.5V-60V [Bill Ludwig]

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered DC-DC Converter System for Multi-Voltage Power Distribution
Image of test 1 ih: A project utilizing  DC-DC Buck Converter 100W.6A 10-90V > 1.5V-60V [Bill Ludwig] in a practical application
This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Boost Converter with USB Type-C and BMS
Image of Weird Case: A project utilizing  DC-DC Buck Converter 100W.6A 10-90V > 1.5V-60V [Bill Ludwig] in a practical application
This circuit is a power management and conversion system that includes a boost converter, battery management system (BMS), and various MOSFETs and passive components. It is designed to regulate and boost the voltage from a 2000mAh battery, providing stable power output through a USB Type C interface. The circuit also includes protection and switching mechanisms to ensure safe and efficient power delivery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered DC Generator with XL4015 Buck Converter
Image of conveyor: A project utilizing  DC-DC Buck Converter 100W.6A 10-90V > 1.5V-60V [Bill Ludwig] in a practical application
This circuit consists of a 12V battery connected to a rocker switch, which controls the input to an XL4015 DC Buck Step-down converter. The converter steps down the voltage to power a DC generator, with the generator's output connected back to the converter to form a feedback loop.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered UPS with Step-Down Buck Converter and BMS
Image of Mini ups: A project utilizing  DC-DC Buck Converter 100W.6A 10-90V > 1.5V-60V [Bill Ludwig] in a practical application
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with DC-DC Buck Converter 100W.6A 10-90V > 1.5V-60V [Bill Ludwig]

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of test 1 ih: A project utilizing  DC-DC Buck Converter 100W.6A 10-90V > 1.5V-60V [Bill Ludwig] in a practical application
Battery-Powered DC-DC Converter System for Multi-Voltage Power Distribution
This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Weird Case: A project utilizing  DC-DC Buck Converter 100W.6A 10-90V > 1.5V-60V [Bill Ludwig] in a practical application
Battery-Powered Boost Converter with USB Type-C and BMS
This circuit is a power management and conversion system that includes a boost converter, battery management system (BMS), and various MOSFETs and passive components. It is designed to regulate and boost the voltage from a 2000mAh battery, providing stable power output through a USB Type C interface. The circuit also includes protection and switching mechanisms to ensure safe and efficient power delivery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of conveyor: A project utilizing  DC-DC Buck Converter 100W.6A 10-90V > 1.5V-60V [Bill Ludwig] in a practical application
Battery-Powered DC Generator with XL4015 Buck Converter
This circuit consists of a 12V battery connected to a rocker switch, which controls the input to an XL4015 DC Buck Step-down converter. The converter steps down the voltage to power a DC generator, with the generator's output connected back to the converter to form a feedback loop.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Mini ups: A project utilizing  DC-DC Buck Converter 100W.6A 10-90V > 1.5V-60V [Bill Ludwig] in a practical application
Battery-Powered UPS with Step-Down Buck Converter and BMS
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Powering low-voltage devices from high-voltage sources
  • Battery charging systems
  • LED lighting systems
  • DIY electronics projects
  • Industrial automation and control systems

Technical Specifications

Key Technical Details

Parameter Value
Input Voltage Range 10V to 90V
Output Voltage Range 1.5V to 60V
Maximum Output Current 6A
Maximum Output Power 100W
Efficiency Up to 95% (depending on load)
Switching Frequency 150 kHz
Operating Temperature -40°C to +85°C
Dimensions Varies by manufacturer (approx.)

Pin Configuration and Descriptions

Pin Name Description
VIN+ Positive input voltage terminal (10-90V)
VIN- Negative input voltage terminal (ground)
VOUT+ Positive output voltage terminal (1.5-60V)
VOUT- Negative output voltage terminal (ground)
ADJ Voltage adjustment potentiometer (if available)

Usage Instructions

How to Use the Component in a Circuit

  1. Connect Input Voltage:

    • Connect the positive terminal of your power source to the VIN+ pin.
    • Connect the negative terminal of your power source to the VIN- pin.
    • Ensure the input voltage is within the specified range (10-90V).
  2. Connect Output Load:

    • Connect the positive terminal of your load to the VOUT+ pin.
    • Connect the negative terminal of your load to the VOUT- pin.
  3. Adjust Output Voltage:

    • If the module includes an adjustable potentiometer (ADJ), rotate it to set the desired output voltage.
    • Use a multimeter to measure the output voltage for accuracy.
  4. Power On:

    • Turn on the input power source. The module will step down the input voltage to the configured output voltage.

Important Considerations and Best Practices

  • Heat Dissipation: At high power levels, the module may generate significant heat. Use a heatsink or active cooling to prevent overheating.
  • Input Voltage Range: Ensure the input voltage does not exceed the specified range (10-90V) to avoid damage.
  • Output Current Limit: Do not exceed the maximum output current of 6A to prevent overloading.
  • Polarity: Double-check the polarity of all connections to avoid short circuits or damage.
  • Load Testing: Test the module with a dummy load before connecting sensitive devices.

Example: Using with Arduino UNO

The DC-DC buck converter can be used to power an Arduino UNO from a higher voltage source. For example, if you have a 24V power supply, you can step it down to 5V to power the Arduino.

Circuit Connection

  1. Connect the 24V power supply to the VIN+ and VIN- pins of the buck converter.
  2. Adjust the output voltage to 5V using the potentiometer.
  3. Connect the VOUT+ pin to the Arduino's 5V pin and the VOUT- pin to the Arduino's GND pin.

Sample Code

Here is a simple Arduino sketch to blink an LED while powered by the buck converter:

// Blink an LED connected to pin 13
void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

Issue Possible Cause Solution
No output voltage Incorrect wiring or loose connections Verify all connections and polarity.
Output voltage not adjustable Faulty potentiometer or module Check the potentiometer or replace module.
Overheating High load or insufficient cooling Add a heatsink or reduce load.
Output voltage fluctuates Input voltage instability Use a stable power source or add capacitors.
Module not powering on Input voltage out of range Ensure input voltage is between 10-90V.

FAQs

  1. Can this module be used to charge batteries?

    • Yes, but ensure the output voltage and current are set according to the battery's specifications.
  2. What happens if the input voltage exceeds 90V?

    • The module may be damaged. Always ensure the input voltage stays within the specified range.
  3. Can I use this module for powering sensitive electronics?

    • Yes, but consider adding additional filtering capacitors to reduce noise.
  4. Is the module waterproof?

    • No, the module is not waterproof. Use it in a dry environment or enclose it in a protective case.

By following this documentation, you can effectively use the DC-DC Buck Converter for a wide range of applications while ensuring safety and reliability.
