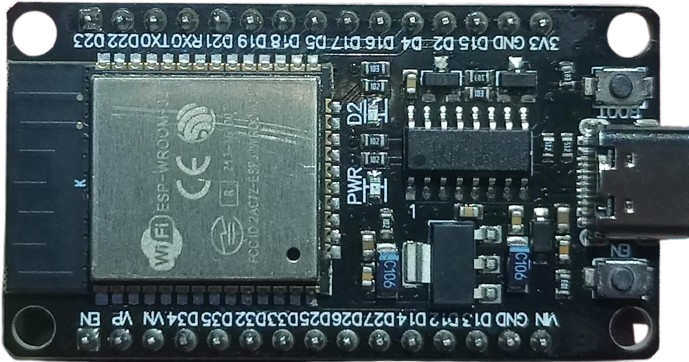

Image of ESP32 CH340
Cirkit Designer LogoDesign with ESP32 CH340 in Cirkit Designer

Introduction

The ESP32 CH340 is a versatile microcontroller module developed by Espressif Systems. It combines the powerful ESP32 microcontroller with the CH340 USB-to-serial converter, enabling seamless communication between the ESP32 and a computer via USB. The ESP32 is known for its dual-core processor, integrated Wi-Fi, Bluetooth capabilities, and extensive GPIO options, making it ideal for IoT, smart home, and embedded systems applications.

The CH340 chip simplifies USB connectivity, allowing users to program and debug the ESP32 with ease. This module is widely used in prototyping, wireless communication projects, and applications requiring low-power, high-performance microcontrollers.

Explore Projects Built with ESP32 CH340

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based Environmental Monitoring System with Water Flow Sensing
Image of Water: A project utilizing ESP32 CH340 in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to a DHT22 temperature and humidity sensor and a water flow sensor. The ESP32 reads environmental data from the DHT22 via a digital input pin (D33) and monitors water flow through the water flow sensor connected to another digital input pin (D23). The ESP32 is powered through its VIN pin, and both sensors are powered by the ESP32's 3V3 output, with common ground connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based USB and Battery-Powered Circuit
Image of woot: A project utilizing ESP32 CH340 in a practical application
This circuit features an ESP32 microcontroller powered by a 3.3V regulator, which in turn is powered by a 18650 lithium-ion battery through a charger module. The charger module is designed to charge the battery via a USB connection and also provides power to the regulator. Ground connections are shared among the ESP32, regulator, charger, and USB interfaces, establishing a common reference point for all components.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 and Logic Level Converter-Based Wi-Fi Controlled Interface
Image of Toshiba AC ESP32 devkit v1: A project utilizing ESP32 CH340 in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to a Bi-Directional Logic Level Converter, which facilitates voltage level shifting between the ESP32 and external components. The ESP32 is powered through its VIN pin via an alligator clip cable, and the logic level converter is connected to various pins on the ESP32 to manage different voltage levels for communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 Bluetooth-Controlled LED with Potentiometer and Pushbutton
Image of bluetooth remote: A project utilizing ESP32 CH340 in a practical application
This circuit features an ESP32 microcontroller that controls an LED via Bluetooth commands from an Android phone. It includes a rotary potentiometer for analog input and a pushbutton for digital input, both interfaced with the ESP32. The circuit is powered by a 5V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP32 CH340

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Water: A project utilizing ESP32 CH340 in a practical application
ESP32-Based Environmental Monitoring System with Water Flow Sensing
This circuit features an ESP32 Devkit V1 microcontroller connected to a DHT22 temperature and humidity sensor and a water flow sensor. The ESP32 reads environmental data from the DHT22 via a digital input pin (D33) and monitors water flow through the water flow sensor connected to another digital input pin (D23). The ESP32 is powered through its VIN pin, and both sensors are powered by the ESP32's 3V3 output, with common ground connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of woot: A project utilizing ESP32 CH340 in a practical application
ESP32-Based USB and Battery-Powered Circuit
This circuit features an ESP32 microcontroller powered by a 3.3V regulator, which in turn is powered by a 18650 lithium-ion battery through a charger module. The charger module is designed to charge the battery via a USB connection and also provides power to the regulator. Ground connections are shared among the ESP32, regulator, charger, and USB interfaces, establishing a common reference point for all components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Toshiba AC ESP32 devkit v1: A project utilizing ESP32 CH340 in a practical application
ESP32 and Logic Level Converter-Based Wi-Fi Controlled Interface
This circuit features an ESP32 Devkit V1 microcontroller connected to a Bi-Directional Logic Level Converter, which facilitates voltage level shifting between the ESP32 and external components. The ESP32 is powered through its VIN pin via an alligator clip cable, and the logic level converter is connected to various pins on the ESP32 to manage different voltage levels for communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of bluetooth remote: A project utilizing ESP32 CH340 in a practical application
ESP32 Bluetooth-Controlled LED with Potentiometer and Pushbutton
This circuit features an ESP32 microcontroller that controls an LED via Bluetooth commands from an Android phone. It includes a rotary potentiometer for analog input and a pushbutton for digital input, both interfaced with the ESP32. The circuit is powered by a 5V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • IoT devices and smart home automation
  • Wireless sensor networks
  • Wearable technology
  • Robotics and drones
  • Industrial automation and control systems
  • Prototyping and educational projects

Technical Specifications

Key Technical Details

Parameter Specification
Microcontroller ESP32 (dual-core Xtensa LX6 processor)
Clock Speed Up to 240 MHz
Flash Memory 4 MB (varies by module version)
SRAM 520 KB
Wireless Connectivity Wi-Fi 802.11 b/g/n, Bluetooth 4.2 (Classic + BLE)
USB-to-Serial Converter CH340
Operating Voltage 3.3V
Input Voltage (VIN) 5V (via USB or external power supply)
GPIO Pins Up to 34
ADC Channels 18 (12-bit resolution)
DAC Channels 2 (8-bit resolution)
Communication Interfaces UART, SPI, I2C, I2S, CAN, PWM
Power Consumption Ultra-low power (varies by mode)
Dimensions Varies by board design (e.g., DevKitC, NodeMCU)

Pin Configuration and Descriptions

Below is a typical pinout for an ESP32 CH340 development board. Note that pin availability may vary depending on the specific board design.

Pin Name Description
VIN Input voltage (5V)
3V3 3.3V output
GND Ground
EN Enable pin (active high)
IO0 GPIO0, used for boot mode selection
IO2 GPIO2, general-purpose I/O
IO4 GPIO4, general-purpose I/O
IO5 GPIO5, general-purpose I/O
IO12 GPIO12, general-purpose I/O
IO13 GPIO13, general-purpose I/O
IO14 GPIO14, general-purpose I/O
IO15 GPIO15, general-purpose I/O
IO16-IO39 Additional GPIO pins (varies by board)
TXD UART TX (serial communication)
RXD UART RX (serial communication)
ADC1-ADC2 Analog-to-digital converter channels
DAC1-DAC2 Digital-to-analog converter channels

Usage Instructions

How to Use the ESP32 CH340 in a Circuit

  1. Powering the Module:

    • Connect the module to a computer or USB power source using a micro-USB cable. The CH340 chip will handle USB-to-serial communication.
    • Alternatively, supply 5V to the VIN pin or 3.3V to the 3V3 pin.
  2. Programming the ESP32:

    • Install the CH340 driver on your computer (available for Windows, macOS, and Linux).
    • Use the Arduino IDE or Espressif's ESP-IDF to write and upload code to the ESP32.
    • Select the correct board (e.g., "ESP32 Dev Module") and COM port in the Arduino IDE.
  3. Connecting Peripherals:

    • Use the GPIO pins to connect sensors, actuators, or other peripherals.
    • Ensure that the voltage levels of connected devices are compatible with the ESP32's 3.3V logic.
  4. Boot Mode Selection:

    • To upload code, press and hold the "BOOT" button (connected to GPIO0) while pressing the "EN" (reset) button.

Important Considerations and Best Practices

  • Voltage Levels: Avoid applying voltages higher than 3.3V to the GPIO pins to prevent damage.
  • Power Supply: Use a stable power source to avoid unexpected resets or malfunctions.
  • Heat Management: The ESP32 may heat up during operation. Ensure proper ventilation or use a heatsink if necessary.
  • Driver Installation: Install the CH340 driver before connecting the module to your computer.

Example Code for Arduino IDE

Below is an example code to blink an LED connected to GPIO2:

// Blink an LED connected to GPIO2 on the ESP32 CH340 module

#define LED_PIN 2  // Define GPIO2 as the LED pin

void setup() {
  pinMode(LED_PIN, OUTPUT);  // Set GPIO2 as an output pin
}

void loop() {
  digitalWrite(LED_PIN, HIGH);  // Turn the LED on
  delay(1000);                  // Wait for 1 second
  digitalWrite(LED_PIN, LOW);   // Turn the LED off
  delay(1000);                  // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. ESP32 Not Detected by Computer:

    • Ensure the CH340 driver is installed correctly.
    • Try a different USB cable or port.
    • Verify that the board is powered on.
  2. Code Upload Fails:

    • Check the selected COM port and board in the Arduino IDE.
    • Press and hold the "BOOT" button while uploading code.
  3. Wi-Fi Connection Issues:

    • Verify the SSID and password in your code.
    • Ensure the router is within range and supports 2.4 GHz Wi-Fi.
  4. GPIO Pin Not Working:

    • Confirm the pin is not reserved for other functions (e.g., boot mode).
    • Check for wiring or connection issues.

FAQs

Q: Can I power the ESP32 CH340 with a battery?
A: Yes, you can use a 3.7V LiPo battery with a voltage regulator or a 5V power source connected to the VIN pin.

Q: What is the maximum current output of the GPIO pins?
A: Each GPIO pin can source or sink up to 12 mA. For higher currents, use an external transistor or relay.

Q: How do I reset the ESP32?
A: Press the "EN" button on the board to reset the microcontroller.

Q: Can I use the ESP32 CH340 with MicroPython?
A: Yes, the ESP32 supports MicroPython. Flash the MicroPython firmware using tools like esptool.py.

This concludes the documentation for the ESP32 CH340.
