How to Use DHT11 Sensor Module: Examples, Pinouts, and Specs

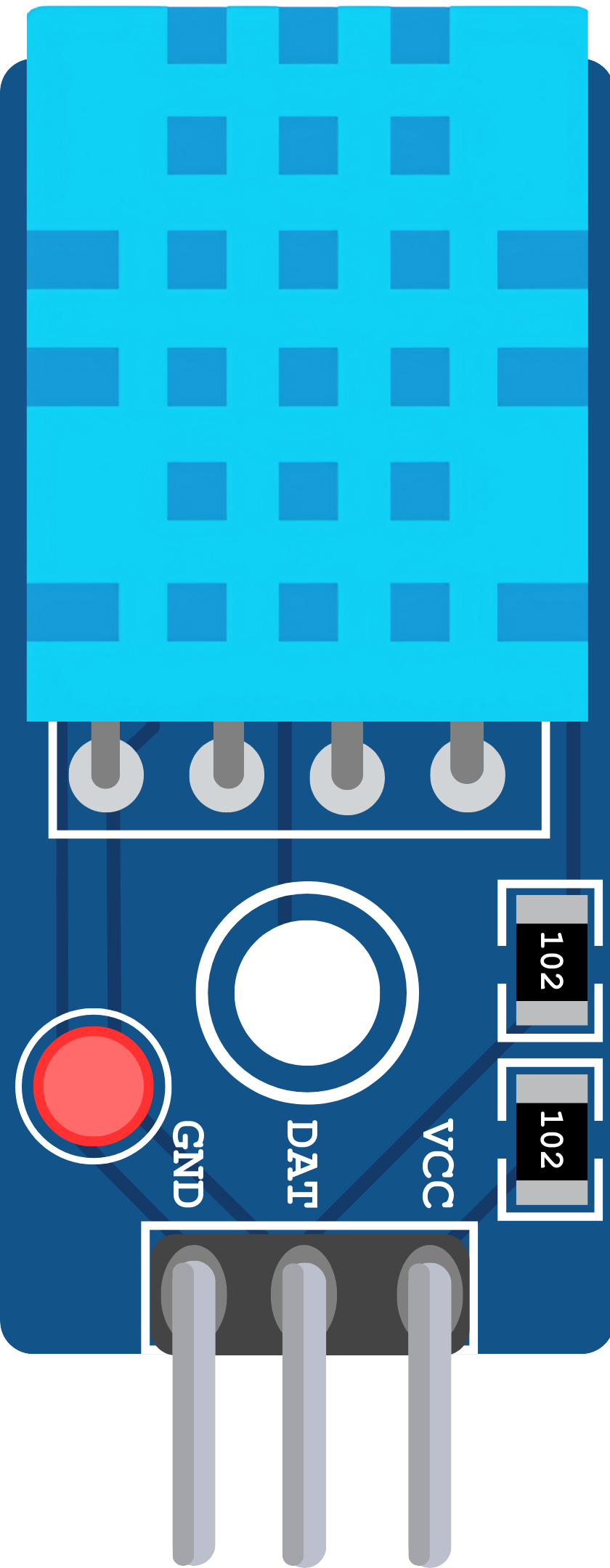

Image of DHT11 Sensor Module
Cirkit Designer LogoDesign with DHT11 Sensor Module in Cirkit Designer

Introduction

The DHT11 Sensor Module is a digital temperature and humidity sensor designed to provide accurate readings of environmental conditions. It features a calibrated digital signal output and communicates via a single-wire protocol, making it easy to interface with microcontrollers. The DHT11 is widely used in applications such as weather stations, HVAC systems, and home automation projects due to its reliability and simplicity.

Explore Projects Built with DHT11 Sensor Module

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino and ESP8266 Based Environmental Monitoring System with LoRa Communication
Image of MP50: A project utilizing DHT11 Sensor Module in a practical application
This circuit is a multi-sensor data acquisition system with wireless communication capabilities. It uses an Arduino 101 to interface with a DHT11 temperature and humidity sensor, an MQ2 gas sensor, a flow rate sensor, and a PH meter. The data collected from these sensors is transmitted via a LoRa Ra-02 SX1278 module, and the system can also communicate with an ESP8266 module for additional wireless functionality.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP8266 NodeMCU-Based Weather Monitoring Station with LCD Display
Image of IOT: A project utilizing DHT11 Sensor Module in a practical application
This is an environmental monitoring system that uses an ESP8266 NodeMCU to collect data from a DHT11 temperature and humidity sensor, an LDR light sensor, and a rain sensor. The data is displayed on a 16x2 LCD screen, interfaced through an I2C module for simplified communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP8266 NodeMCU with DHT11 Sensor for Temperature and Humidity Monitoring
Image of temperature and humidity sensore : A project utilizing DHT11 Sensor Module in a practical application
This circuit connects a DHT11 Humidity and Temperature Sensor to an ESP8266 NodeMCU microcontroller. The DHT11 sensor's data pin is interfaced with the D5 pin on the NodeMCU for digital signal communication, while both the sensor and the NodeMCU share a common ground (GND). The sensor is powered by the NodeMCU's VIN pin, which likely supplies the required voltage for the DHT11 to operate.
Cirkit Designer LogoOpen Project in Cirkit Designer
NodeMCU ESP8266 with DHT11 and MQ Gas Sensors for Environmental Monitoring
Image of air quality monitoring: A project utilizing DHT11 Sensor Module in a practical application
This circuit features a NodeMCU V3 ESP8266 microcontroller interfaced with an array of sensors for environmental monitoring. The KY-015 DHT11 sensor is connected for temperature and humidity readings, while the MQ-2 and MQ135 sensors are used for detecting various gases and air quality. The NodeMCU reads analog and digital signals from these sensors to process and potentially transmit environmental data.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with DHT11 Sensor Module

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of MP50: A project utilizing DHT11 Sensor Module in a practical application
Arduino and ESP8266 Based Environmental Monitoring System with LoRa Communication
This circuit is a multi-sensor data acquisition system with wireless communication capabilities. It uses an Arduino 101 to interface with a DHT11 temperature and humidity sensor, an MQ2 gas sensor, a flow rate sensor, and a PH meter. The data collected from these sensors is transmitted via a LoRa Ra-02 SX1278 module, and the system can also communicate with an ESP8266 module for additional wireless functionality.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of IOT: A project utilizing DHT11 Sensor Module in a practical application
ESP8266 NodeMCU-Based Weather Monitoring Station with LCD Display
This is an environmental monitoring system that uses an ESP8266 NodeMCU to collect data from a DHT11 temperature and humidity sensor, an LDR light sensor, and a rain sensor. The data is displayed on a 16x2 LCD screen, interfaced through an I2C module for simplified communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of temperature and humidity sensore : A project utilizing DHT11 Sensor Module in a practical application
ESP8266 NodeMCU with DHT11 Sensor for Temperature and Humidity Monitoring
This circuit connects a DHT11 Humidity and Temperature Sensor to an ESP8266 NodeMCU microcontroller. The DHT11 sensor's data pin is interfaced with the D5 pin on the NodeMCU for digital signal communication, while both the sensor and the NodeMCU share a common ground (GND). The sensor is powered by the NodeMCU's VIN pin, which likely supplies the required voltage for the DHT11 to operate.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of air quality monitoring: A project utilizing DHT11 Sensor Module in a practical application
NodeMCU ESP8266 with DHT11 and MQ Gas Sensors for Environmental Monitoring
This circuit features a NodeMCU V3 ESP8266 microcontroller interfaced with an array of sensors for environmental monitoring. The KY-015 DHT11 sensor is connected for temperature and humidity readings, while the MQ-2 and MQ135 sensors are used for detecting various gases and air quality. The NodeMCU reads analog and digital signals from these sensors to process and potentially transmit environmental data.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

The DHT11 Sensor Module has the following key technical specifications:

Parameter Value
Operating Voltage 3.3V to 5.5V
Operating Current 0.3mA (measuring), 60µA (standby)
Temperature Range 0°C to 50°C
Temperature Accuracy ±2°C
Humidity Range 20% to 90% RH
Humidity Accuracy ±5% RH
Sampling Period ≥1 second
Communication Protocol Single-wire

Pin Configuration and Descriptions

The DHT11 Sensor Module typically has three or four pins, depending on the module design. Below is the pin configuration:

Pin Name Description
1 VCC Power supply pin. Connect to 3.3V or 5V.
2 DATA Digital data pin. Used for communication with the microcontroller.
3 NC (or GND) Not connected (on some modules) or Ground pin. Connect to GND if labeled as GND.
4 GND Ground pin. Connect to the ground of the power supply.

Note: Some DHT11 modules include a pull-up resistor on the DATA pin. If your module does not, you may need to add an external 10kΩ pull-up resistor.

Usage Instructions

How to Use the DHT11 in a Circuit

  1. Power the Sensor: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to the ground.
  2. Connect the DATA Pin: Attach the DATA pin to a digital input pin on your microcontroller. If required, add a 10kΩ pull-up resistor between the DATA pin and VCC.
  3. Timing Considerations: The DHT11 requires a minimum sampling period of 1 second. Ensure your code does not poll the sensor more frequently than this.

Example: Connecting the DHT11 to an Arduino UNO

Below is an example of how to use the DHT11 with an Arduino UNO. This code reads temperature and humidity data and displays it on the Serial Monitor.

Arduino Code

#include "DHT.h"  // Include the DHT library

#define DHTPIN 2    // Pin connected to the DATA pin of the DHT11
#define DHTTYPE DHT11  // Define the sensor type (DHT11)

DHT dht(DHTPIN, DHTTYPE);  // Initialize the DHT sensor

void setup() {
  Serial.begin(9600);  // Start the Serial Monitor at 9600 baud
  Serial.println("DHT11 Sensor Initialization...");
  dht.begin();  // Initialize the DHT sensor
}

void loop() {
  delay(2000);  // Wait 2 seconds between readings

  float humidity = dht.readHumidity();  // Read humidity
  float temperature = dht.readTemperature();  // Read temperature in Celsius

  // Check if the readings are valid
  if (isnan(humidity) || isnan(temperature)) {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }

  // Print the results to the Serial Monitor
  Serial.print("Humidity: ");
  Serial.print(humidity);
  Serial.print(" %\t");
  Serial.print("Temperature: ");
  Serial.print(temperature);
  Serial.println(" °C");
}

Important Considerations and Best Practices

  • Sampling Period: Do not poll the sensor more frequently than once per second to ensure accurate readings.
  • Environmental Factors: Avoid placing the sensor in direct sunlight or near heat sources, as this can affect accuracy.
  • Wiring Length: Keep the wiring between the sensor and the microcontroller as short as possible to reduce signal degradation.
  • Pull-Up Resistor: Ensure a pull-up resistor is used on the DATA pin if your module does not include one.

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Data or Incorrect Readings:

    • Ensure the sensor is powered correctly (3.3V to 5V).
    • Verify the pull-up resistor is connected to the DATA pin if required.
    • Check the wiring and ensure the DATA pin is connected to the correct microcontroller pin.
  2. "Failed to read from DHT sensor!" Error:

    • Ensure the DHT library is installed and included in your Arduino IDE.
    • Verify the sensor type (DHT11) is correctly defined in the code.
    • Check for loose or incorrect connections.
  3. Inconsistent Readings:

    • Ensure the sensor is not exposed to rapid temperature or humidity changes.
    • Avoid using the sensor in environments outside its specified operating range.

FAQs

Q: Can the DHT11 measure negative temperatures?
A: No, the DHT11 can only measure temperatures in the range of 0°C to 50°C.

Q: What is the maximum cable length for the DHT11?
A: The recommended maximum cable length is 20 meters. However, for longer distances, use a lower pull-up resistor value (e.g., 4.7kΩ) to maintain signal integrity.

Q: Can I use the DHT11 with a 3.3V microcontroller?
A: Yes, the DHT11 operates within a voltage range of 3.3V to 5.5V, making it compatible with 3.3V microcontrollers.

Q: How do I improve the accuracy of the DHT11?
A: Place the sensor in a stable environment, away from heat sources, direct sunlight, or high humidity fluctuations. For higher accuracy, consider using the DHT22 sensor, which offers better precision.
