How to Use Moteur 25GA370 12V: Examples, Pinouts, and Specs

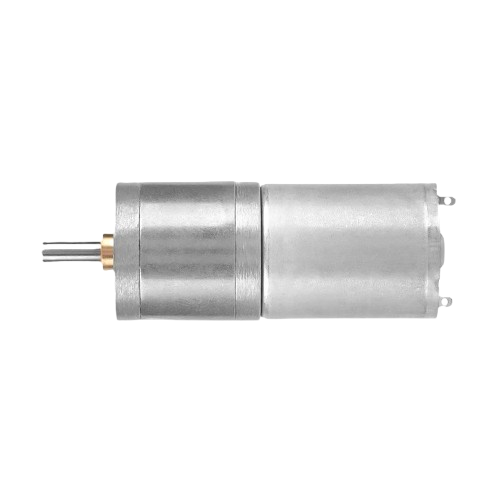

The Moteur 25GA370 12V is a compact and efficient 12V DC motor designed for a wide range of applications. Its small size and high torque output make it ideal for use in robotics, small machinery, and automation systems. This motor is particularly valued for its reliability, durability, and smooth operation, even under demanding conditions.

• Robotics (e.g., mobile robots, robotic arms)
• Small conveyor systems
• Automated mechanisms
• DIY electronics projects
• Precision machinery

Below are the key technical details of the Moteur 25GA370 12V:

The Moteur 25GA370 12V typically has two terminals for electrical connections:

Note: The motor's direction of rotation can be reversed by swapping the polarity of the connections.

1. Power Supply: Connect the motor to a 12V DC power source. Ensure the power supply can provide sufficient current (at least 2.5A for stall conditions).
2. Polarity: Connect Pin 1 to the positive terminal of the power supply and Pin 2 to the ground. Reversing the polarity will change the motor's rotation direction.
3. Motor Driver: For precise control (e.g., speed or direction), use a motor driver such as the L298N or an H-bridge circuit. This is especially important when interfacing with microcontrollers like Arduino.
4. Load Considerations: Avoid exceeding the motor's rated torque to prevent overheating or damage.

• Current Limiting: Use a motor driver or current-limiting circuit to protect the motor from excessive current during stall conditions.
• Heat Dissipation: Ensure proper ventilation or heat sinking if the motor operates continuously under high load.
• Power Supply: Use a regulated 12V DC power supply to avoid voltage fluctuations that could damage the motor.
• Noise Suppression: Add capacitors (e.g., 0.1 µF) across the motor terminals to reduce electrical noise.

Below is an example of how to control the Moteur 25GA370 12V using an Arduino UNO and an L298N motor driver:

// Example: Controlling Moteur 25GA370 12V with Arduino and L298N

// Define motor control pins
const int IN1 = 9;  // L298N IN1 pin
const int IN2 = 8;  // L298N IN2 pin
const int ENA = 10; // L298N ENA pin (PWM for speed control)

void setup() {
  // Set motor control pins as outputs
  pinMode(IN1, OUTPUT);
  pinMode(IN2, OUTPUT);
  pinMode(ENA, OUTPUT);
}

void loop() {
  // Rotate motor forward
  digitalWrite(IN1, HIGH);  // Set IN1 high
  digitalWrite(IN2, LOW);   // Set IN2 low
  analogWrite(ENA, 150);    // Set speed (0-255)

  delay(3000); // Run motor for 3 seconds

  // Rotate motor backward
  digitalWrite(IN1, LOW);   // Set IN1 low
  digitalWrite(IN2, HIGH);  // Set IN2 high
  analogWrite(ENA, 150);    // Set speed (0-255)

  delay(3000); // Run motor for 3 seconds

  // Stop motor
  digitalWrite(IN1, LOW);   // Set IN1 low
  digitalWrite(IN2, LOW);   // Set IN2 low
  analogWrite(ENA, 0);      // Set speed to 0

  delay(3000); // Wait for 3 seconds before repeating
}

Note: Adjust the analogWrite value to control the motor speed. A value of 0 stops the motor, while 255 runs it at full speed.

1. Motor Does Not Spin

   • Cause: Insufficient power supply or incorrect wiring.
   • Solution: Verify the power supply voltage and current. Check the wiring for proper connections.

2. Motor Spins in the Wrong Direction

   • Cause: Polarity of the connections is reversed.
   • Solution: Swap the connections to the motor terminals.

3. Motor Overheats

   • Cause: Excessive load or prolonged stall conditions.
   • Solution: Reduce the load or use a current-limiting circuit. Avoid stalling the motor.

4. Electrical Noise Interference

   • Cause: Motor generates electrical noise during operation.
   • Solution: Add capacitors (e.g., 0.1 µF) across the motor terminals to suppress noise.

5. Motor Vibrates Excessively

   • Cause: Misalignment or unbalanced load.
   • Solution: Ensure the motor is securely mounted and the load is balanced.

• Can I use a lower voltage to power the motor?

  • Yes, but the motor's speed and torque will decrease proportionally. Avoid going below 6V for reliable operation.

• What is the maximum load the motor can handle?

  • The motor can handle up to ~2.5 kg.cm of torque, but operating near this limit for extended periods may cause overheating.

• Can I control the motor without a motor driver?

  • Yes, but a motor driver is recommended for precise speed and direction control, especially when using a microcontroller.

• Is the motor waterproof?

  • No, the Moteur 25GA370 12V is not waterproof. Avoid exposing it to water or moisture.

By following this documentation, you can effectively integrate the Moteur 25GA370 12V into your projects and ensure optimal performance.
