How to Use MPU6050: Examples, Pinouts, and Specs

The MPU6050 is a 6-axis motion tracking device that combines a 3-axis gyroscope and a 3-axis accelerometer on a single chip. This compact and versatile sensor is widely used in applications requiring motion sensing and orientation detection. Its ability to measure angular velocity and linear acceleration makes it an essential component in robotics, drones, mobile devices, and gaming controllers. Additionally, the MPU6050 features an onboard Digital Motion Processor (DMP) for advanced motion processing.

• Supply Voltage: 2.375V to 3.46V (3.3V typical)
• Communication Interface: I2C (up to 400kHz)
• Gyroscope Range: ±250, ±500, ±1000, ±2000 degrees/second
• Accelerometer Range: ±2g, ±4g, ±8g, ±16g
• Operating Temperature: -40°C to +85°C
• Power Consumption: 3.9mA (typical in active mode)
• Package: 24-pin QFN

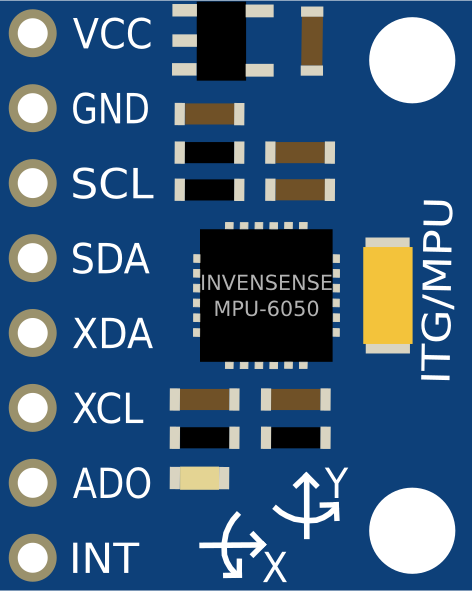

The MPU6050 has 8 primary pins for operation. Below is the pinout description:

1. Power Supply: Connect the VCC pin to a 3.3V power source and the GND pin to ground.
2. I2C Communication: Connect the SCL and SDA pins to the corresponding I2C pins on your microcontroller. Use pull-up resistors (typically 4.7kΩ) on the SCL and SDA lines if not already present.
3. Address Selection: Set the AD0 pin to GND for the default I2C address 0x68, or to VCC for the alternate address 0x69.
4. Interrupt Pin: Optionally, connect the INT pin to a digital input on your microcontroller to handle interrupts.

• Use decoupling capacitors (e.g., 0.1µF) near the VCC pin to stabilize the power supply.
• Ensure the I2C bus voltage matches the MPU6050's operating voltage (3.3V).
• Avoid excessive vibrations or shocks to the sensor, as they may affect readings.
• Calibrate the sensor for accurate measurements, especially in applications requiring high precision.

Below is an example of how to interface the MPU6050 with an Arduino UNO using the I2C protocol:

#include <Wire.h>

// MPU6050 I2C address (default is 0x68 when AD0 is connected to GND)
const int MPU6050_ADDR = 0x68;

// MPU6050 register addresses
const int PWR_MGMT_1 = 0x6B; // Power management register
const int ACCEL_XOUT_H = 0x3B; // Accelerometer X-axis high byte

void setup() {
  Wire.begin(); // Initialize I2C communication
  Serial.begin(9600); // Initialize serial communication for debugging

  // Wake up the MPU6050 (it starts in sleep mode)
  Wire.beginTransmission(MPU6050_ADDR);
  Wire.write(PWR_MGMT_1); // Access power management register
  Wire.write(0); // Set to 0 to wake up the sensor
  Wire.endTransmission();

  Serial.println("MPU6050 initialized");
}

void loop() {
  // Request accelerometer data from the MPU6050
  Wire.beginTransmission(MPU6050_ADDR);
  Wire.write(ACCEL_XOUT_H); // Start reading from ACCEL_XOUT_H register
  Wire.endTransmission(false); // Send repeated start condition
  Wire.requestFrom(MPU6050_ADDR, 6); // Request 6 bytes (X, Y, Z high and low)

  if (Wire.available() == 6) {
    int16_t accelX = (Wire.read() << 8) | Wire.read(); // Combine high and low bytes
    int16_t accelY = (Wire.read() << 8) | Wire.read();
    int16_t accelZ = (Wire.read() << 8) | Wire.read();

    // Print accelerometer values to the serial monitor
    Serial.print("Accel X: "); Serial.print(accelX);
    Serial.print(" | Accel Y: "); Serial.print(accelY);
    Serial.print(" | Accel Z: "); Serial.println(accelZ);
  }

  delay(500); // Wait 500ms before the next reading
}

1. No Data from the Sensor:

   • Ensure the MPU6050 is powered correctly (check VCC and GND connections).
   • Verify the I2C address (default is 0x68 unless AD0 is connected to VCC).
   • Check the pull-up resistors on the I2C lines.

2. Inaccurate Readings:

   • Perform sensor calibration to account for offsets and biases.
   • Minimize external vibrations and ensure the sensor is securely mounted.

3. I2C Communication Errors:

   • Confirm the SCL and SDA connections are correct.
   • Ensure the I2C bus speed does not exceed 400kHz.

• Q: Can the MPU6050 operate at 5V?
  A: No, the MPU6050 operates at a maximum of 3.46V. Use a voltage regulator or level shifter if interfacing with a 5V system.

• Q: How do I calibrate the MPU6050?
  A: Calibration involves measuring and compensating for offsets in the accelerometer and gyroscope readings. Libraries like MPU6050 or MPU6050_DMP for Arduino often include calibration functions.

• Q: Can I connect multiple MPU6050 sensors to the same I2C bus?
  A: Yes, but each sensor must have a unique I2C address. Use the AD0 pin to set different addresses (0x68 or 0x69).

By following this documentation, you can effectively integrate the MPU6050 into your projects for reliable motion sensing and orientation detection.
