How to Use VS1033: Examples, Pinouts, and Specs

The VS1033, manufactured by VLSI Solution, is a high-quality audio decoder chip designed for embedded systems. It supports a wide range of audio formats, including MP3, WAV, WMA, and more. The chip integrates advanced digital signal processing (DSP) capabilities and a built-in digital-to-analog converter (DAC), making it an ideal choice for audio playback applications. Its compact design and versatile functionality make it suitable for use in portable media players, audio streaming devices, and other embedded audio systems.

• Portable media players
• Audio streaming devices
• Embedded systems requiring audio playback
• Digital jukeboxes
• Automotive audio systems

• Supported Audio Formats: MP3, WAV, WMA, Ogg Vorbis, AAC
• Supply Voltage: 2.7V to 3.6V
• Current Consumption: ~30 mA (typical during playback)
• DAC Resolution: 18-bit
• Audio Output: Stereo, line-level
• Clock Frequency: 12.288 MHz (typical)
• Interface: Serial Peripheral Interface (SPI)
• Package: LQFP-48

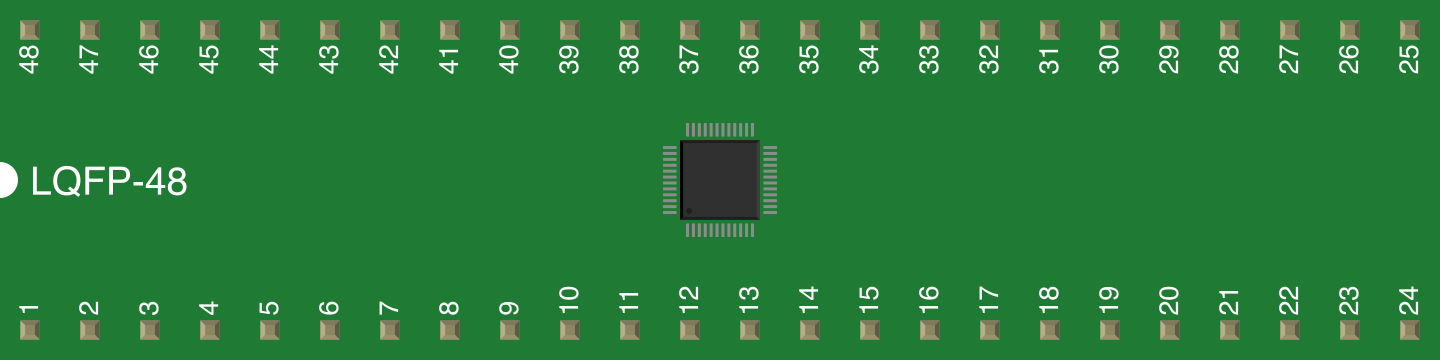

The VS1033 comes in a 48-pin LQFP package. Below is a summary of the key pins and their functions:

For a complete pinout, refer to the VS1033 datasheet provided by VLSI Solution.

1. Power Supply: Connect the VDD pin to a 3.3V regulated power supply and GND to ground.
2. Clock Source: Attach a 12.288 MHz crystal oscillator to the XTALI and XTALO pins, along with the required capacitors.
3. SPI Communication: Use the SPI interface (XCS, XDCS, SCLK, SI, SO) to communicate with the chip. Ensure proper pull-up or pull-down resistors as needed.
4. Audio Output: Connect the LEFT and RIGHT pins to an audio amplifier or directly to headphones. Use the GBUF pin for headphone ground.
5. Data Input: Send audio data to the chip via the SPI interface. Monitor the DREQ pin to determine when the chip is ready to receive more data.
6. Reset: Use the RESET pin to initialize the chip during power-up or to recover from errors.

• Decoupling Capacitors: Place decoupling capacitors (e.g., 0.1 µF) close to the VDD pin to reduce noise.
• Audio Filtering: Use external low-pass filters if required to improve audio quality.
• SPI Speed: Ensure the SPI clock speed does not exceed the chip's maximum supported rate.
• Heat Dissipation: Although the VS1033 has low power consumption, ensure proper ventilation or heat sinking in high-temperature environments.

Below is an example of how to interface the VS1033 with an Arduino UNO for basic MP3 playback:

#include <SPI.h>

// Pin definitions
#define VS_XCS 10   // Control chip select
#define VS_XDCS 9   // Data chip select
#define VS_DREQ 8   // Data request
#define VS_RESET 7  // Reset pin

void setup() {
  // Initialize SPI
  SPI.begin();
  pinMode(VS_XCS, OUTPUT);
  pinMode(VS_XDCS, OUTPUT);
  pinMode(VS_DREQ, INPUT);
  pinMode(VS_RESET, OUTPUT);

  // Reset the VS1033
  digitalWrite(VS_RESET, LOW);
  delay(100);
  digitalWrite(VS_RESET, HIGH);

  // Initialize VS1033 (example: set volume)
  setVolume(0x20, 0x20); // Left and right channel volume
}

void loop() {
  // Example: Send MP3 data to VS1033
  if (digitalRead(VS_DREQ) == HIGH) {
    sendMP3Data();
  }
}

void setVolume(uint8_t left, uint8_t right) {
  // Send volume control command to VS1033
  digitalWrite(VS_XCS, LOW);
  SPI.transfer(0x02); // Write command
  SPI.transfer(0x0B); // Volume register
  SPI.transfer(left); // Left channel volume
  SPI.transfer(right); // Right channel volume
  digitalWrite(VS_XCS, HIGH);
}

void sendMP3Data() {
  // Example function to send MP3 data
  digitalWrite(VS_XDCS, LOW);
  for (int i = 0; i < 32; i++) {
    SPI.transfer(0xFF); // Replace with actual MP3 data
  }
  digitalWrite(VS_XDCS, HIGH);
}

1. No Audio Output:

   • Ensure the audio output pins (LEFT, RIGHT, GBUF) are properly connected.
   • Verify that the DAC is enabled and configured correctly.
   • Check the power supply voltage and decoupling capacitors.

2. SPI Communication Fails:

   • Confirm that the SPI clock speed is within the supported range.
   • Verify the connections for XCS, XDCS, SCLK, SI, and SO.
   • Ensure the DREQ pin is monitored to avoid sending data when the chip is not ready.

3. Distorted Audio:

   • Check for proper grounding and shielding to reduce noise.
   • Use external low-pass filters if necessary.

4. Chip Does Not Respond:

   • Verify the RESET pin is toggled during initialization.
   • Check the crystal oscillator and ensure it is functioning correctly.

Q: Can the VS1033 decode FLAC files?
A: No, the VS1033 does not support FLAC decoding. It supports MP3, WAV, WMA, Ogg Vorbis, and AAC formats.

Q: What is the maximum SPI clock speed supported?
A: The VS1033 supports SPI clock speeds up to 5 MHz.

Q: Can I use the VS1033 with a 5V microcontroller?
A: Yes, but you must use level shifters or voltage dividers to interface the 5V logic with the 3.3V logic of the VS1033.

Q: Does the VS1033 support recording?
A: No, the VS1033 is designed for audio playback only. For recording functionality, consider other chips like the VS1053.
