How to Use Module Converter Keypad Matrix 4x4 to I2C: Examples, Pinouts, and Specs

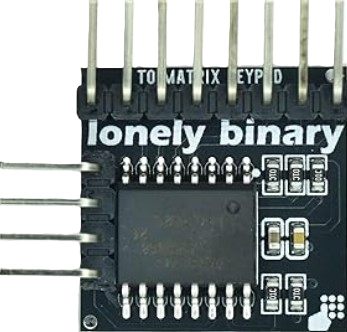

Image of Module Converter Keypad Matrix 4x4 to I2C
Cirkit Designer LogoDesign with Module Converter Keypad Matrix 4x4 to I2C in Cirkit Designer

Introduction

The Module Converter Keypad Matrix 4x4 to I2C is a versatile electronic component designed to simplify the process of interfacing a 4x4 matrix keypad with microcontrollers. By converting the keypad's row-column signals into I2C communication, this module reduces the number of GPIO pins required and streamlines the process of reading key presses. It is particularly useful in applications where GPIO pins are limited or where multiple devices need to communicate over the I2C bus.

Explore Projects Built with Module Converter Keypad Matrix 4x4 to I2C

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO 4x4 Keypad Input Display on 16x2 I2C LCD
Image of Arduino Uno - Keypad/LCD (Sim-C): A project utilizing Module Converter Keypad Matrix 4x4 to I2C in a practical application
This circuit interfaces a 4x4 keypad with an Arduino UNO to capture user input, which is then displayed on a 16x2 I2C LCD. The keypad is connected to the digital pins D2 to D9 of the Arduino, while the LCD is connected via the I2C interface (SDA and SCL pins).
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560-Based Smart Home Control System with LCD Display and Flame Sensor
Image of Copy of schoolproject (1): A project utilizing Module Converter Keypad Matrix 4x4 to I2C in a practical application
This circuit is a multi-functional embedded system featuring an Arduino Mega 2560 microcontroller that interfaces with a 4x4 membrane keypad, a 20x4 I2C LCD, an 8x8 LED matrix, a DS3231 RTC module, a passive buzzer, and a KY-026 flame sensor. The system is powered by a 5V PSU and is designed to provide real-time clock functionality, user input via the keypad, visual output on the LCD and LED matrix, and flame detection with an audible alert.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano-Based Dual 4x4 Keypad Interface with LCD Display and NRF24L01 Wireless Communication
Image of Sumit-radio-Reciver: A project utilizing Module Converter Keypad Matrix 4x4 to I2C in a practical application
This circuit features an Arduino Nano microcontroller interfaced with two 4x4 membrane matrix keypads, an NRF24L01 wireless module, and a 20x4 I2C LCD display. The keypads are connected through resistors to the Arduino for input detection, while the NRF24L01 module enables wireless communication, and the LCD display provides visual output. The setup and loop functions in the Arduino code are placeholders for further development.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Based I2C LCD Calculator with 4x4 Keypad Interface
Image of Калькулятор: A project utilizing Module Converter Keypad Matrix 4x4 to I2C in a practical application
This circuit features an Arduino UNO connected to a 4x4 keypad and a 16x2 I2C LCD display. The Arduino is programmed to function as a calculator, with the keypad serving as the input interface and the LCD displaying the calculations and results. The I2C communication protocol is used to interface with the LCD, while the keypad is directly connected to the digital and analog pins of the Arduino.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Module Converter Keypad Matrix 4x4 to I2C

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Arduino Uno - Keypad/LCD (Sim-C): A project utilizing Module Converter Keypad Matrix 4x4 to I2C in a practical application
Arduino UNO 4x4 Keypad Input Display on 16x2 I2C LCD
This circuit interfaces a 4x4 keypad with an Arduino UNO to capture user input, which is then displayed on a 16x2 I2C LCD. The keypad is connected to the digital pins D2 to D9 of the Arduino, while the LCD is connected via the I2C interface (SDA and SCL pins).
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of schoolproject (1): A project utilizing Module Converter Keypad Matrix 4x4 to I2C in a practical application
Arduino Mega 2560-Based Smart Home Control System with LCD Display and Flame Sensor
This circuit is a multi-functional embedded system featuring an Arduino Mega 2560 microcontroller that interfaces with a 4x4 membrane keypad, a 20x4 I2C LCD, an 8x8 LED matrix, a DS3231 RTC module, a passive buzzer, and a KY-026 flame sensor. The system is powered by a 5V PSU and is designed to provide real-time clock functionality, user input via the keypad, visual output on the LCD and LED matrix, and flame detection with an audible alert.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Sumit-radio-Reciver: A project utilizing Module Converter Keypad Matrix 4x4 to I2C in a practical application
Arduino Nano-Based Dual 4x4 Keypad Interface with LCD Display and NRF24L01 Wireless Communication
This circuit features an Arduino Nano microcontroller interfaced with two 4x4 membrane matrix keypads, an NRF24L01 wireless module, and a 20x4 I2C LCD display. The keypads are connected through resistors to the Arduino for input detection, while the NRF24L01 module enables wireless communication, and the LCD display provides visual output. The setup and loop functions in the Arduino code are placeholders for further development.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Калькулятор: A project utilizing Module Converter Keypad Matrix 4x4 to I2C in a practical application
Arduino UNO Based I2C LCD Calculator with 4x4 Keypad Interface
This circuit features an Arduino UNO connected to a 4x4 keypad and a 16x2 I2C LCD display. The Arduino is programmed to function as a calculator, with the keypad serving as the input interface and the LCD displaying the calculations and results. The I2C communication protocol is used to interface with the LCD, while the keypad is directly connected to the digital and analog pins of the Arduino.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Embedded systems requiring keypad input (e.g., password entry, menu navigation)
  • Home automation systems
  • Security systems and access control
  • Industrial control panels
  • Prototyping and educational projects

Technical Specifications

Below are the key technical details of the module:

Parameter Value
Operating Voltage 3.3V - 5V
Communication Protocol I2C
Default I2C Address 0x20 (modifiable via jumpers)
Keypad Compatibility 4x4 matrix keypad
Dimensions 30mm x 25mm x 10mm
Operating Temperature -20°C to 70°C

Pin Configuration and Descriptions

The module has the following pinout:

Pin Name Description
VCC Power supply input (3.3V - 5V)
GND Ground connection
SDA I2C data line
SCL I2C clock line
ADDR Optional pin to modify the I2C address (connect to GND or VCC for address change)
ROW1-ROW4 Connections for the keypad's row pins
COL1-COL4 Connections for the keypad's column pins

Usage Instructions

How to Use the Module in a Circuit

  1. Connect the Keypad: Attach the 4x4 matrix keypad to the module's ROW1-ROW4 and COL1-COL4 pins. Ensure the connections match the keypad's pinout.
  2. Power the Module: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to ground.
  3. I2C Connection: Connect the SDA and SCL pins to the corresponding I2C pins on your microcontroller. For an Arduino UNO, connect SDA to A4 and SCL to A5.
  4. Address Configuration (Optional): If multiple I2C devices are used, modify the module's I2C address by connecting the ADDR pin to GND or VCC.

Important Considerations and Best Practices

  • Ensure the I2C pull-up resistors are present on the bus. If not, add 4.7kΩ resistors between SDA/SCL and VCC.
  • Avoid long wires for I2C connections to minimize signal degradation.
  • Verify the keypad's pinout before connecting it to the module to prevent incorrect wiring.
  • Use a logic level converter if interfacing with a 3.3V microcontroller while powering the module at 5V.

Example Code for Arduino UNO

Below is an example Arduino sketch to read key presses from the module:

#include <Wire.h> // Include the Wire library for I2C communication

#define I2C_ADDRESS 0x20 // Default I2C address of the module

void setup() {
  Wire.begin(); // Initialize I2C communication
  Serial.begin(9600); // Start serial communication for debugging
  Serial.println("4x4 Keypad I2C Module Test");
}

void loop() {
  Wire.requestFrom(I2C_ADDRESS, 1); // Request 1 byte from the module

  if (Wire.available()) {
    byte key = Wire.read(); // Read the key press data
    if (key != 0) { // Check if a key is pressed
      Serial.print("Key Pressed: ");
      Serial.println(key, HEX); // Print the key value in hexadecimal
    }
  }

  delay(100); // Small delay to avoid flooding the I2C bus
}

Explanation of the Code

  • The Wire.begin() function initializes the I2C communication.
  • The Wire.requestFrom() function requests data from the module.
  • The Wire.read() function retrieves the key press data. Each key is represented by a unique hexadecimal value.

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Key Press Detected

    • Cause: Incorrect wiring between the keypad and the module.
    • Solution: Double-check the connections and ensure the keypad's pinout matches the module's ROW and COL pins.
  2. I2C Communication Failure

    • Cause: Missing or incorrect pull-up resistors on the I2C lines.
    • Solution: Add 4.7kΩ pull-up resistors between SDA/SCL and VCC.
  3. Multiple Devices on the Same I2C Address

    • Cause: Address conflict with another I2C device.
    • Solution: Modify the module's I2C address using the ADDR pin.
  4. Unstable or Noisy Keypad Input

    • Cause: Poor connections or long wires.
    • Solution: Use shorter wires and ensure secure connections.

FAQs

Q: Can I use this module with a 3x4 keypad?
A: Yes, but only the first three columns and four rows will be functional. Leave the unused column pin unconnected.

Q: How do I change the I2C address?
A: Connect the ADDR pin to GND or VCC to select a different address. Refer to the module's datasheet for the exact address mapping.

Q: What happens if I press multiple keys simultaneously?
A: The module may not correctly detect multiple simultaneous key presses due to the nature of matrix keypads. Avoid pressing multiple keys at once.

Q: Is this module compatible with Raspberry Pi?
A: Yes, the module can be used with Raspberry Pi via its I2C interface. Ensure the I2C bus is enabled in the Raspberry Pi configuration.

This concludes the documentation for the Module Converter Keypad Matrix 4x4 to I2C.
